Technical Data

Engine Technical Data

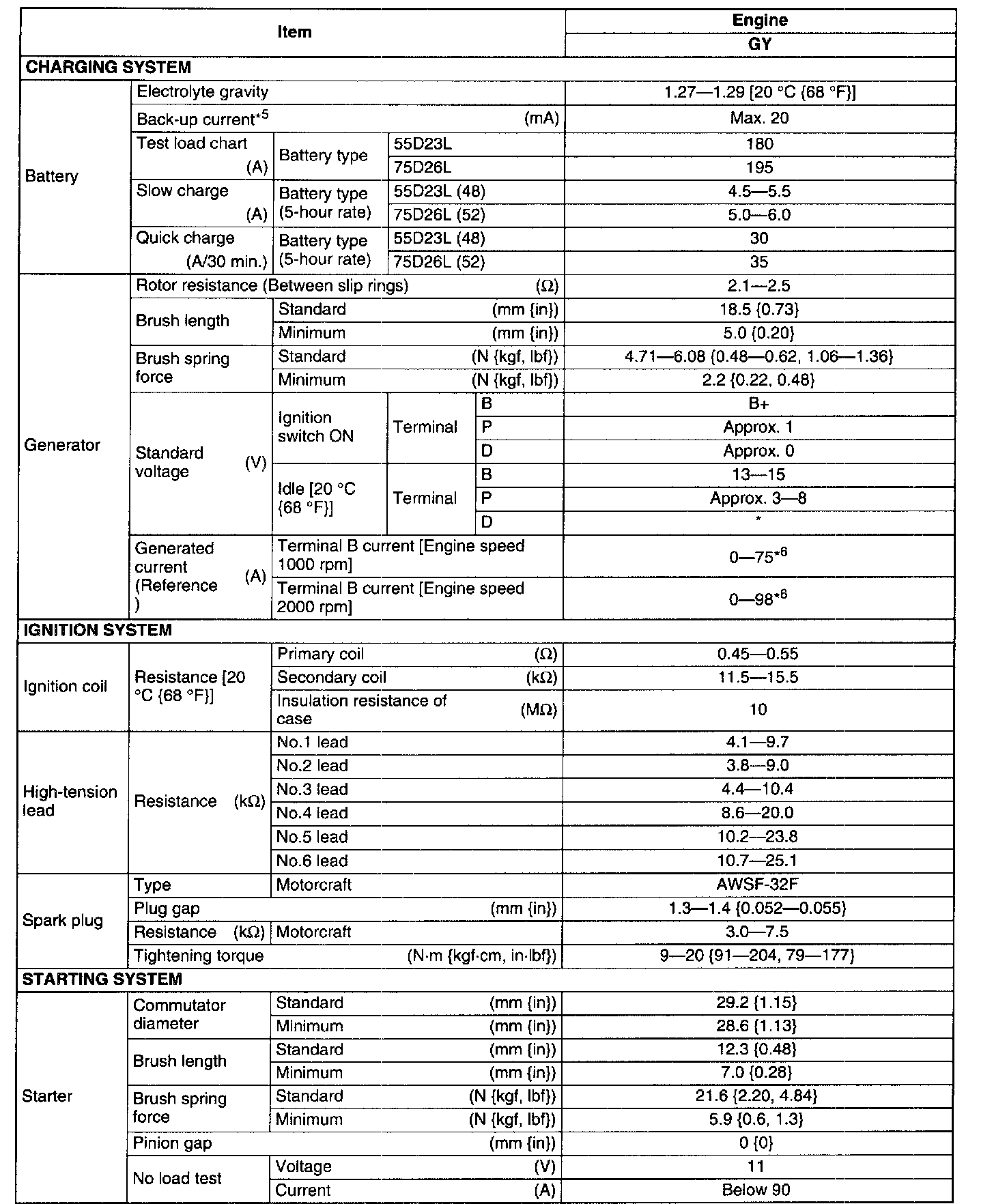

Part 1:

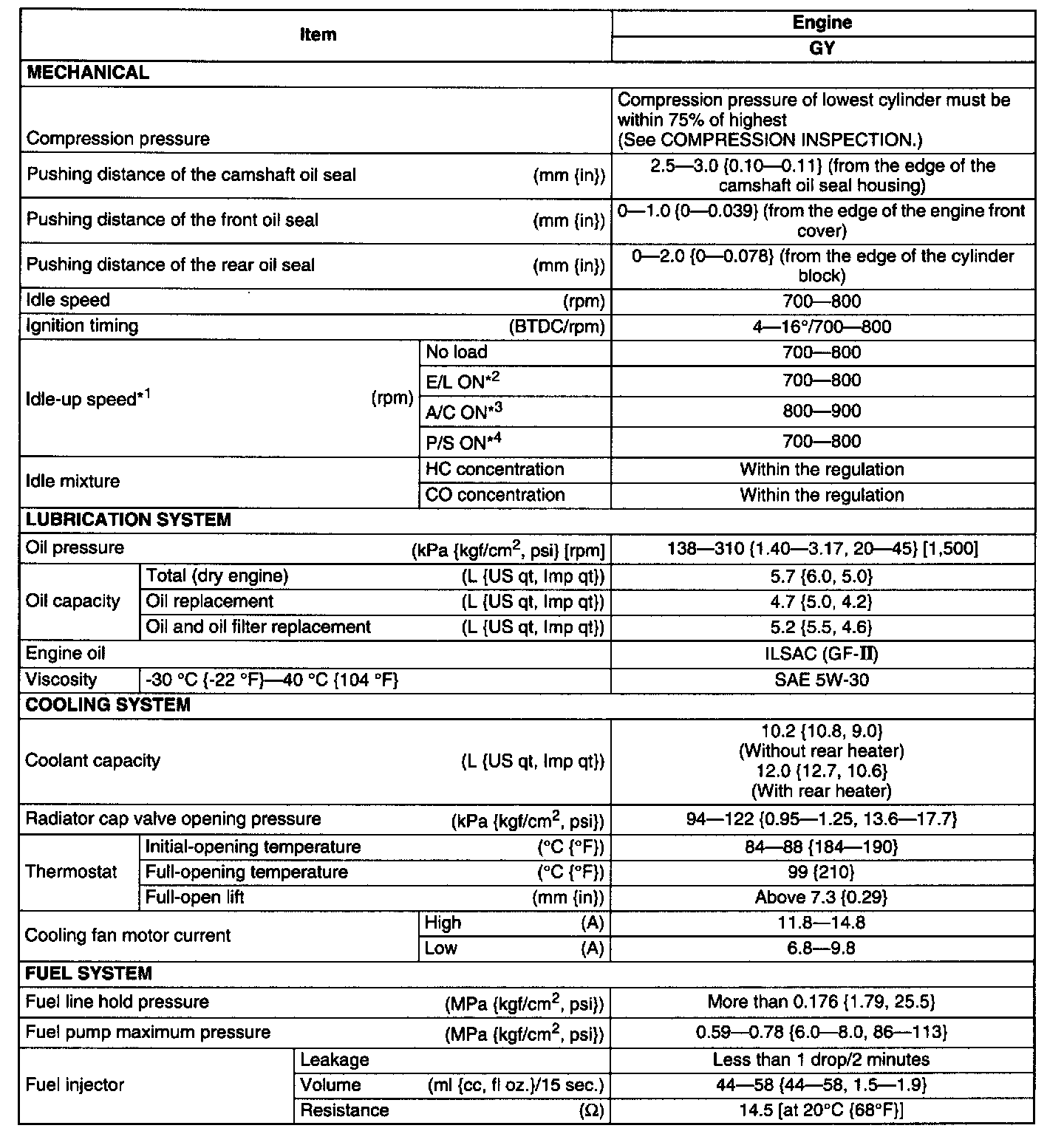

Part 2:

Turn the following electrical loads on and verify that the voltage reading increases
- Headlights
- Blower motor
- Rear window defroster

1: Excludes temporary idle speed drop just after the loads (E/L, A/C, P/S) are turned on.
2: Headlight, fan switch (2nd or higher) and cooling fan are turned on.
3: A/C switch and fan switch are turned on.
4: Steering wheel fully turned.
5: Back-up current is the constant flow of current present (for the audio unit, clock, PCM, etc.) when the ignition switch is off and with the ignition key removed.
6: Must not be 0 A.
