Home
>>
Mazda
>>
2001
>>
MPV LX V6-2.5L DOHC
>>
Parts and Labor
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Images
Images

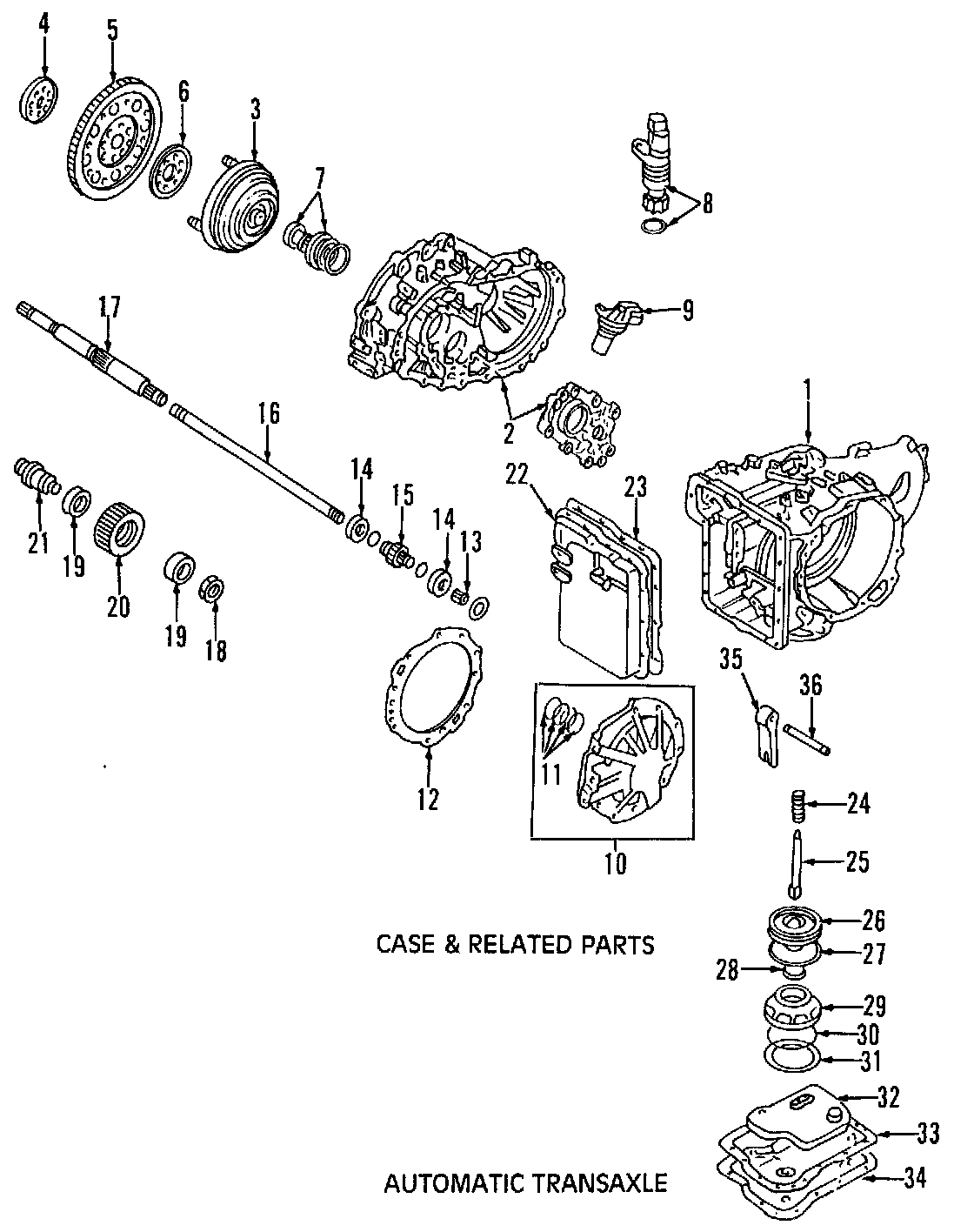

Case & Related Parts:

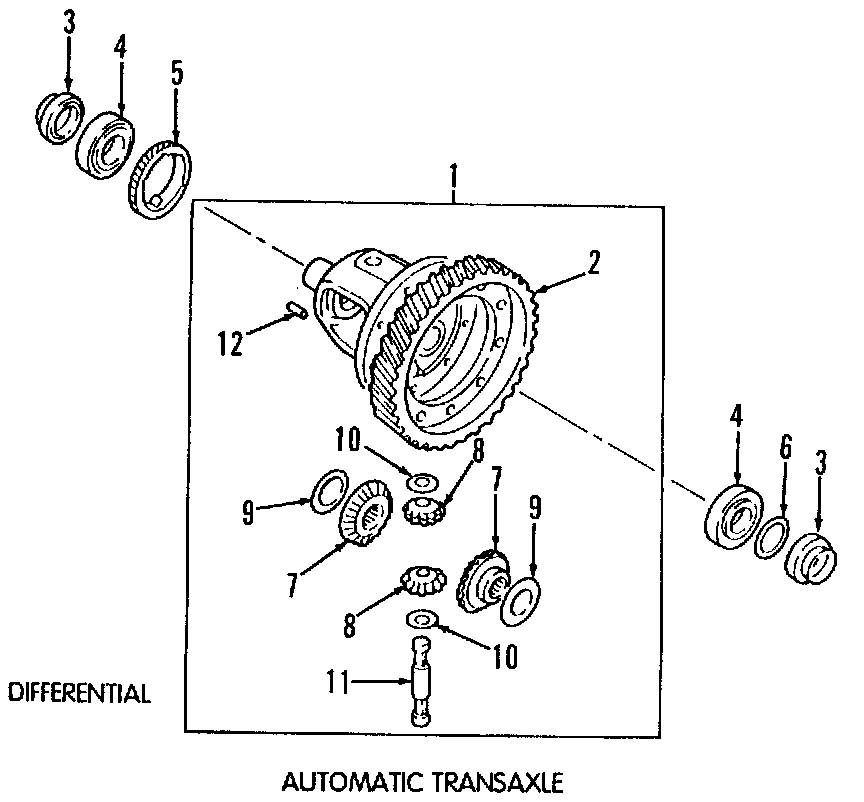

Differential:

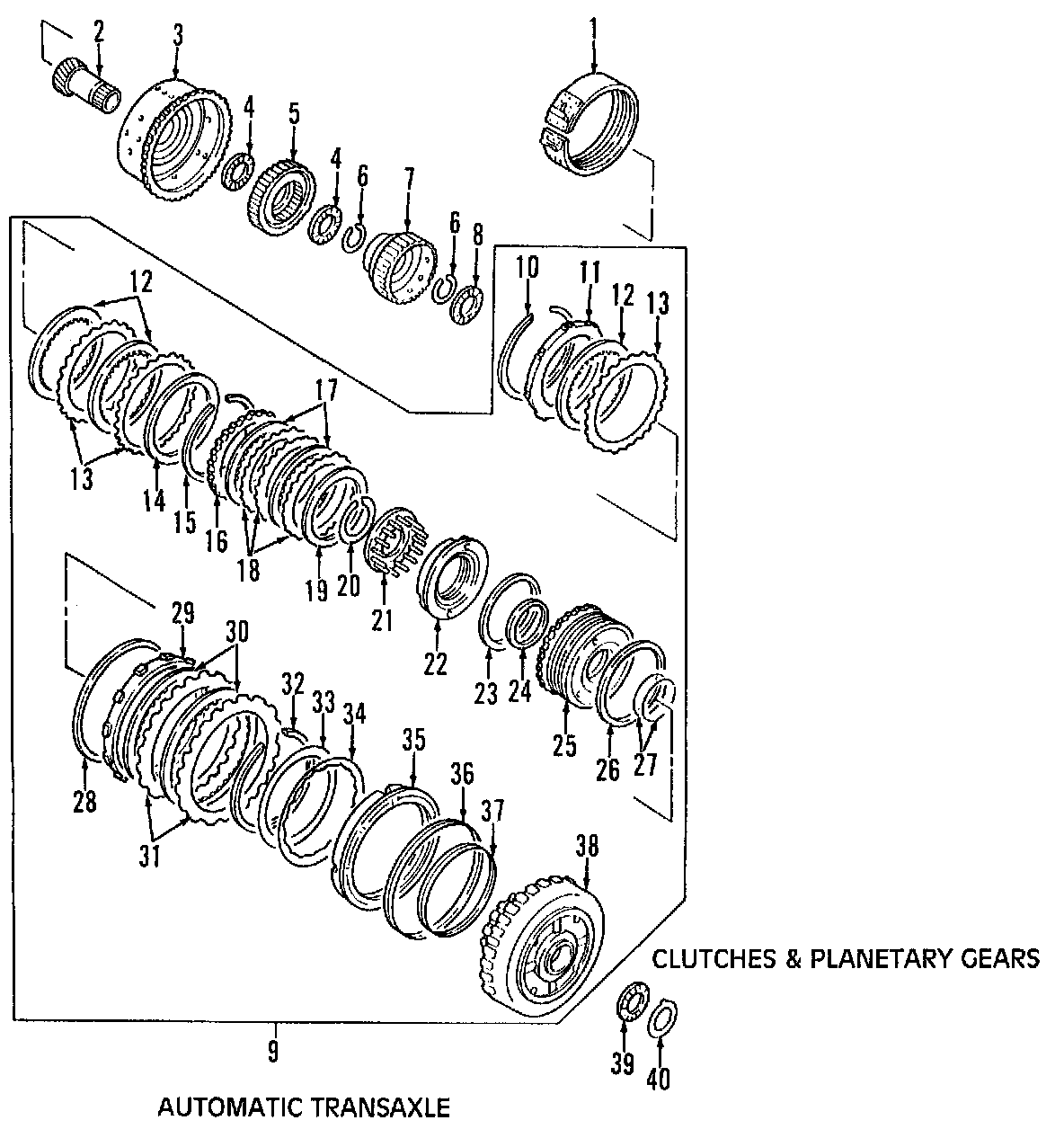

Clutches & Planetary Gear:

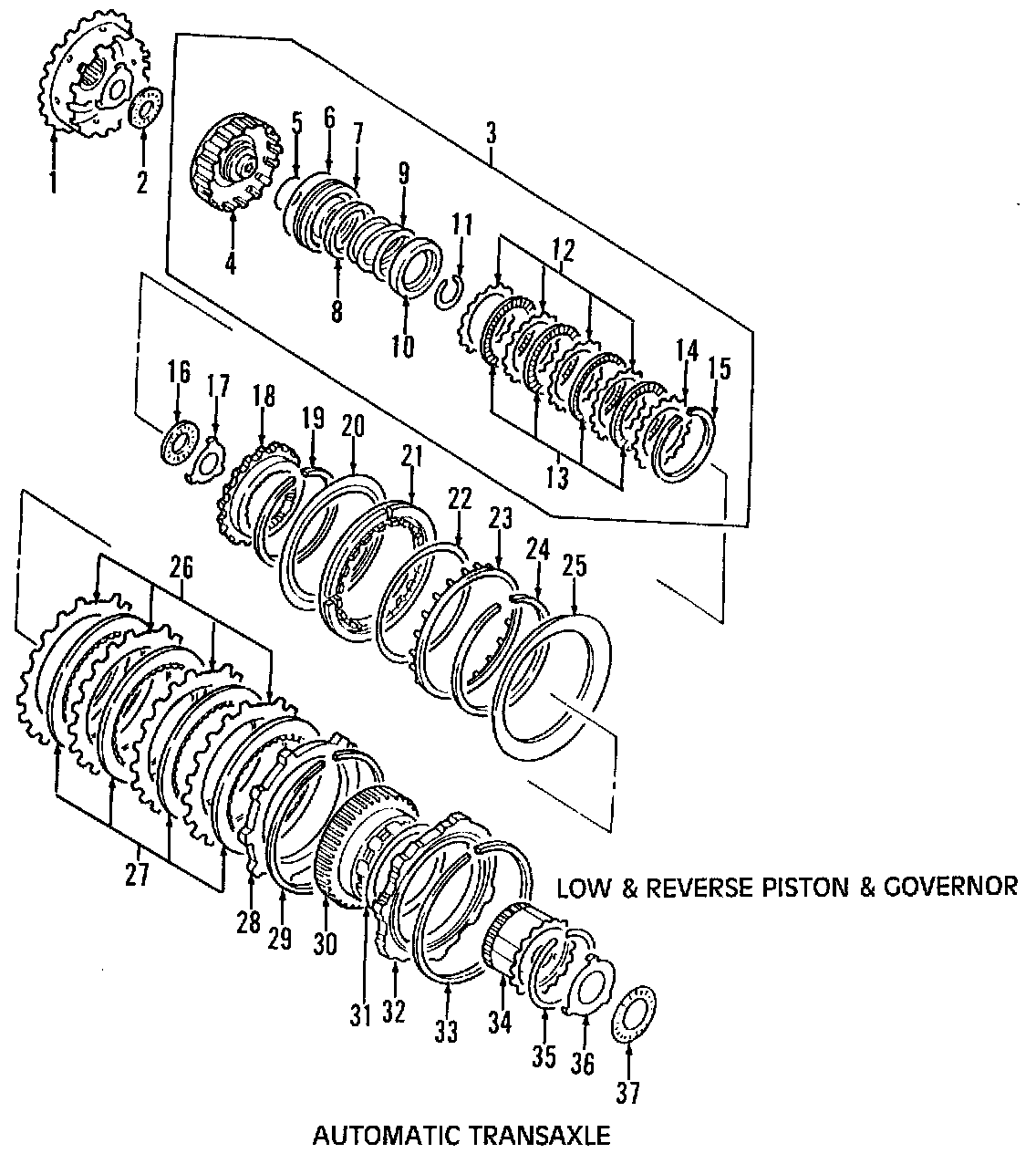

Low & Reverse Piston & Governor:

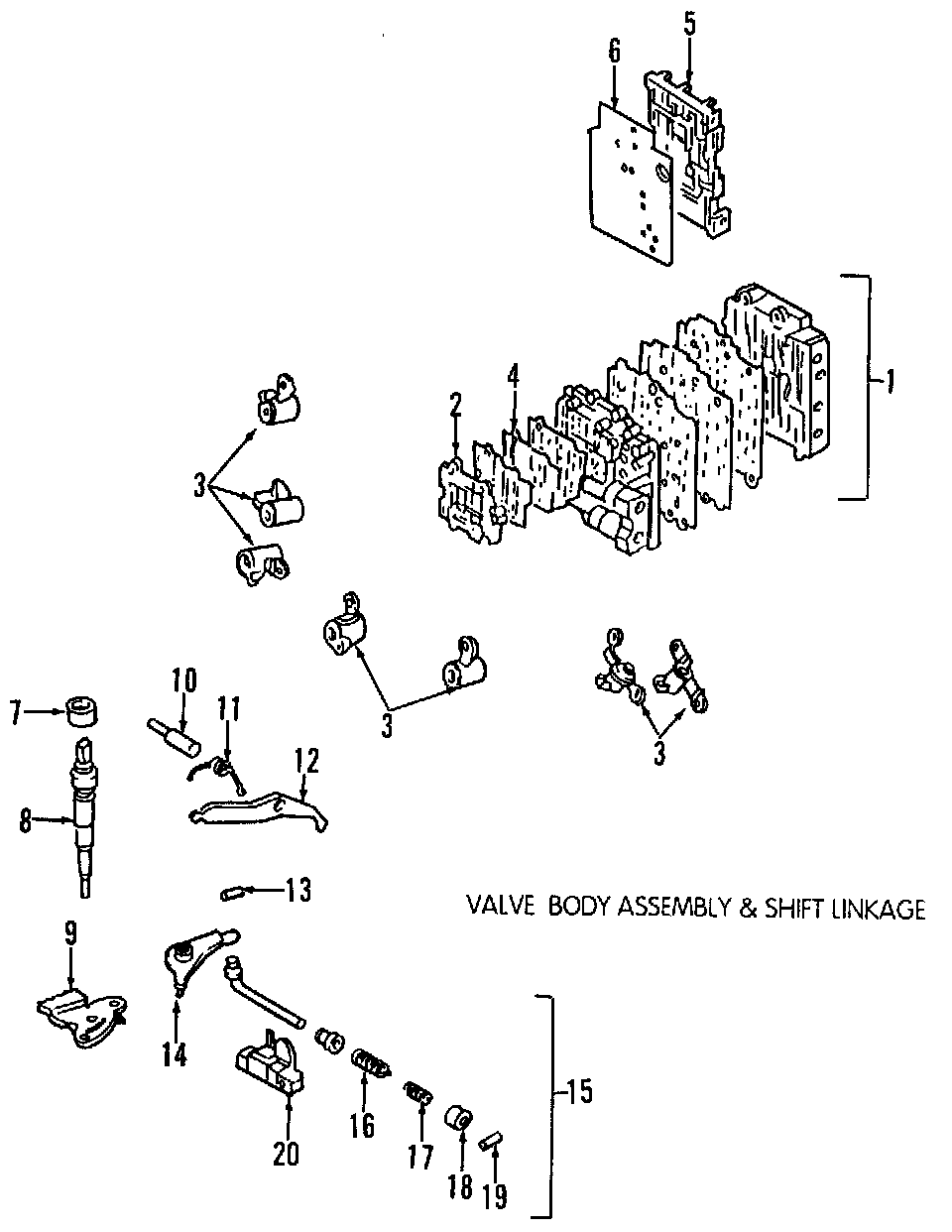

Valve Body Components:
