Cylinder Head Assembly

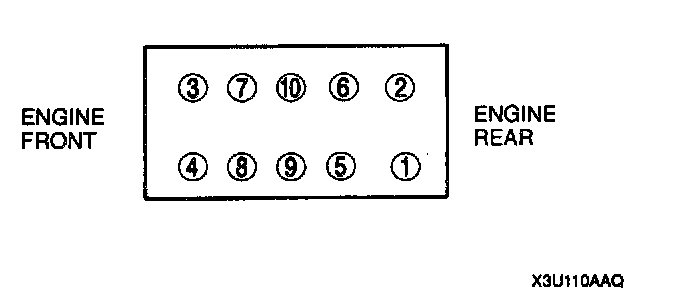

Cylinder Head Bolt Loosening Sequence

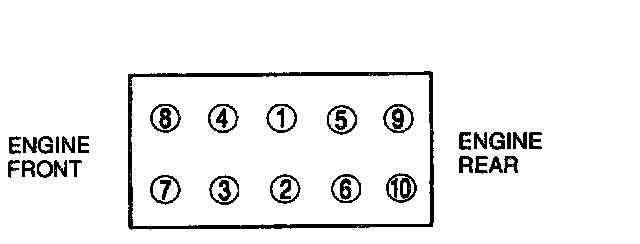

Cylinder Head Bolt Tightening Sequence
Torque:
1st: 17.2 - 22.0 Nm (1.75 - 2.25 kgf-m, 12.7 - 16.2 ft. lbs.)
2nd: + 85° - 95°
3rd: + 85° - 90°
Camshaft Bearing Cap Tightening Sequence:
Camshaft Bearing Cap Bolt Tightening Sequence
Camshaft Pulley Bolt
Torque: 50 - 60N-m (5.0 - 6.2 kgf-m, 37 - 44 ft-lbf)
Intake Manifold Tightening Specifications
Exhaust System - ZM:
Exhaust Manifold Tightening Specifications
