A/C Compressor Bracket Removal and Installation
Removal and Installation 1.
Remove the drive belt.
2.
Disconnect the A/C clutch field coil electrical connector.
3.

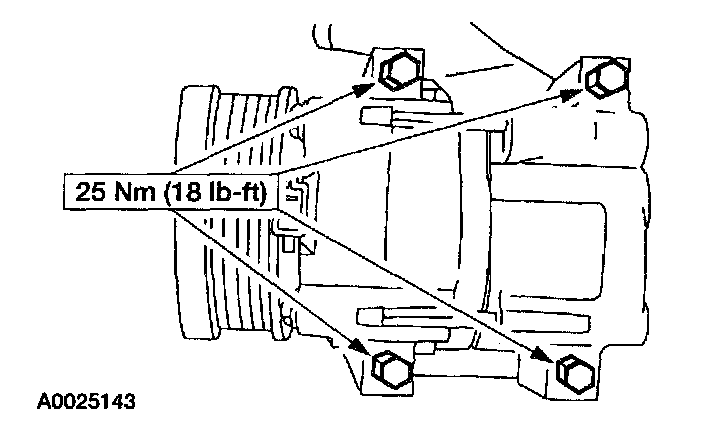

Remove the bolts and position the A/C compressor aside.
4.
Remove the nuts, the bolts, and the A/C compressor bracket.
5.
To install, reverse the removal procedure
