3: A/C Does Not Operate/Does Not Operate Correctly

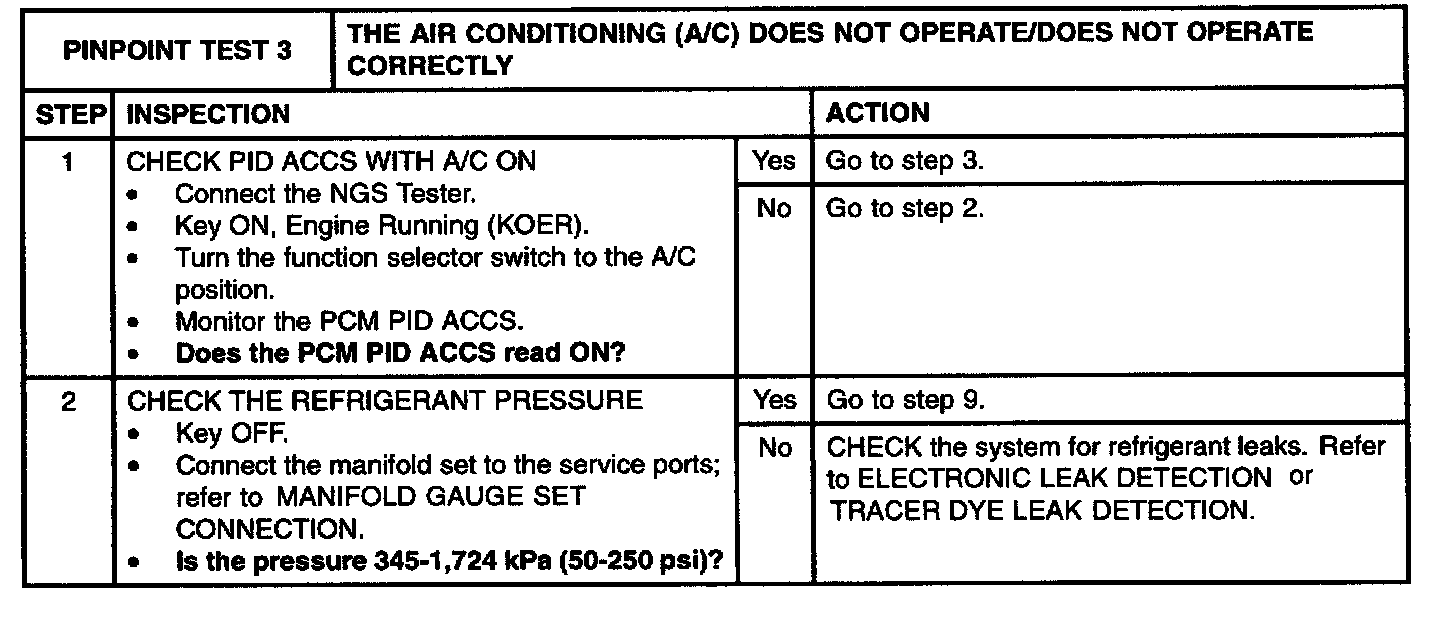

Step 1 - 2:

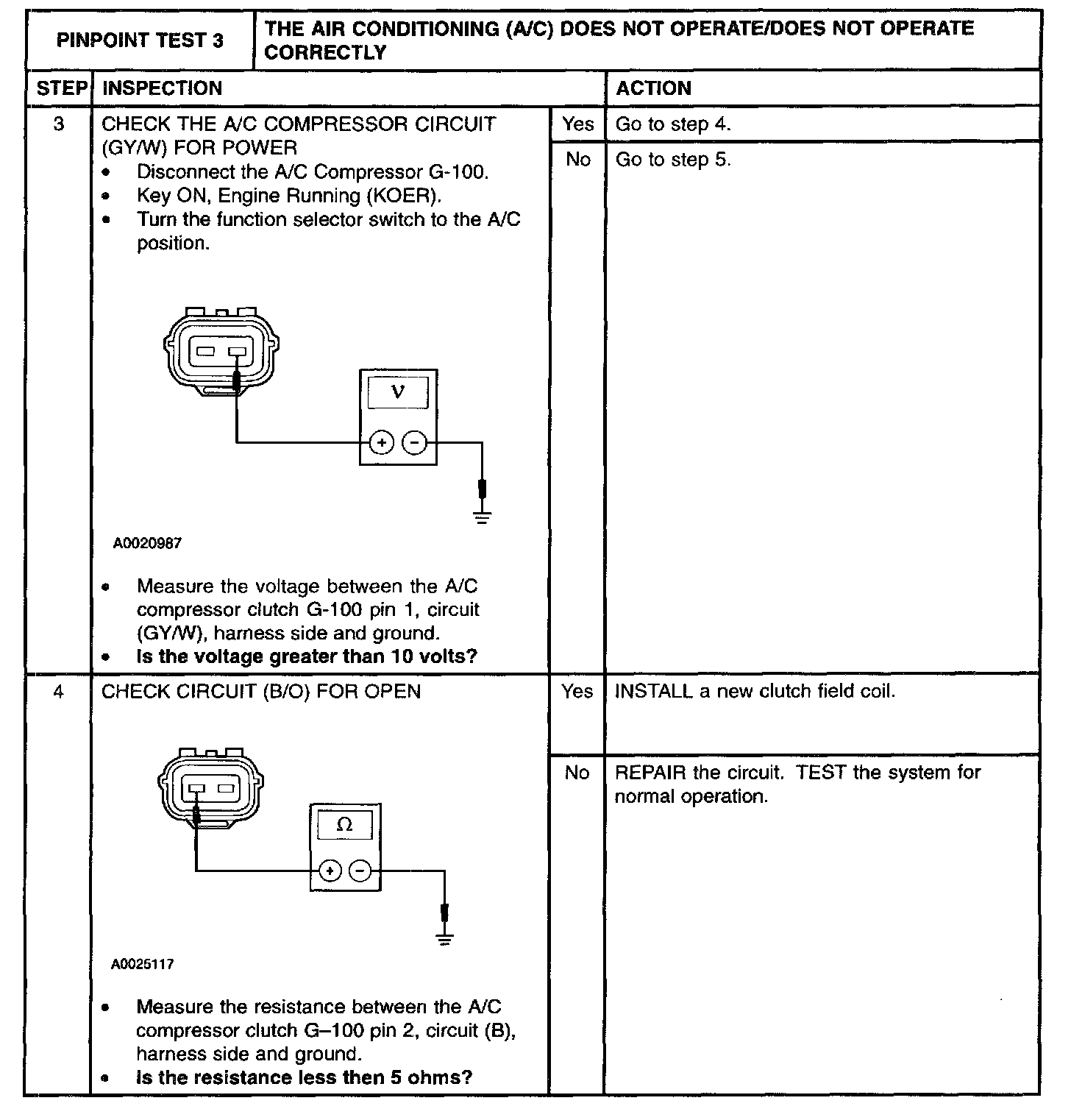

Step 3 - 4:
Step 5 - 6:

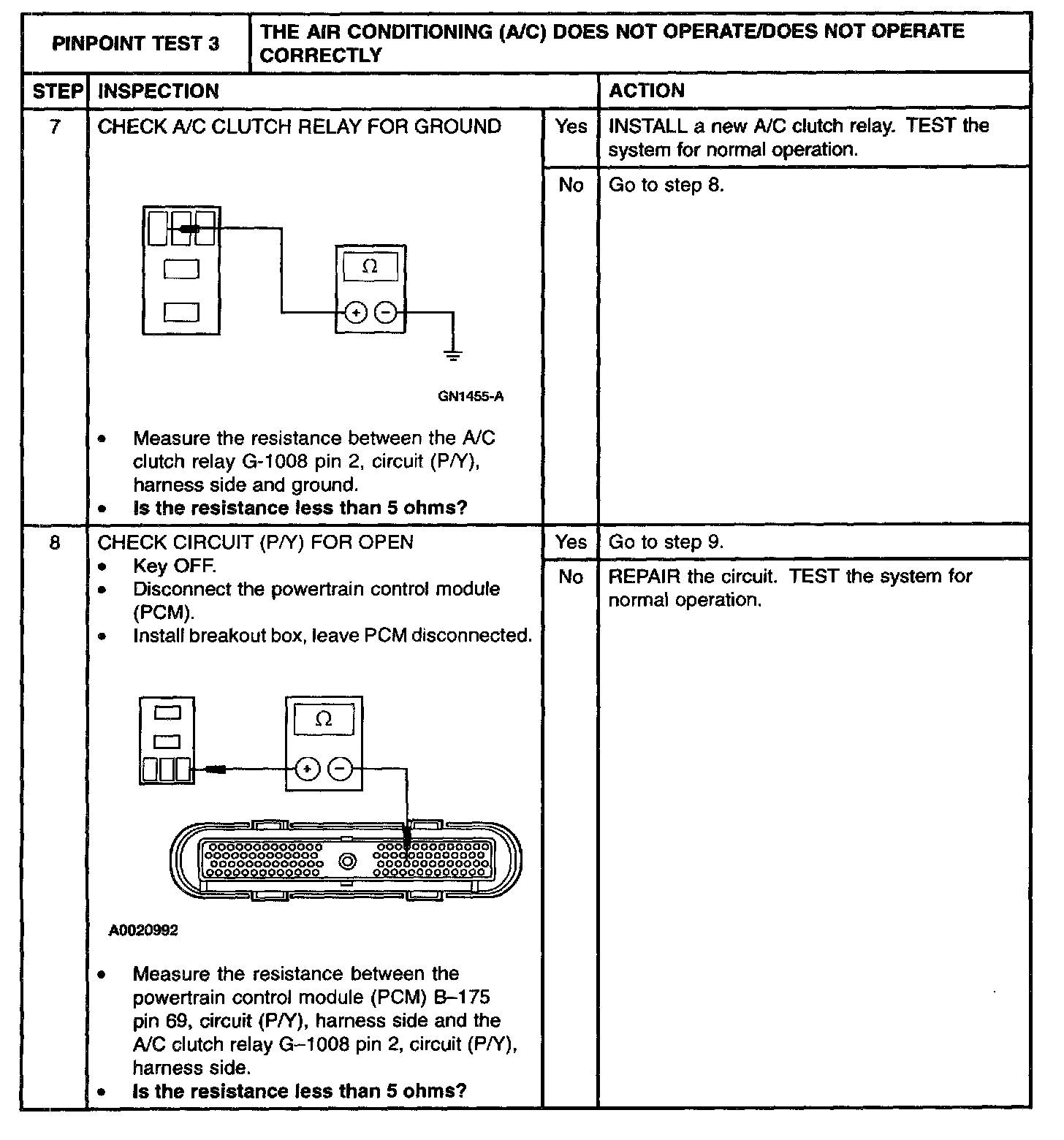

Step 7 - 8:
Step 9 - 10:

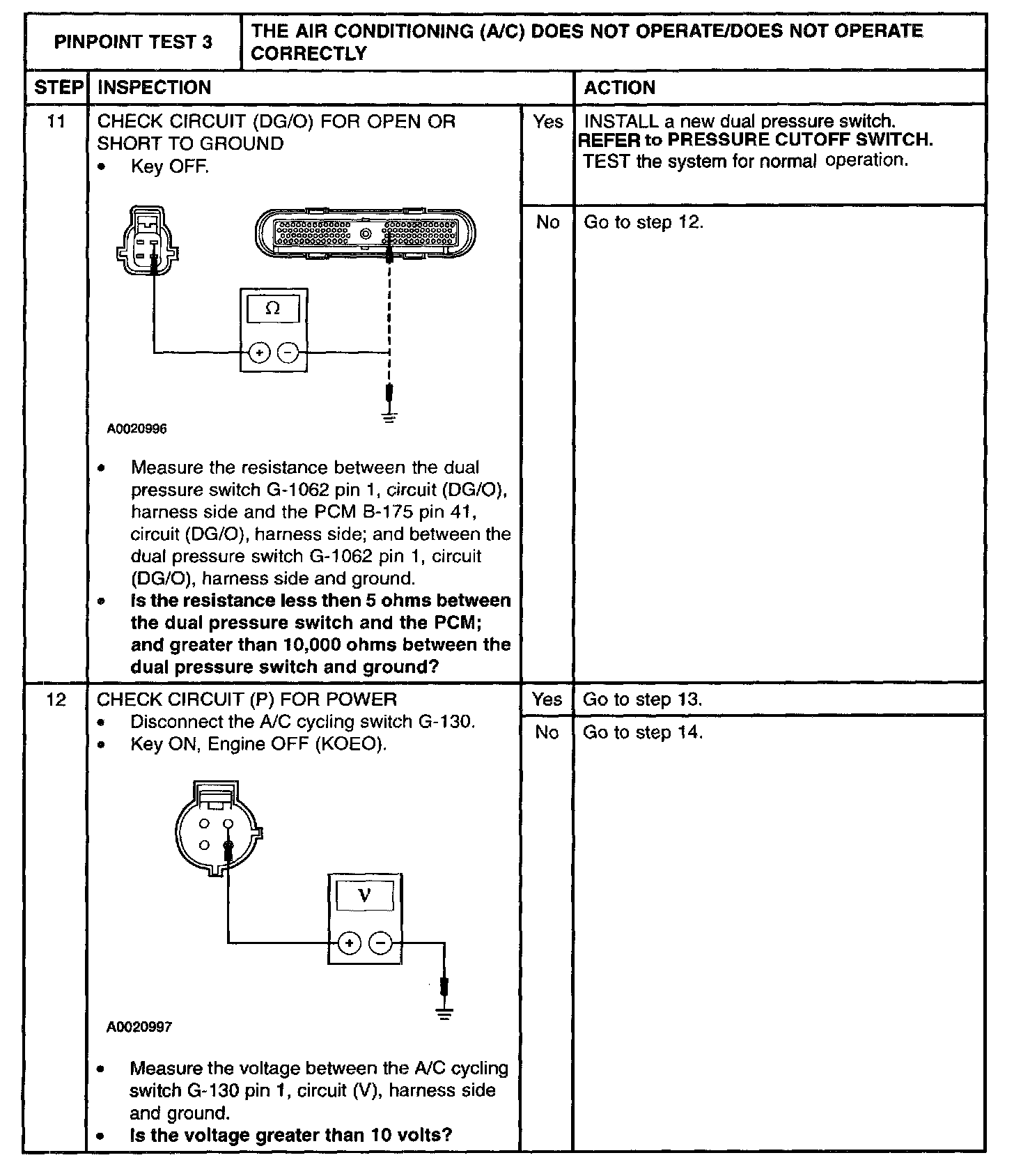

Step 11 - 12:
Step 13 - 14:

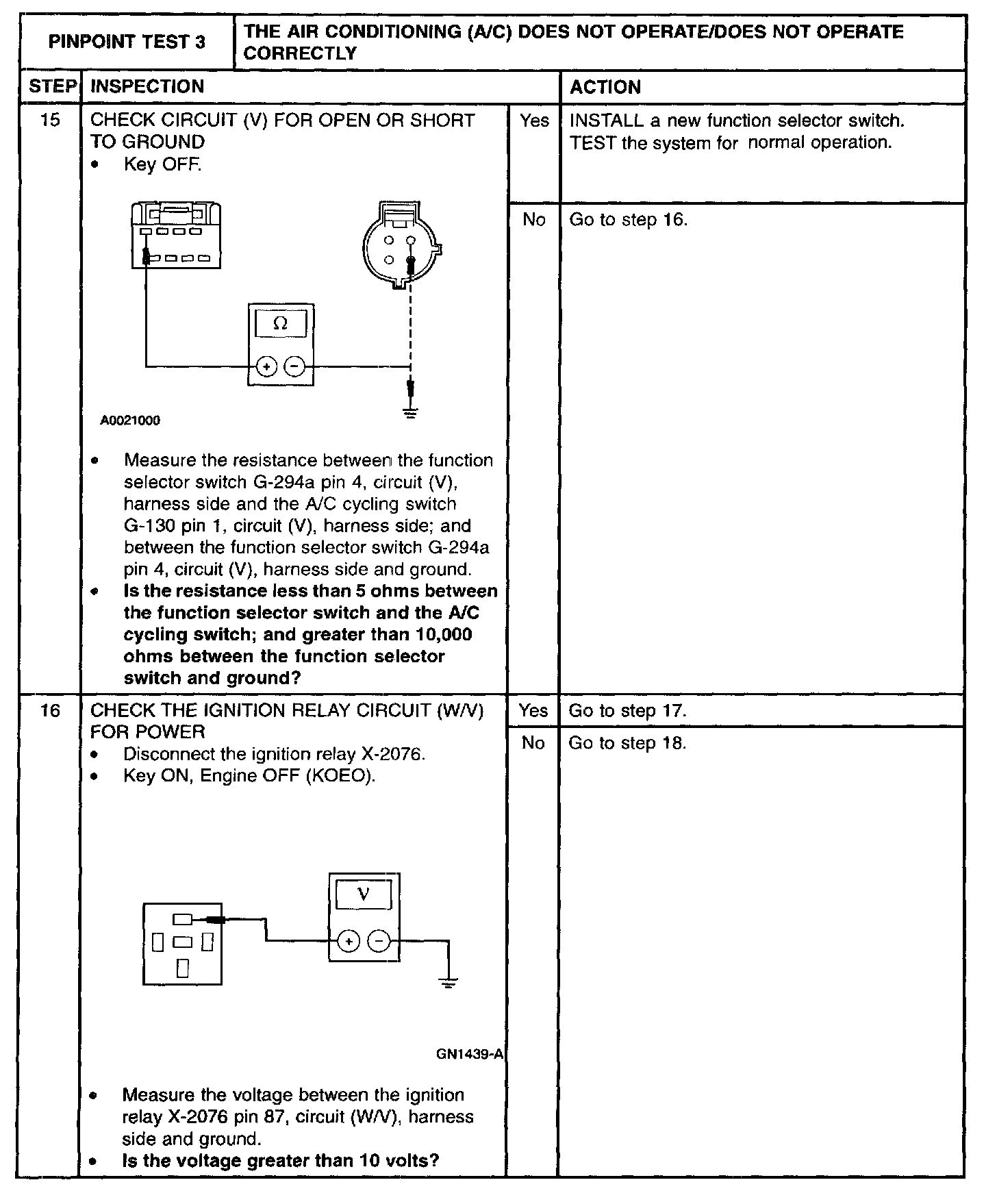

Step 15 - 16:

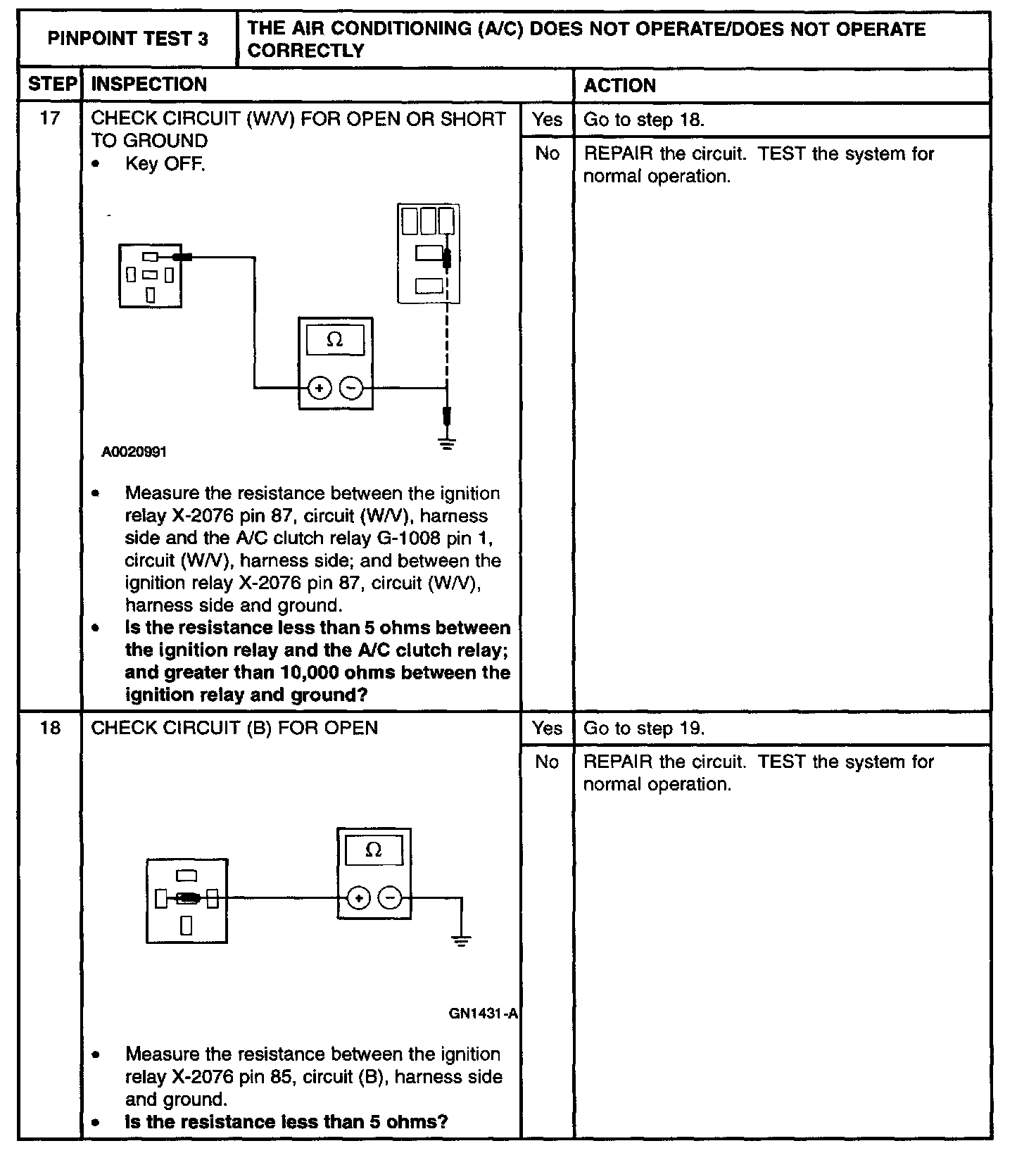

Step 17 - 18:

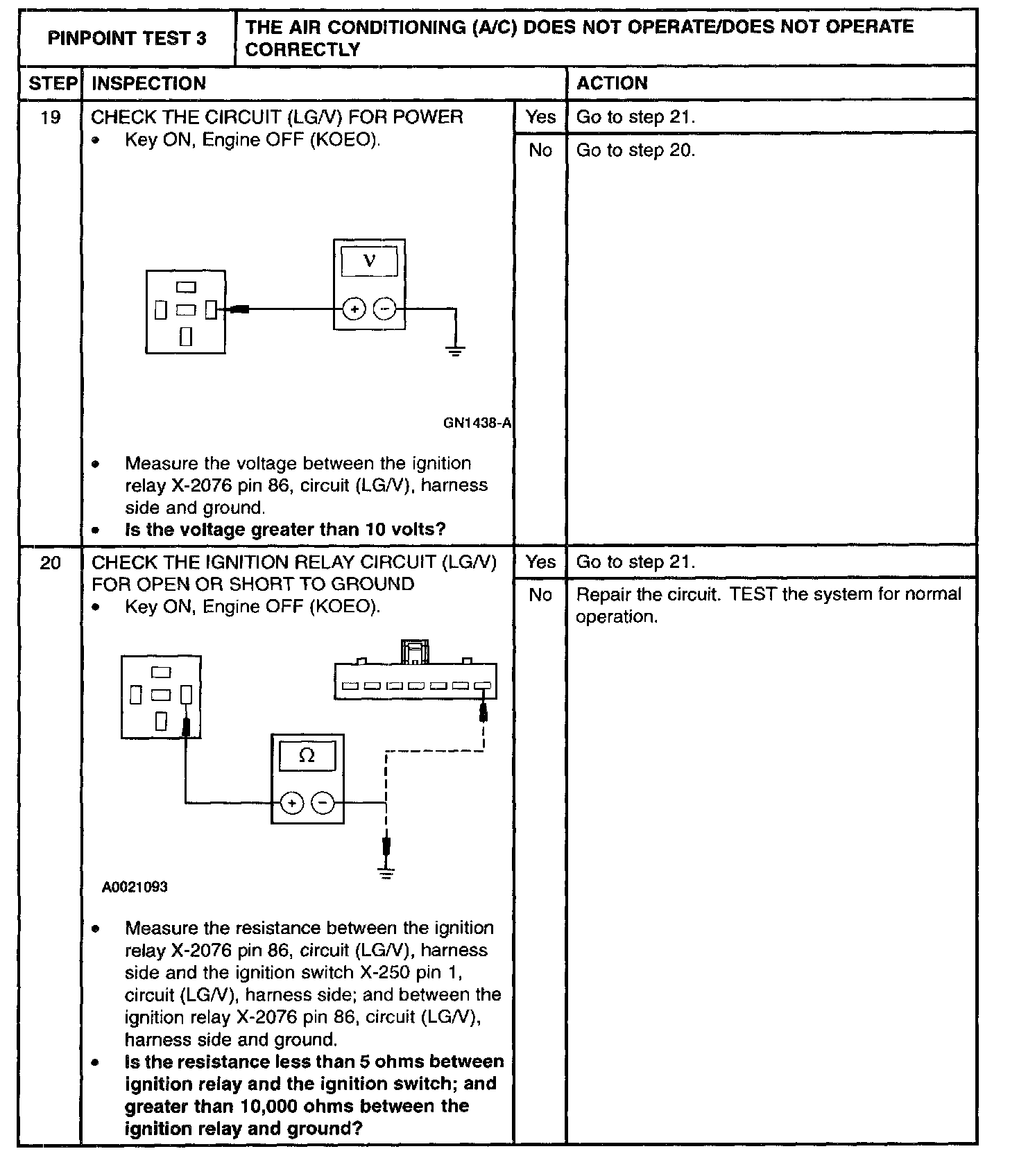

Step 19 - 20:

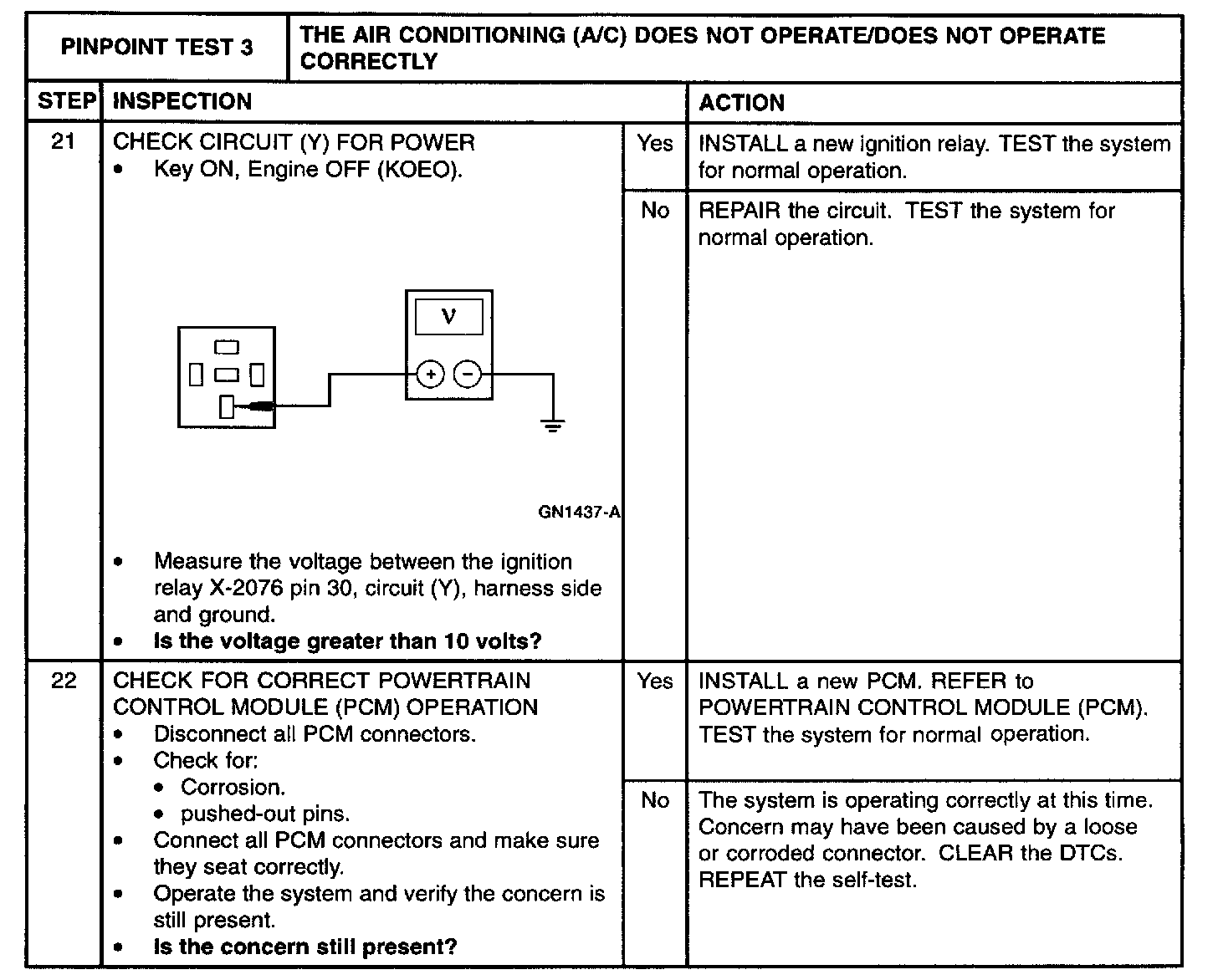

Step 21 - 22:
CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.
