Pinpoint Test 2

Step 1:



Step 2 - 3:



Step 4 - 6:

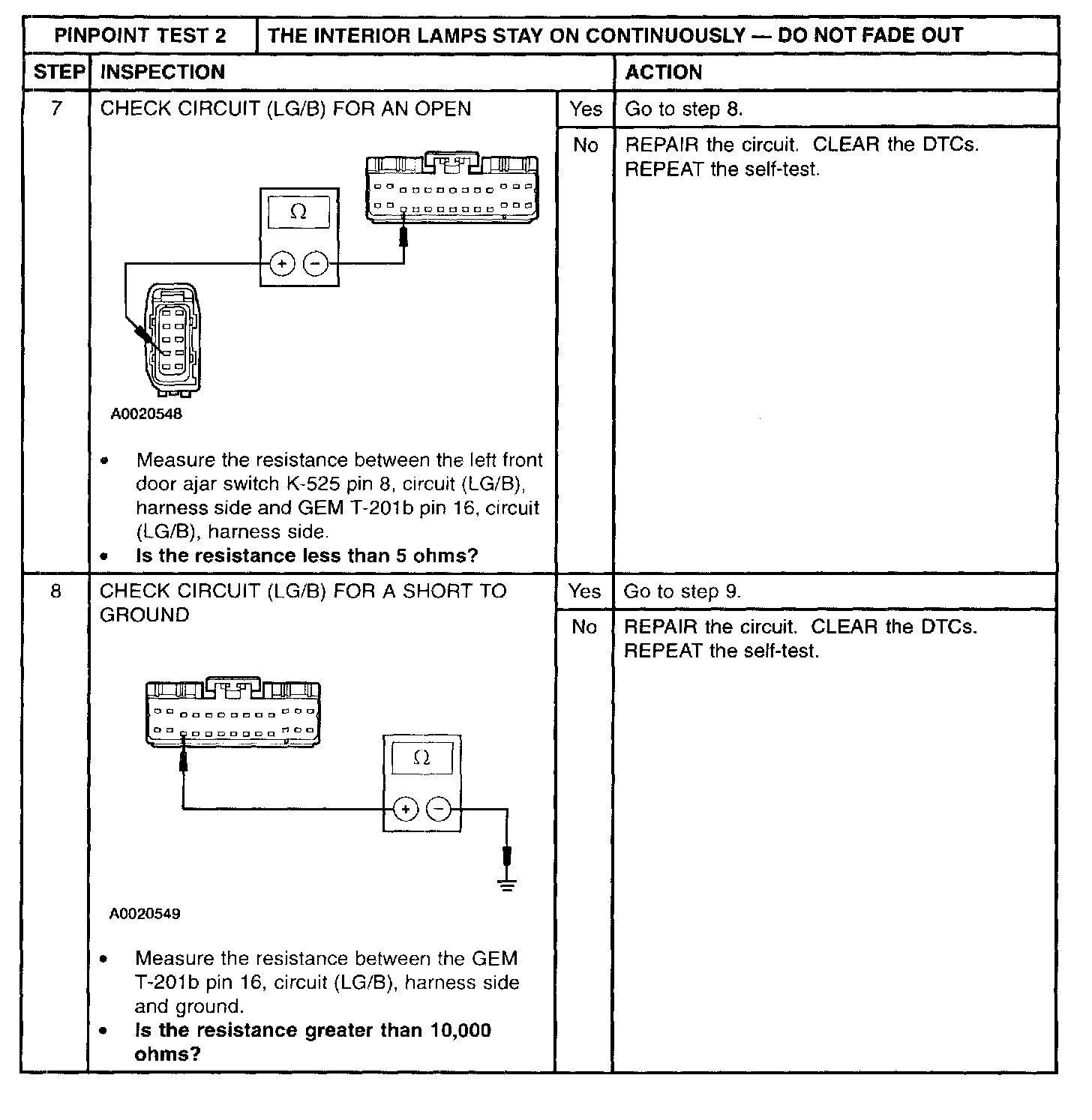

Step 7 - 8:



Step 9 - 11:



Step 12 - 13:



Step 14 - 16:



Step 17 - 18:

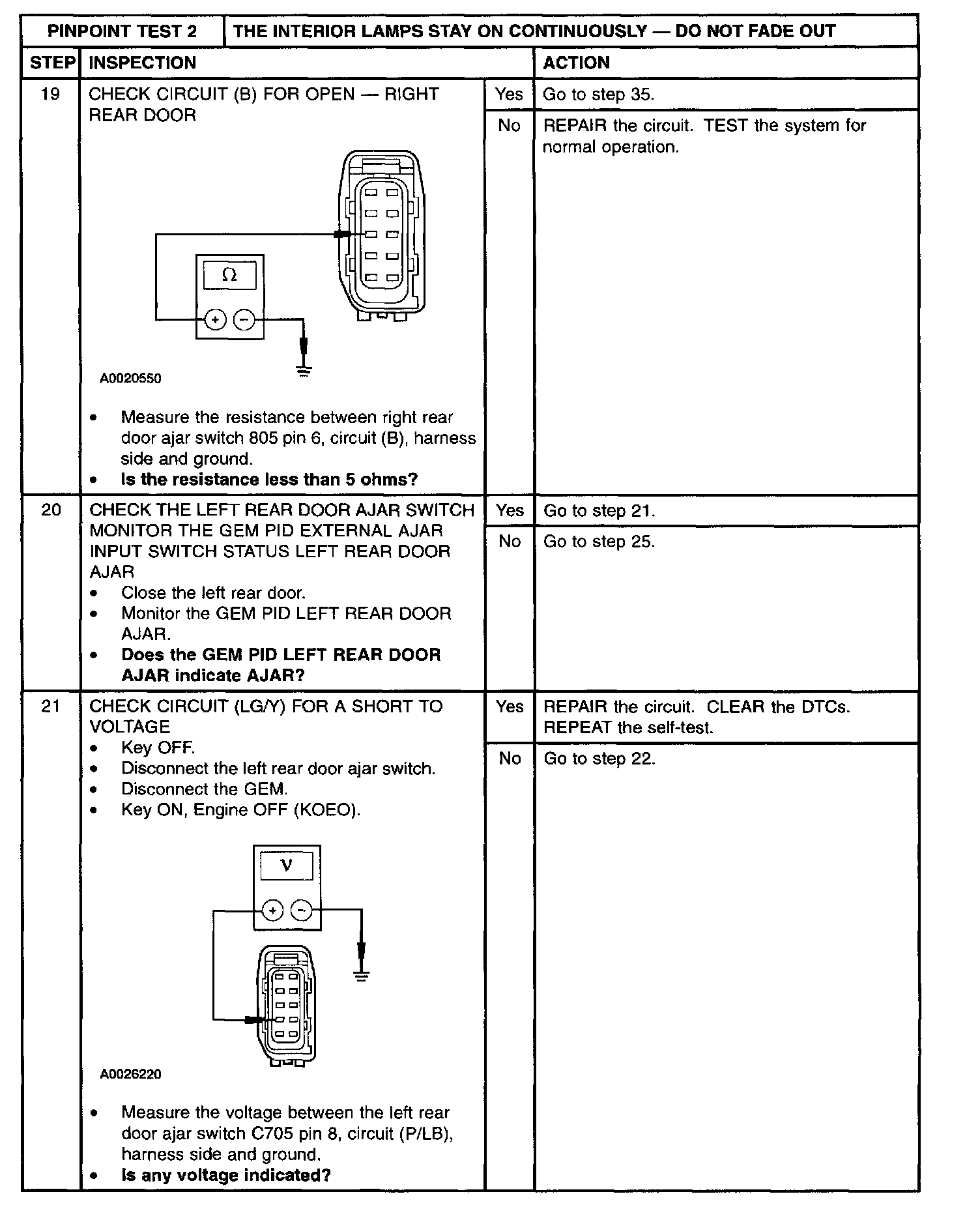

Step 19 - 21:



Step 22 - 23:



Step 24 - 26:

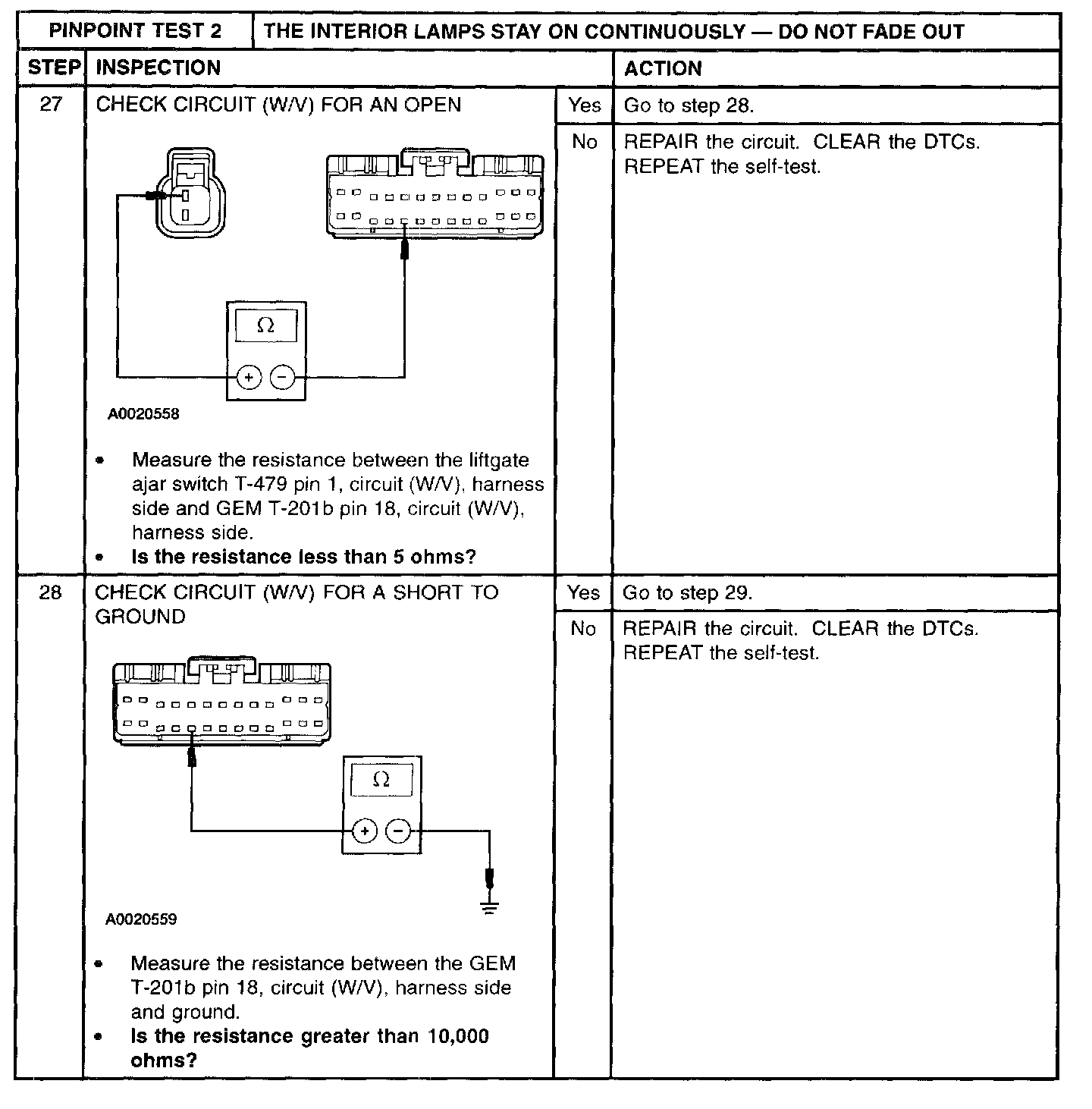

Step 27 - 28:



Step 29 - 31:

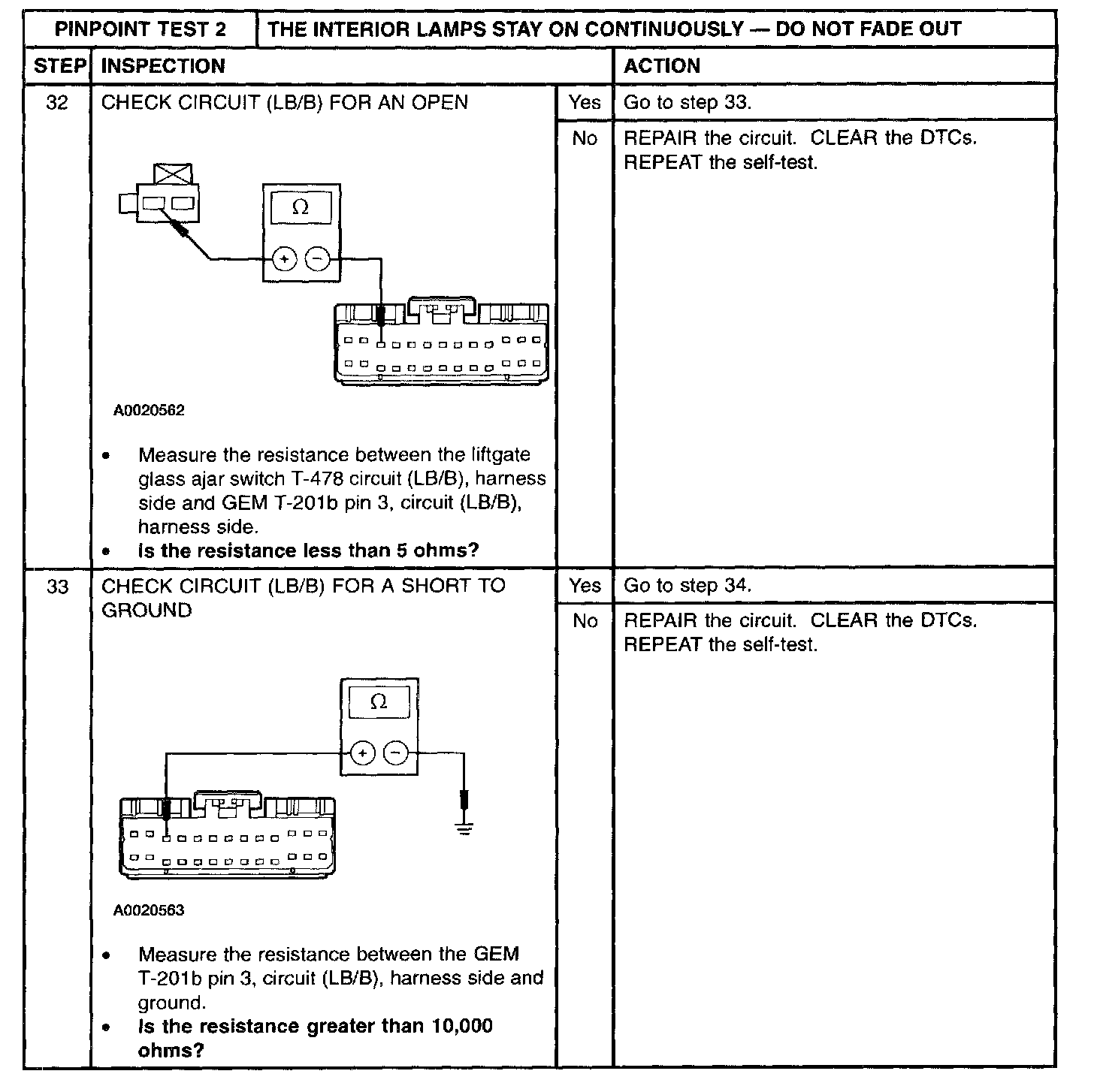

Step 32 - 33:



Step 34:

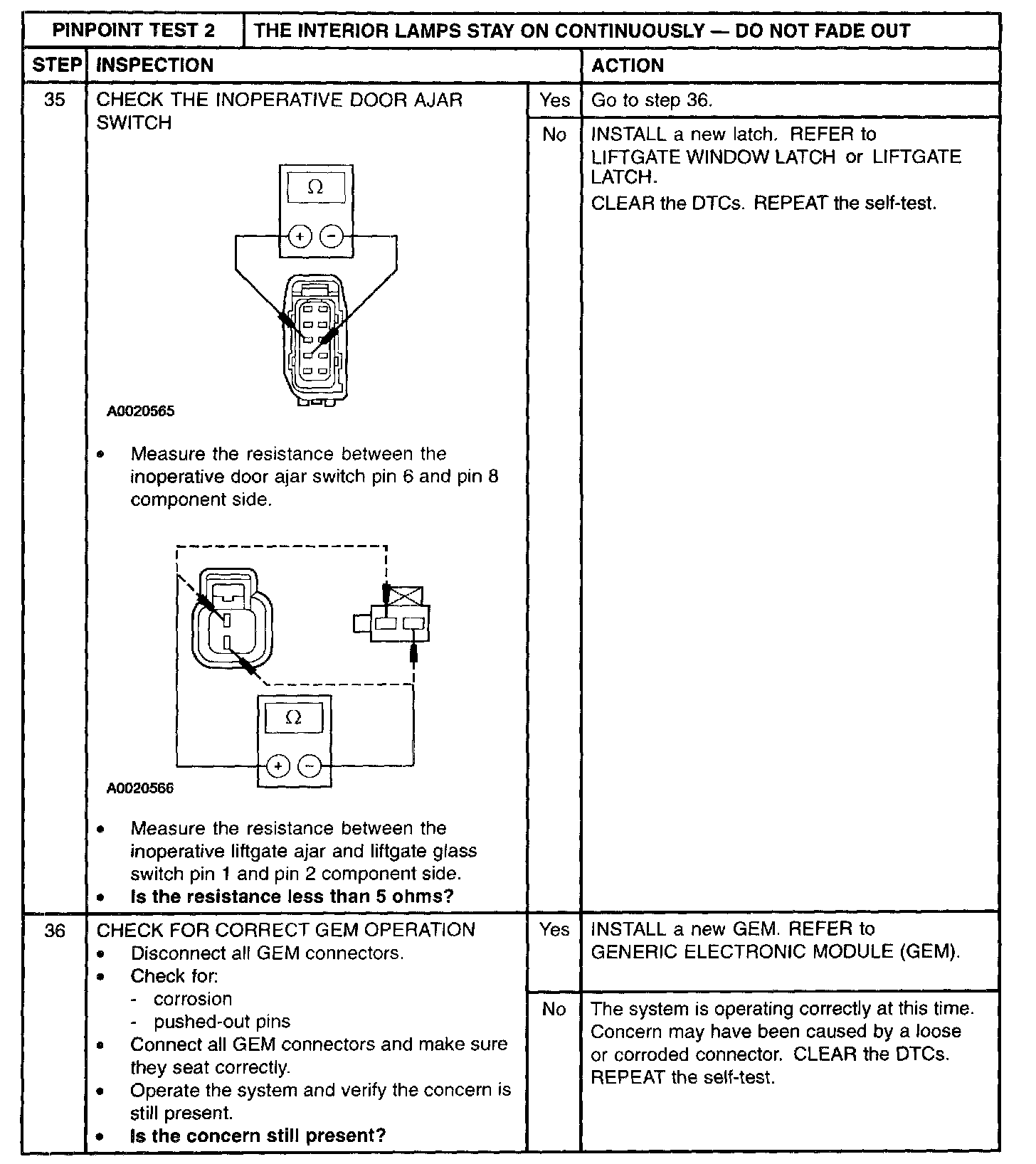

Step 35 - 36:
