Drive Belt: Service and Repair
ACCESSORY DRIVE BELT - 2.0L ZETEC Removal and Installation 1.
Remove the right front wheel and tire.
2.

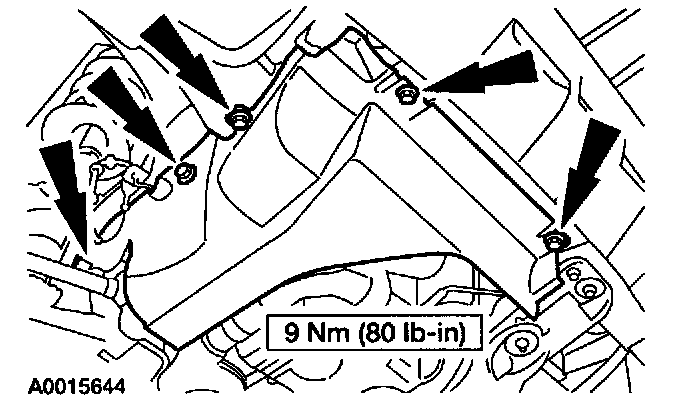

Remove the bolts and the right front lower splash shield.
3.

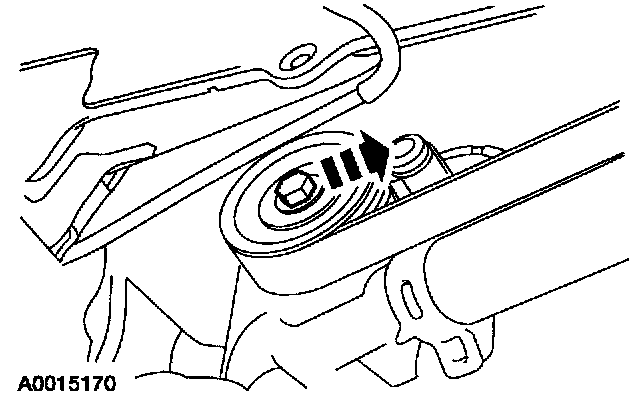

Rotate the accessory drive belt tensioner clockwise and remove the accessory drive belt.
4.
To install, reverse the removal procedure.
