Sunroof / Moonroof Module: Service and Repair

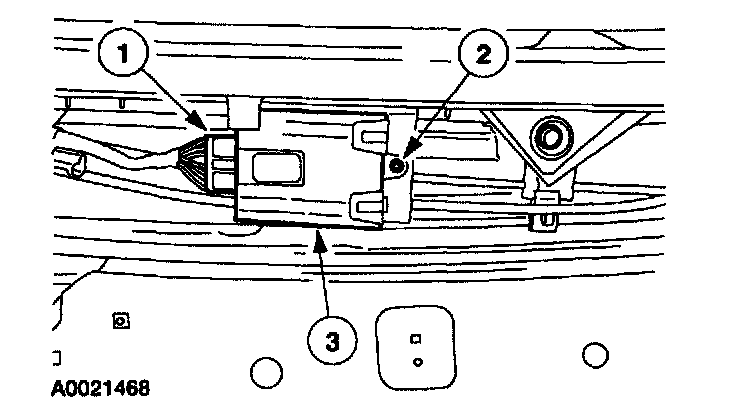

ROOF OPENING PANEL MODULERemoval and Installation 1.
Remove the headliner.
2.
Remove the roof opening panel module.
1.
Disconnect the electrical connector.
2.
Remove the screw.
3.
Remove the roof opening panel module.
3.
To install, reverse the removal procedure.
