Initial Inspection and Diagnostic Overview

STEERING COLUMN SWITCHES

1. Verify the customer concern by operating the ignition switch and the multifunction switch.

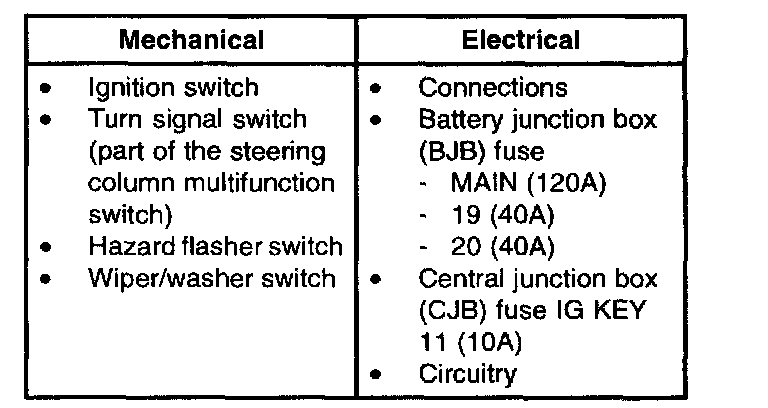

Visual Inspection Chart:

2. Visually inspect the ignition switch and the steering column multifunction switch for damage; refer to the chart.
3. If binding occurs, turn the steering wheel left or right to release any pressure on the ignition switch and make sure the ignition key is cut correctly.
4. If the cause of the switch concern is not visually evident, proceed to the Troubleshooting Index.
