Torque Converter Insert Check
TORQUE CONVERTER INSERT CHECK Inspection 1.

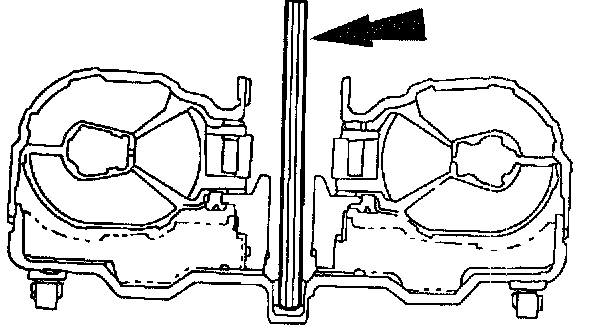

Install the oil pump drive shaft into the torque converter.
2.

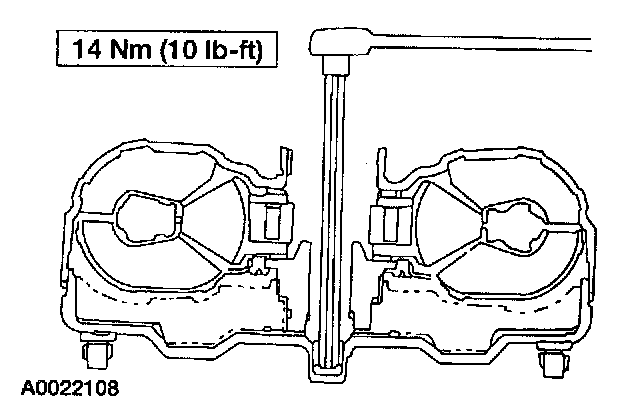

Install a torque wrench with a 5/16 Allen head socket attached on the oil pump drive shaft.
3.
Verify that the insert can hold torque.
4.
If the insert cannot hold the specified torque, install a new torque converter.
