Shifter A/T: Service and Repair
Removal and Installation 1.
Remove the multifunction switch.
2.

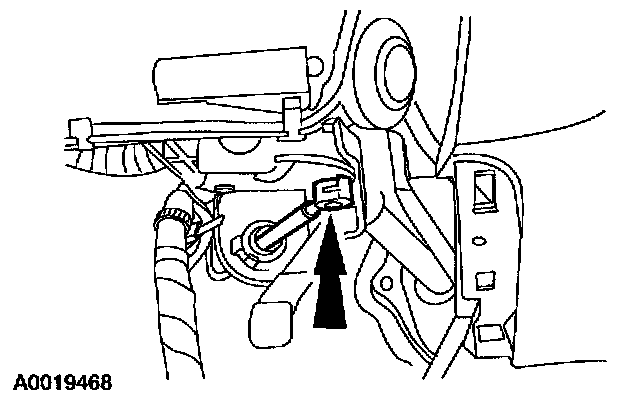

Disonnnect the gearshift cable.
3.

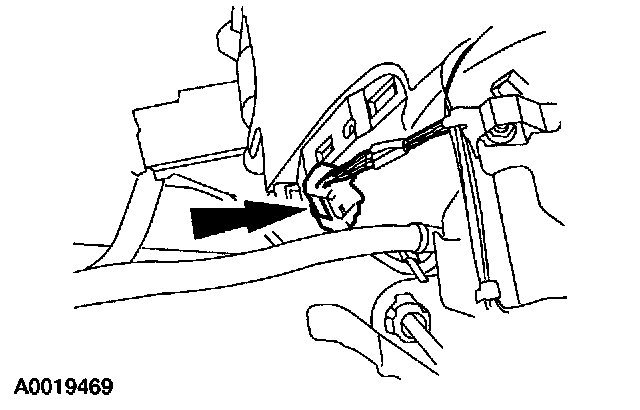

Disconnect the electrical connector.
4.
Remove the three bolts and the gearshift lever assembly.
5.
To install, reverse the removal procedure.
