Front Door Window Glass: Service and Repair

1. Remove the exterior mirror.

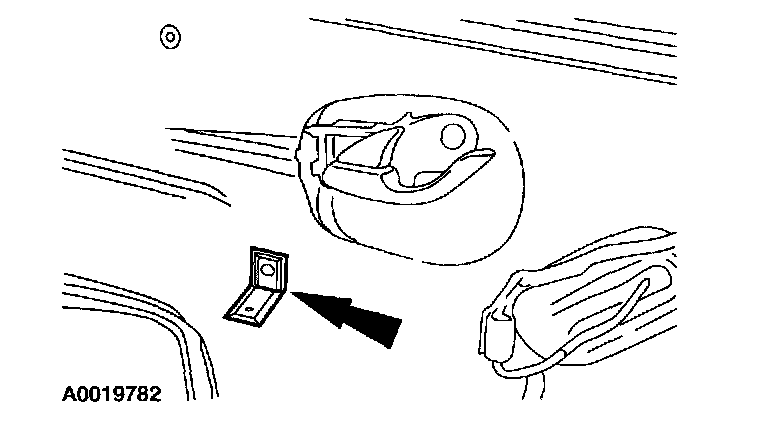

2. Remove the screw and the door trim panel bracket.
3. Position the water shield aside.

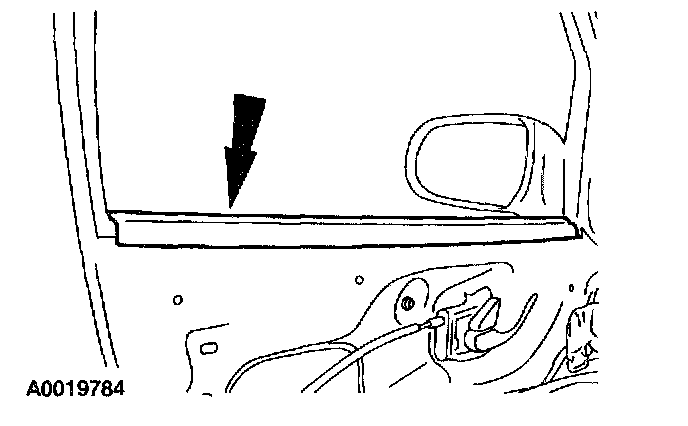

4. Remove the front door interior glass weatherstrip.

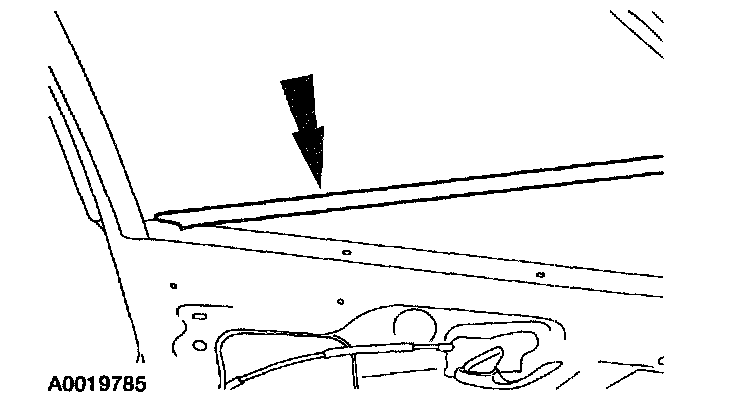

5. Remove the front door exterior belt line moulding.
6. Lower the front door window glass to gain access to the screws.

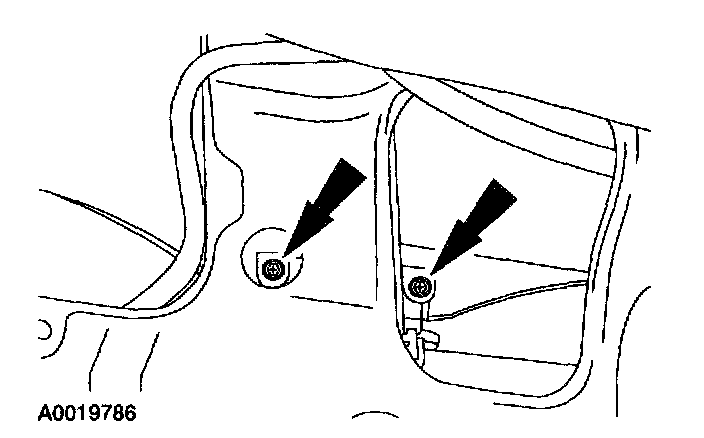

7. Remove the front door window glass screws.

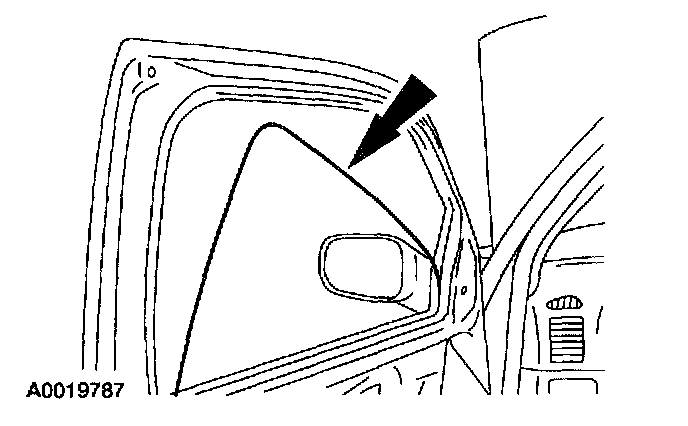

8. Remove the front door window glass.
9. To install, reverse the removal procedure.
