Rear Door Window Regulator: Service and Repair

All vehicles

1. Remove the rear door trim panel.

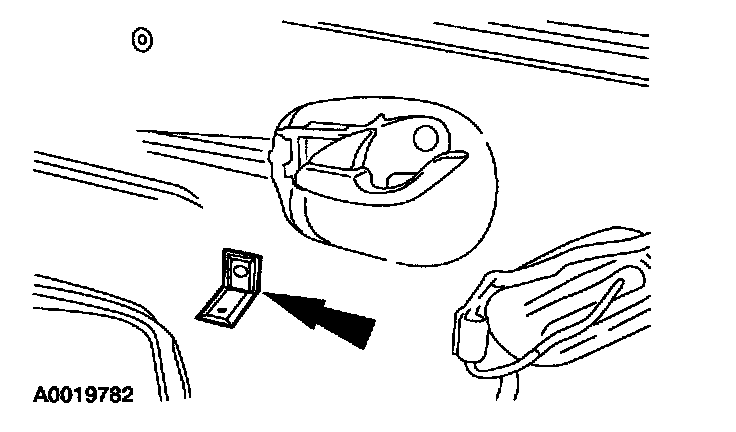

2. Remove the screw and the rear door trim panel bracket.
3. Position the water shield aside.
4. Lower the rear door window glass to gain access to the screws.

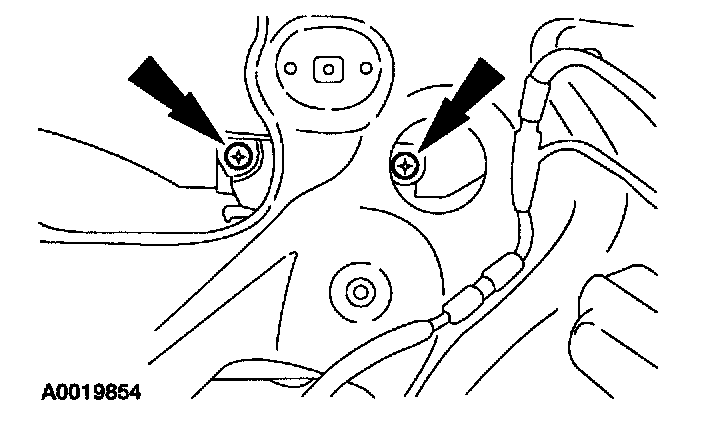

5. Remove the rear door window glass screws.
6. Support the rear door window glass in the full up position.

Vehicles with power windows

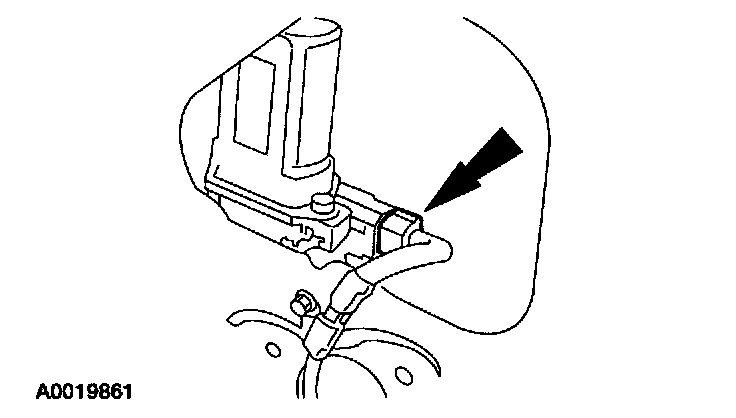

7. Disconnect the rear door power window regulator electrical connector.

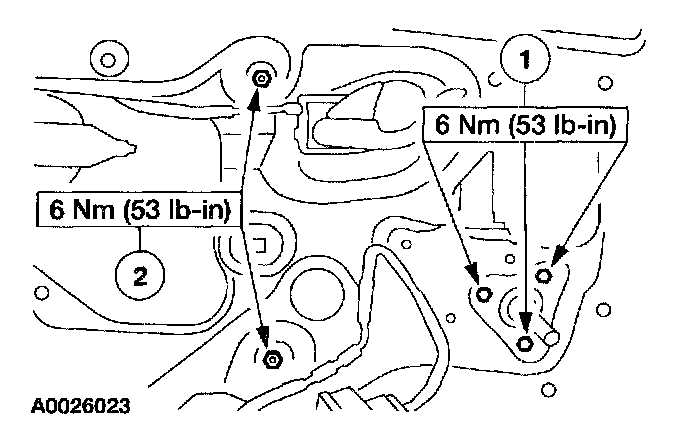

8. Remove the rear door power window regulator assembly.
1. Remove the bolts
2. Remove the nuts.

Vehicles with manual windows

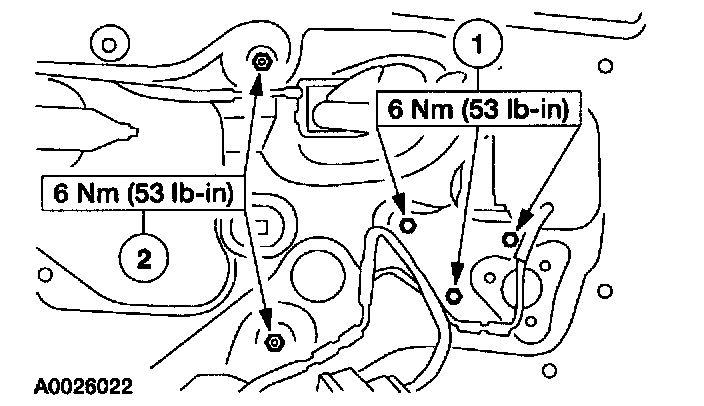

9. Remove the rear door window regulator assembly.
1. Remove the bolts.
2. Remove the nuts.

All vehicles

10. To install, reverse the removal procedure.
1. Cycle the door glass to make sure of correct window glass engagement.
