Windshield Washer Switch: Service and Repair
WINDSHIELD WIPER/WASHER SWITCHRemoval and InstallationNOTE: The windshield wiper/washer switch is part of the multifunction switch assembly.
1.
Remove the steering column shroud.
2.
Remove the screws.
3.
Remove the windshield wiper/washer switch.

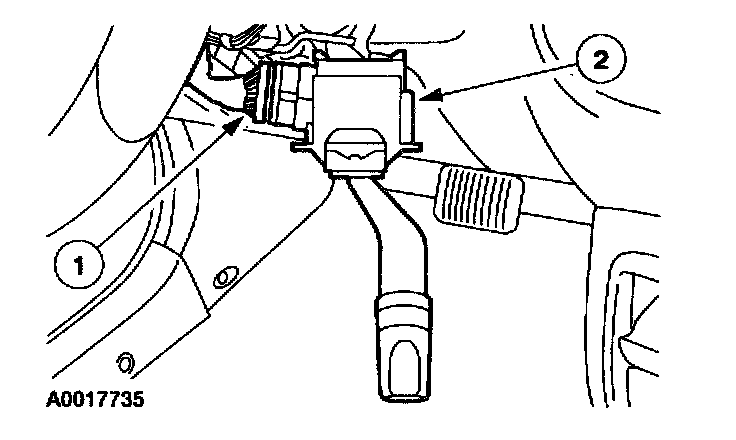

1.
Disconnect the electrical connector.
2.
Remove the windshield wiper/washer switch.
