Wiper Pivot: Service and Repair
WIPER MOUNTING ARM AND PIVOT SHAFTRemoval and Installation 1.
Remove the cowl top vent panels; refer to COWL PANEL GRILLE.
2.

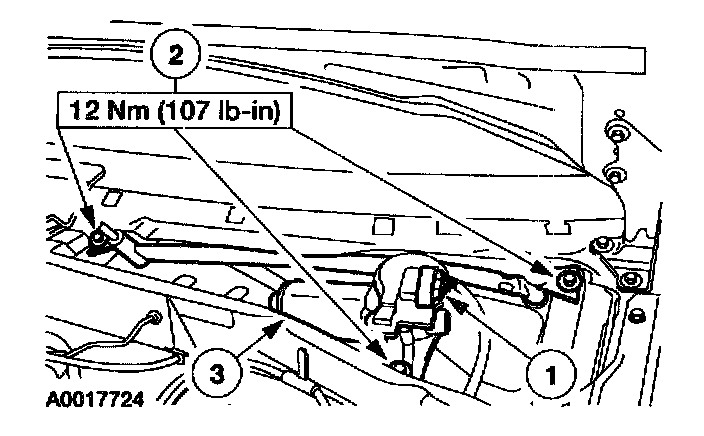

Remove the wiper mounting arm and pivot shaft.
1.
Disconnect the electrical connector.
2.
Remove the bolts.
3.
Remove the wiper mounting arm and pivot shaft.
3.
Remove the motor assembly.
4.
To install, reverse the removal procedure.
