Headlamp: Service and Repair

HEADLAMP ASSEMBLY

Removal and Installation

NOTE: Make sure that the headlamp switch and the ignition switch are in the OFF position.

1. Remove the front bumper cover.

NOTE: Pull headlamp assembly forward to access electrical connectors.

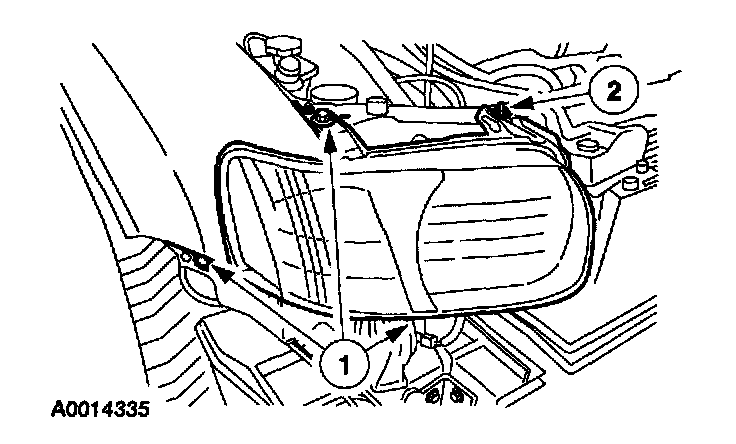

2. Remove the headlamp assembly.
1. Remove the three bolts.
2. Loosen the nut.
3. Disconnect the electrical connectors.

3. To install, reverse the removal procedure.
1. If necessary, adjust the headlamps.
