Output Shaft: Service and Repair
Oil Seal RemovalRemoval 1.
Remove the
companion flange.
2.

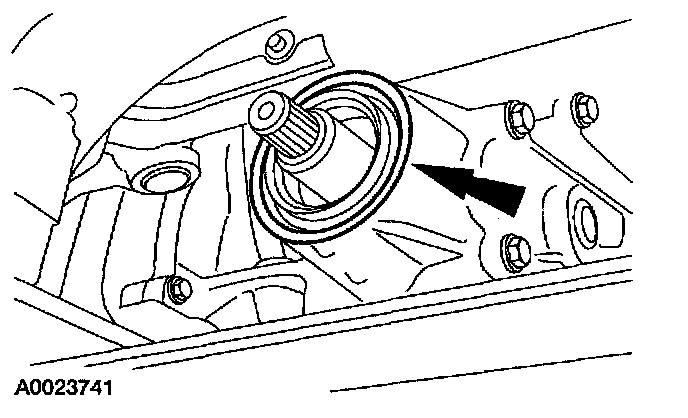

Remove the power take off
(PTO) unit rear output shaft (pinion) seal.
Installation 1.

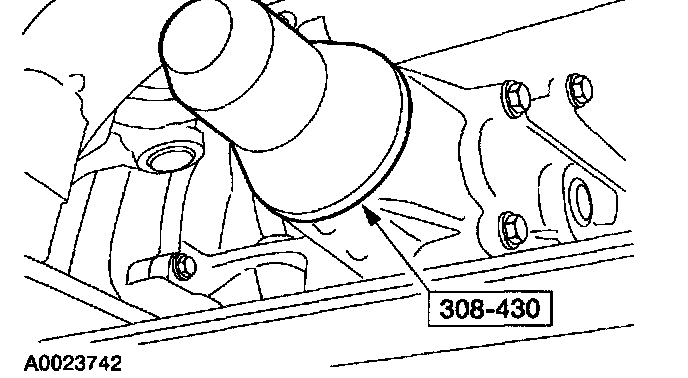

Using the special tool, install the power take off
(PTO) unit rear output shaft (pinion) seal.
2.
Install the
companion flange.
3.
Fill the power take off
(PTO) unit.
