Trunk Compartment Covering

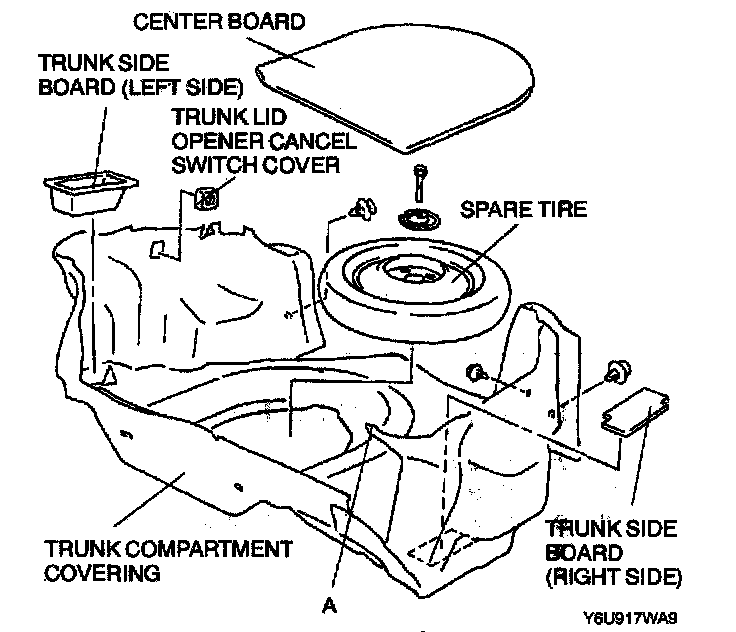

TRUNK COMPARTMENT COVERING REMOVAL/INSTALLATION 1.
Remove the center board and the spare tire.
2.
Remove the trunk side board.
3.
Remove the trunk end trim.
4.
Remove the fasteners.
5.
Disengage the part of trunk compartment covering A from the corner plate to remove it.
6.
Remove the trunk lid opener cancel switch cover.
7.
Install in the reverse order of removal.
