Shift Interlock Cable: Testing and Inspection
INTERLOCK CABLE INSPECTION 1.
Remove the interlock cable and lock unit.
2.

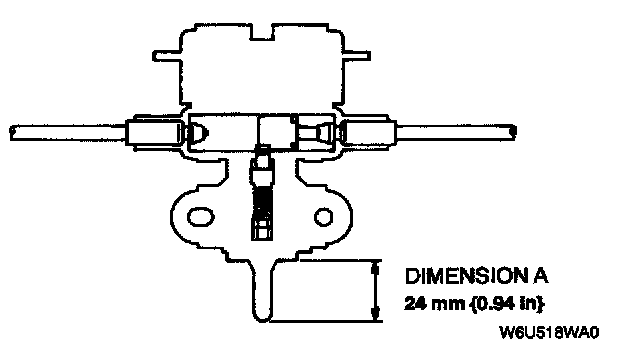

With the slider pin protrusion (dimension A) as specified below, verify that the interlock cable moves freely in the lock unit.
^
If not as specified, replace the interlock cable.
3.
Install the interlock cable and lock unit.
