Trouble Code Descriptions

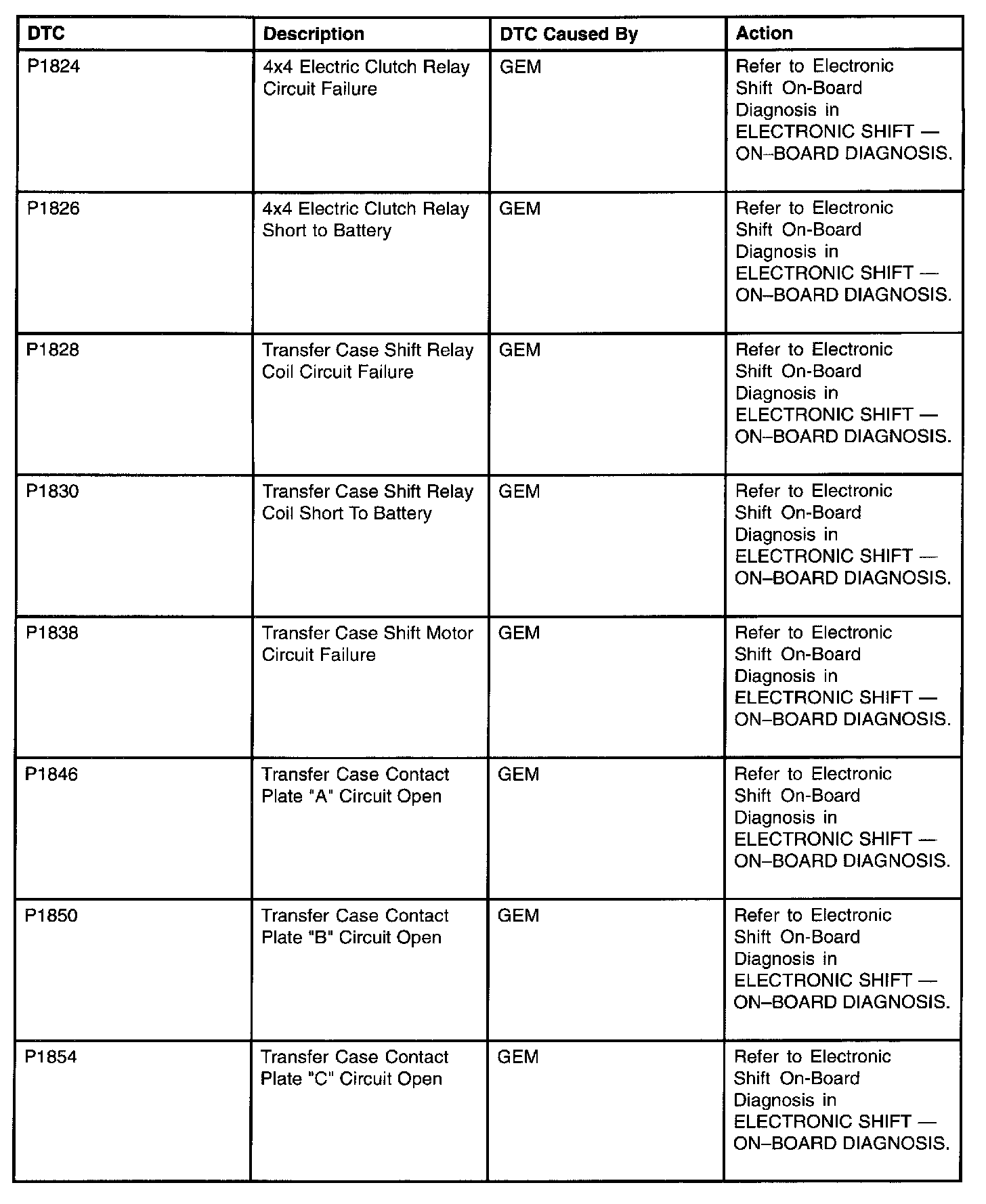

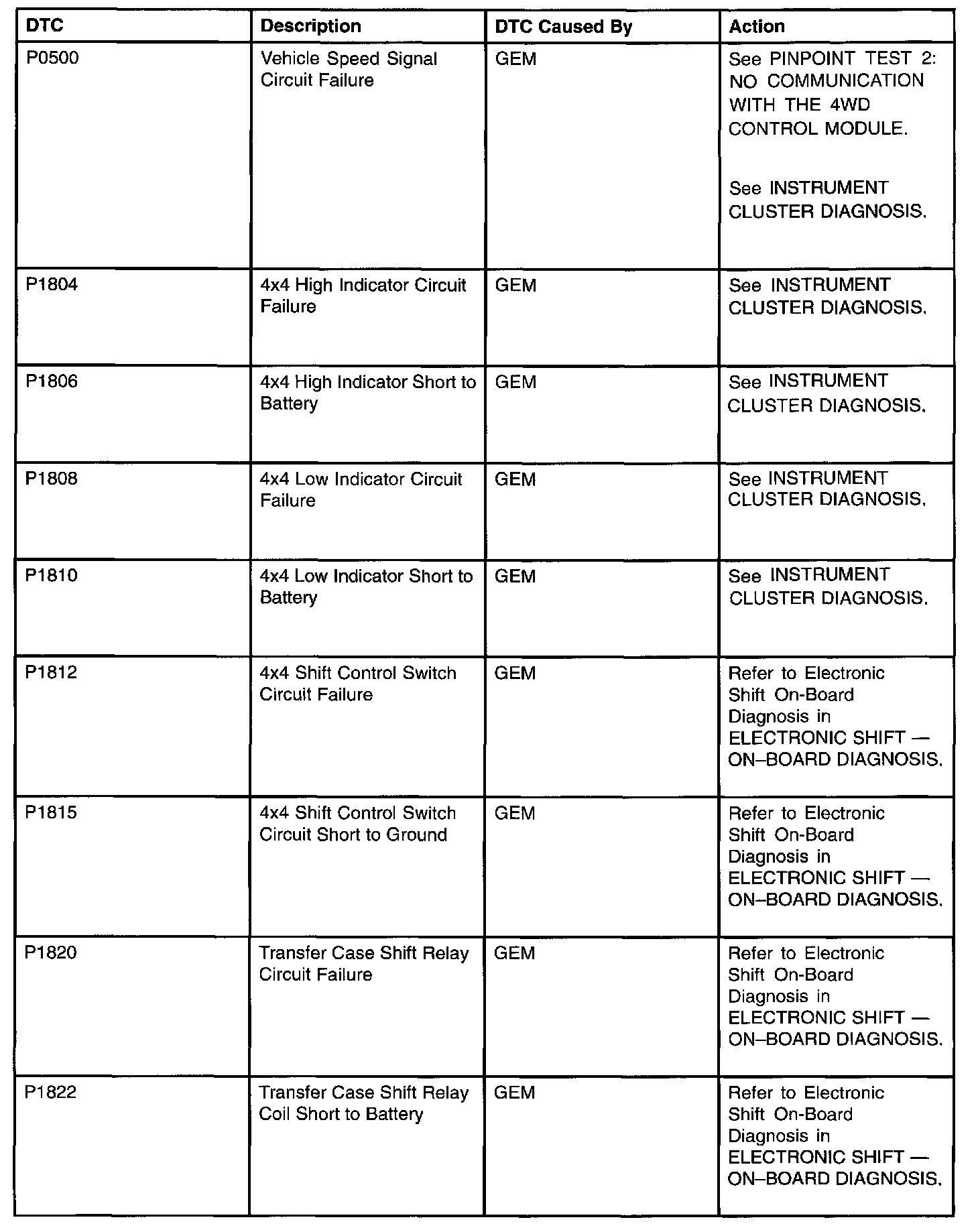

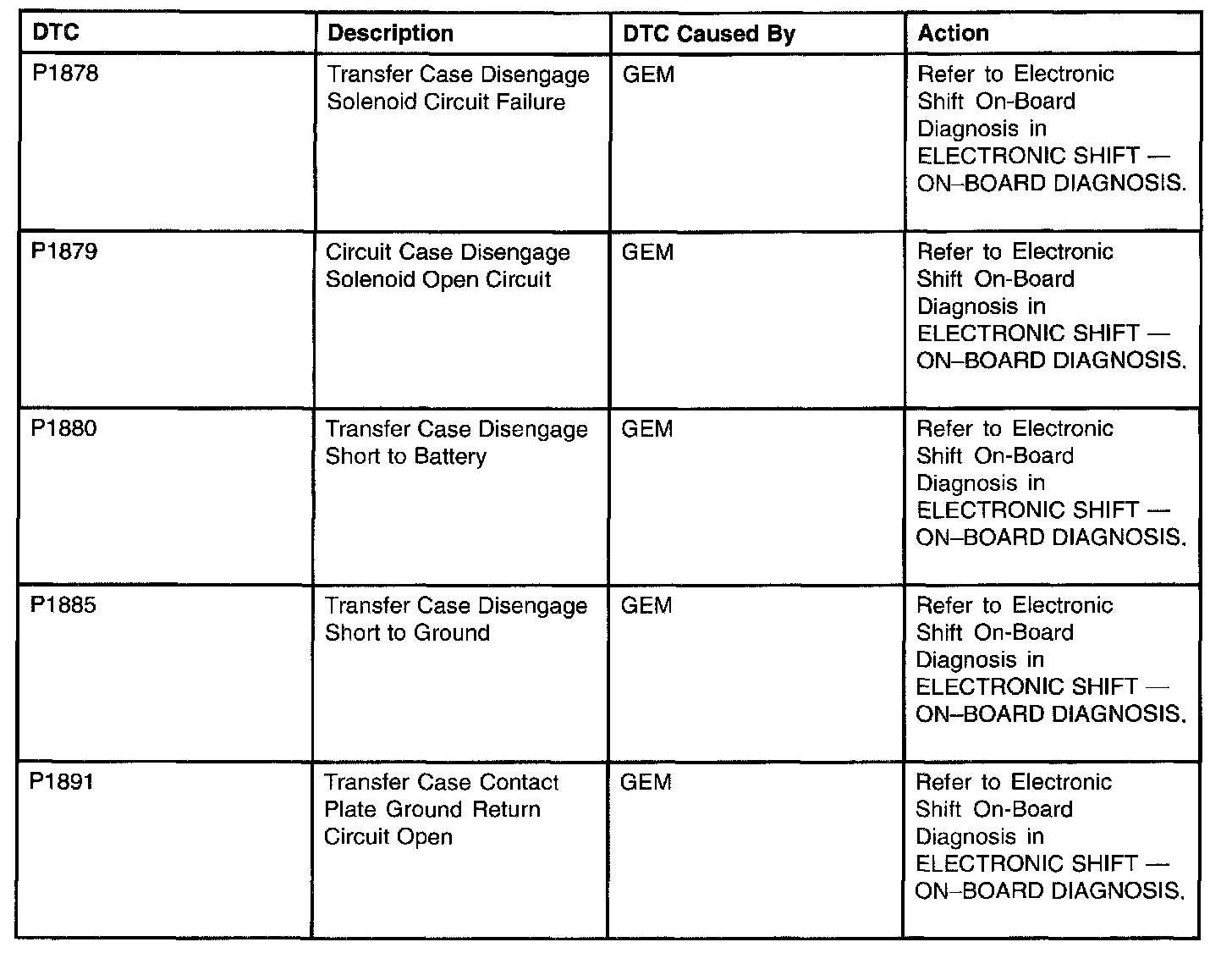

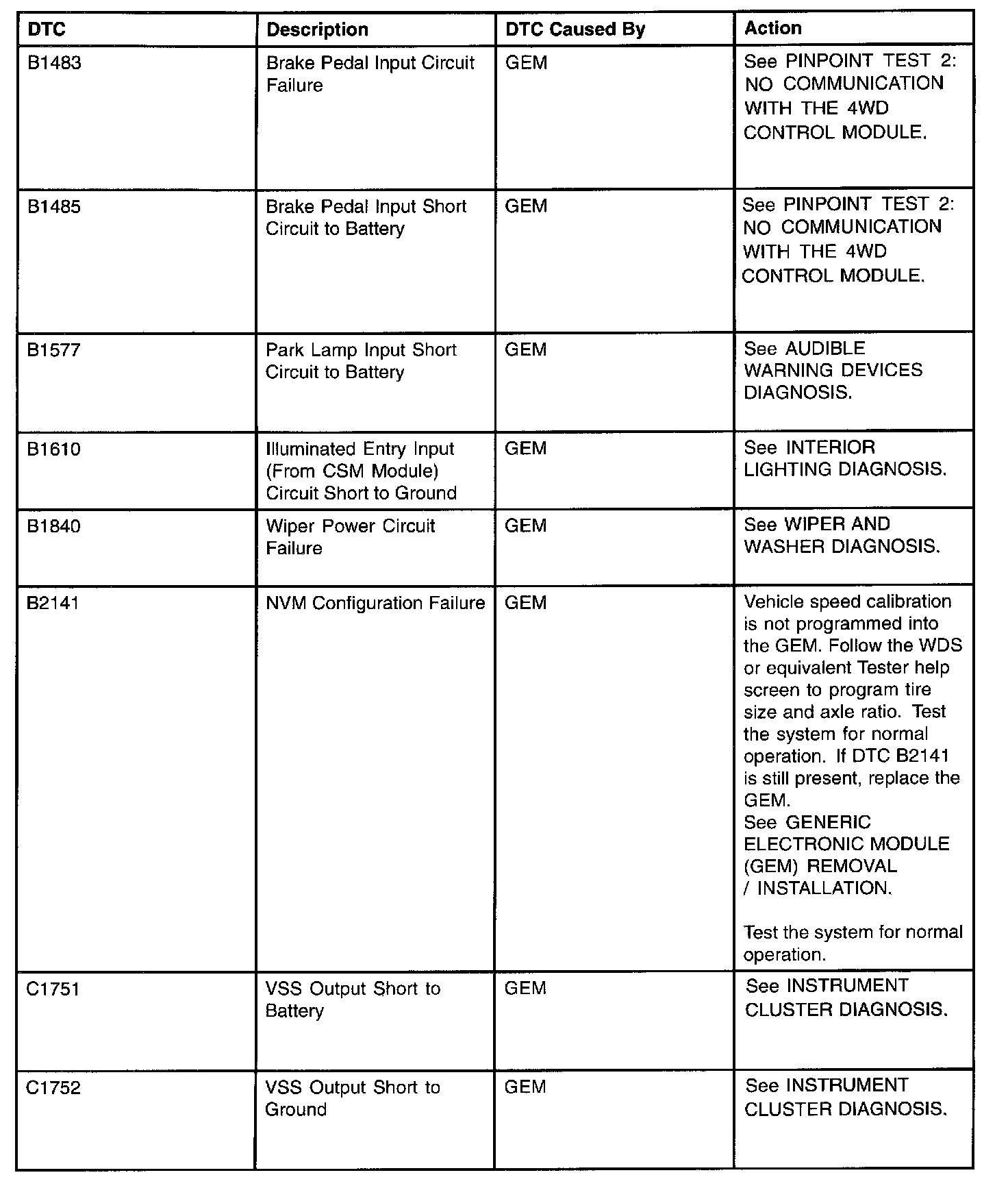

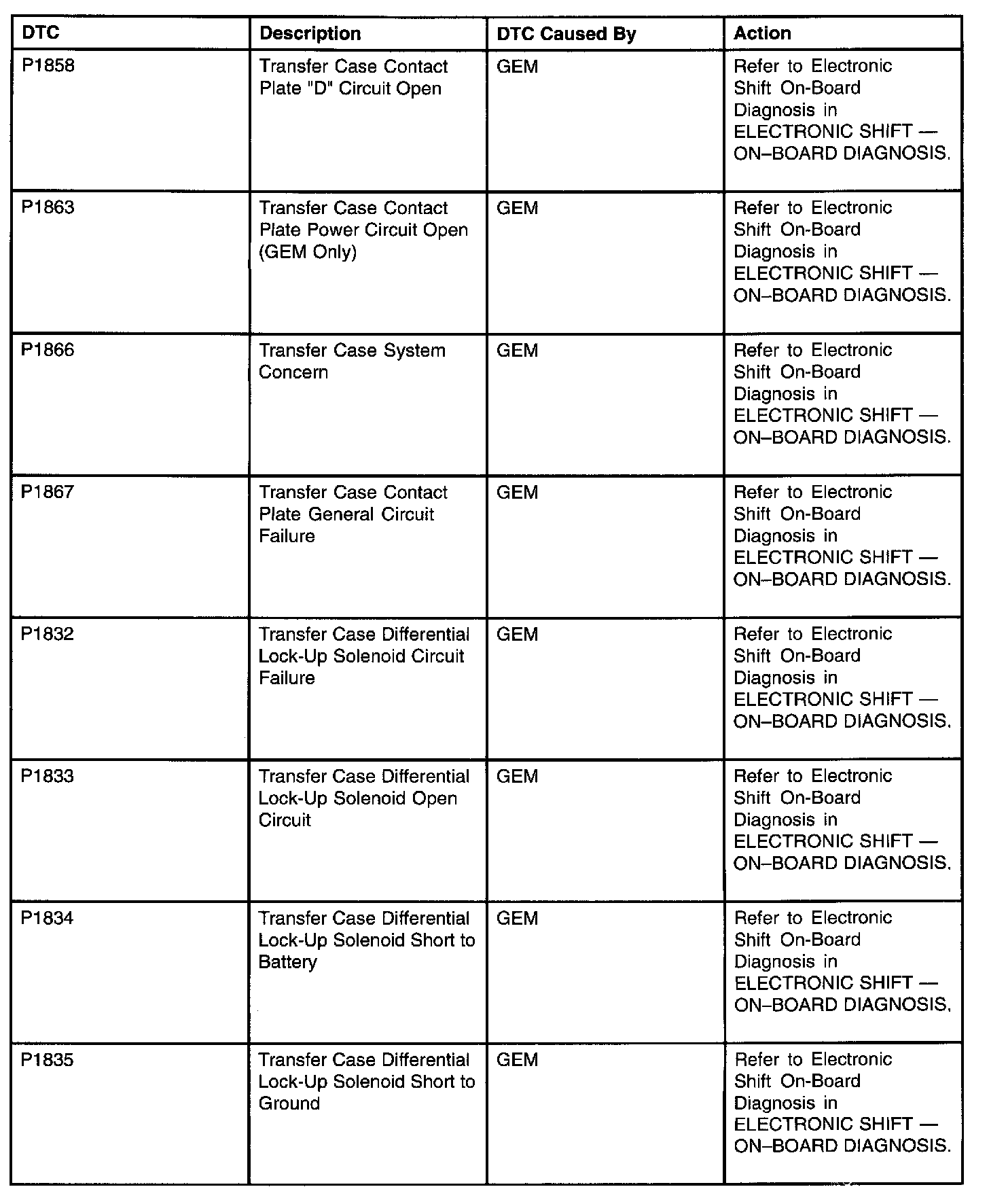

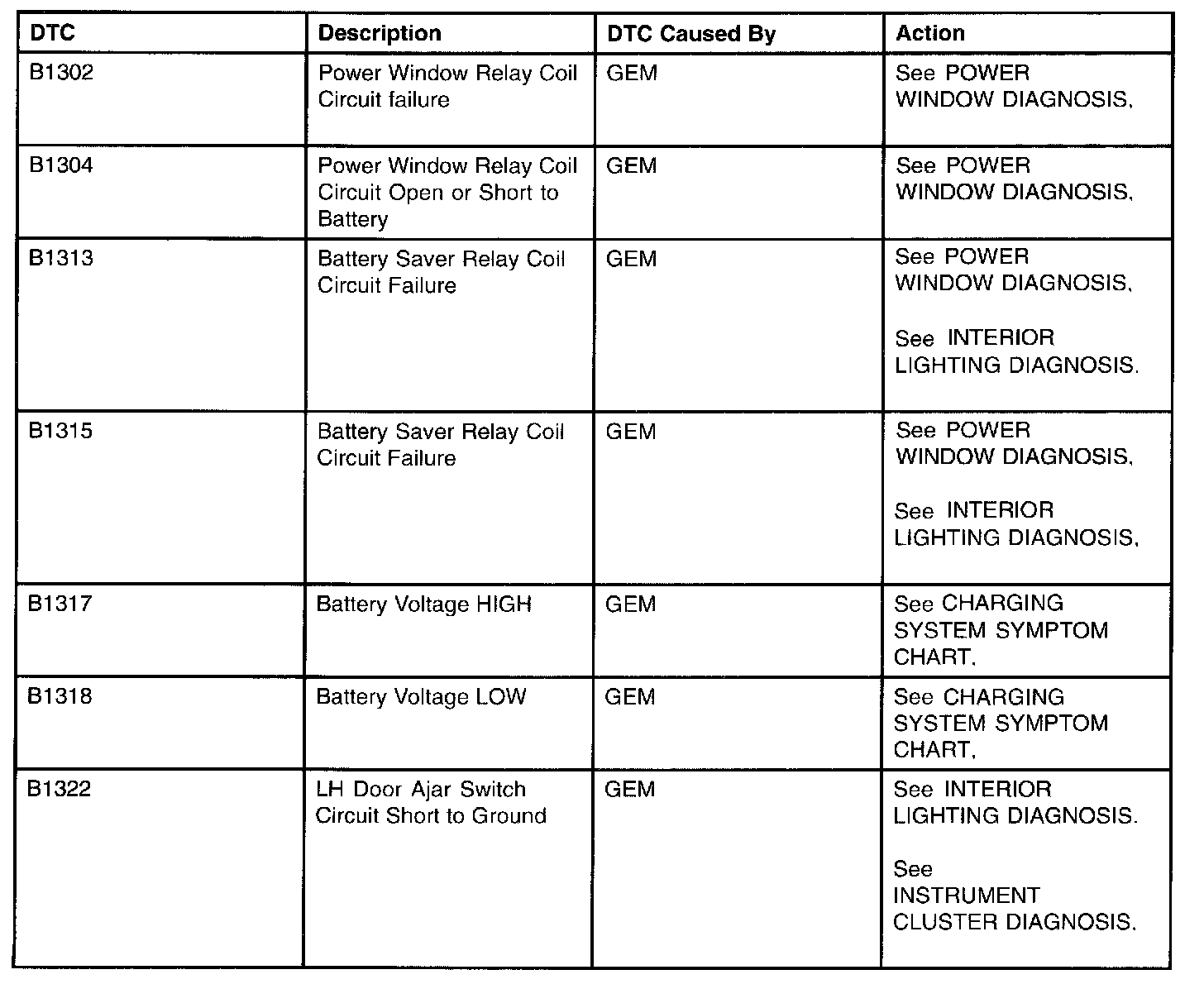

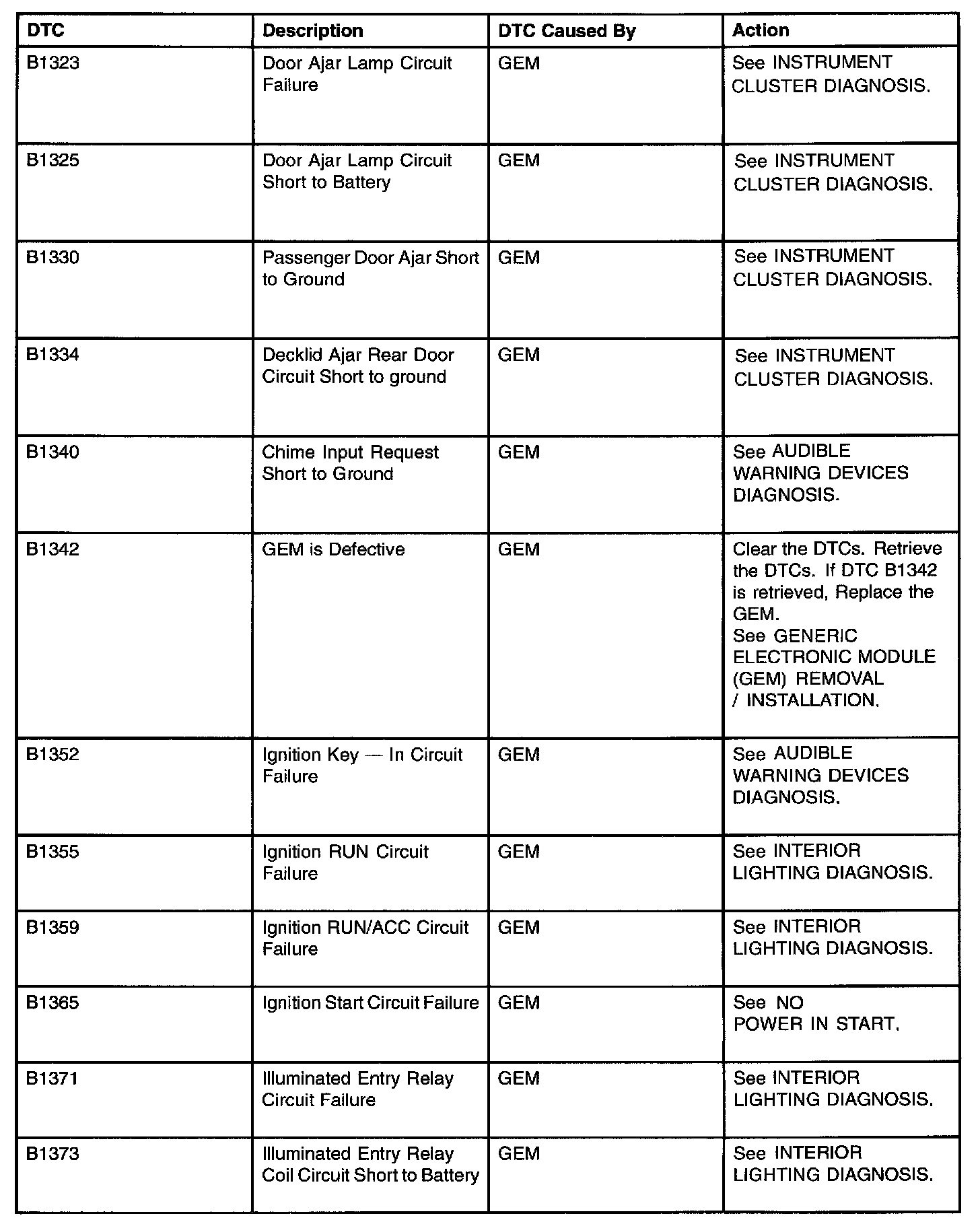

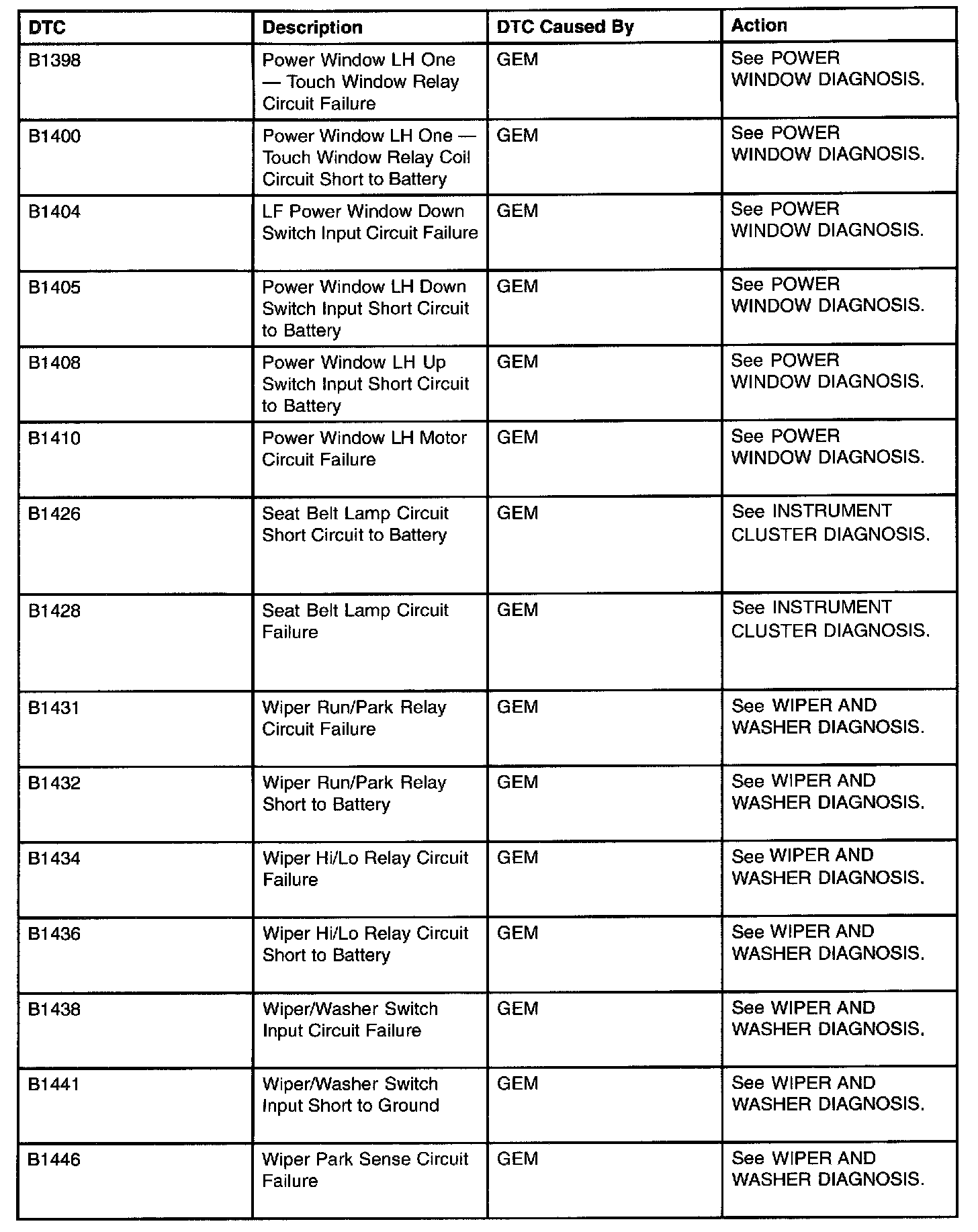

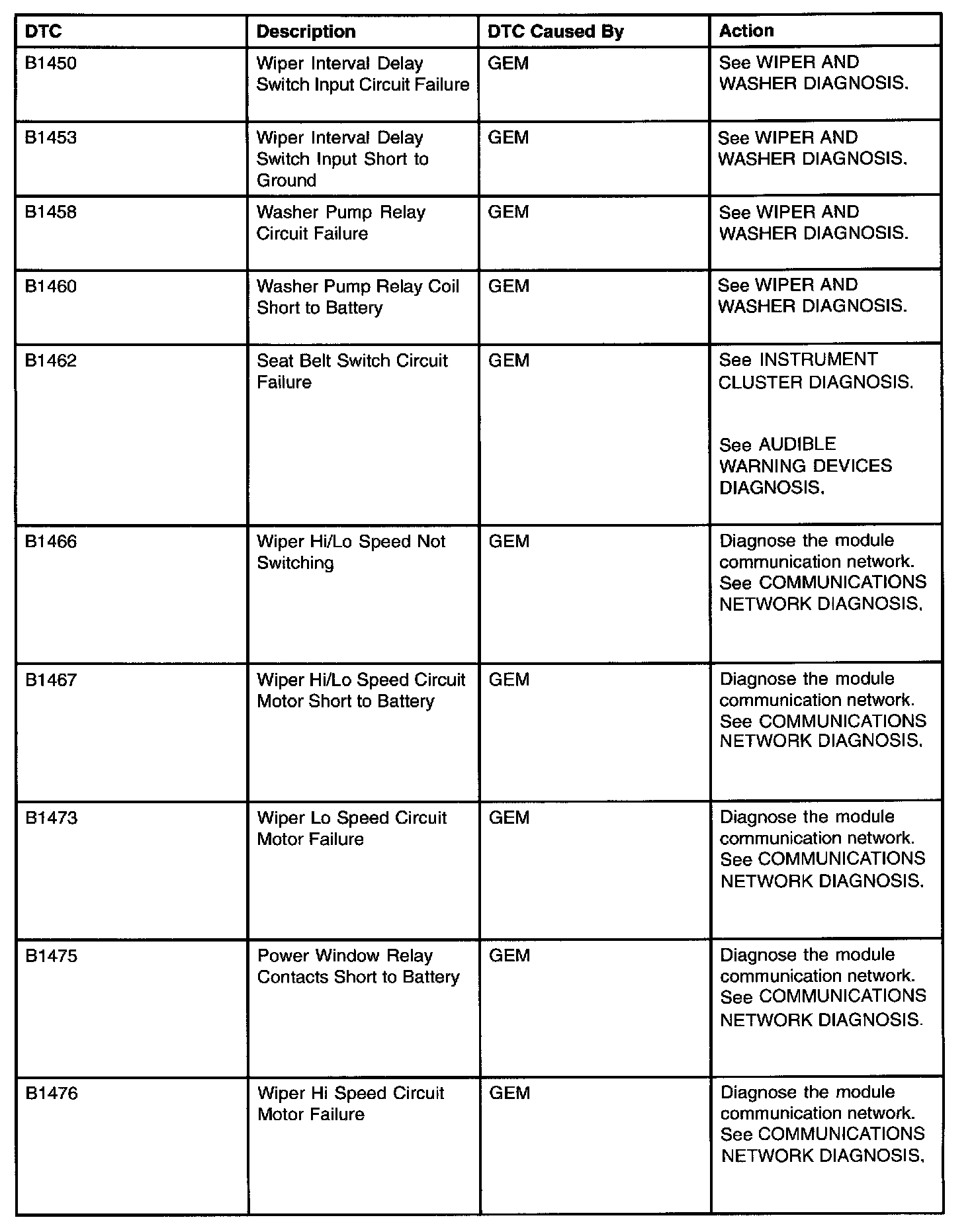

GEM Diagnostic Trouble Code (DTC) Index Part 1:

GEM Diagnostic Trouble Code (DTC) Index Part 2:

GEM Diagnostic Trouble Code (DTC) Index Part 3:

GEM Diagnostic Trouble Code (DTC) Index Part 4:

GEM Diagnostic Trouble Code (DTC) Index Part 5:

GEM Diagnostic Trouble Code (DTC) Index Part 6:

GEM Diagnostic Trouble Code (DTC) Index Part 7:

GEM Diagnostic Trouble Code (DTC) Index Part 8:

GEM Diagnostic Trouble Code (DTC) Index Part 9:

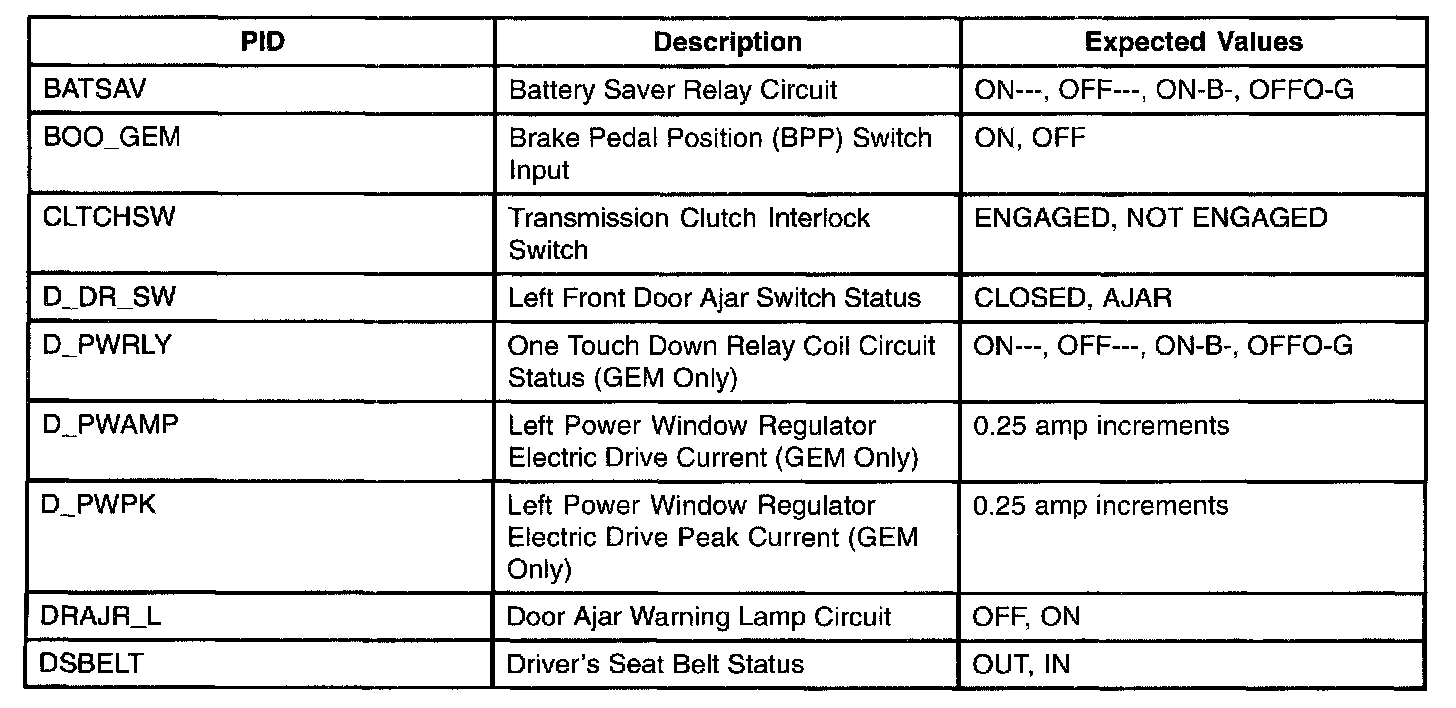

GEM Parameter Identification (PID) Index Part 1:

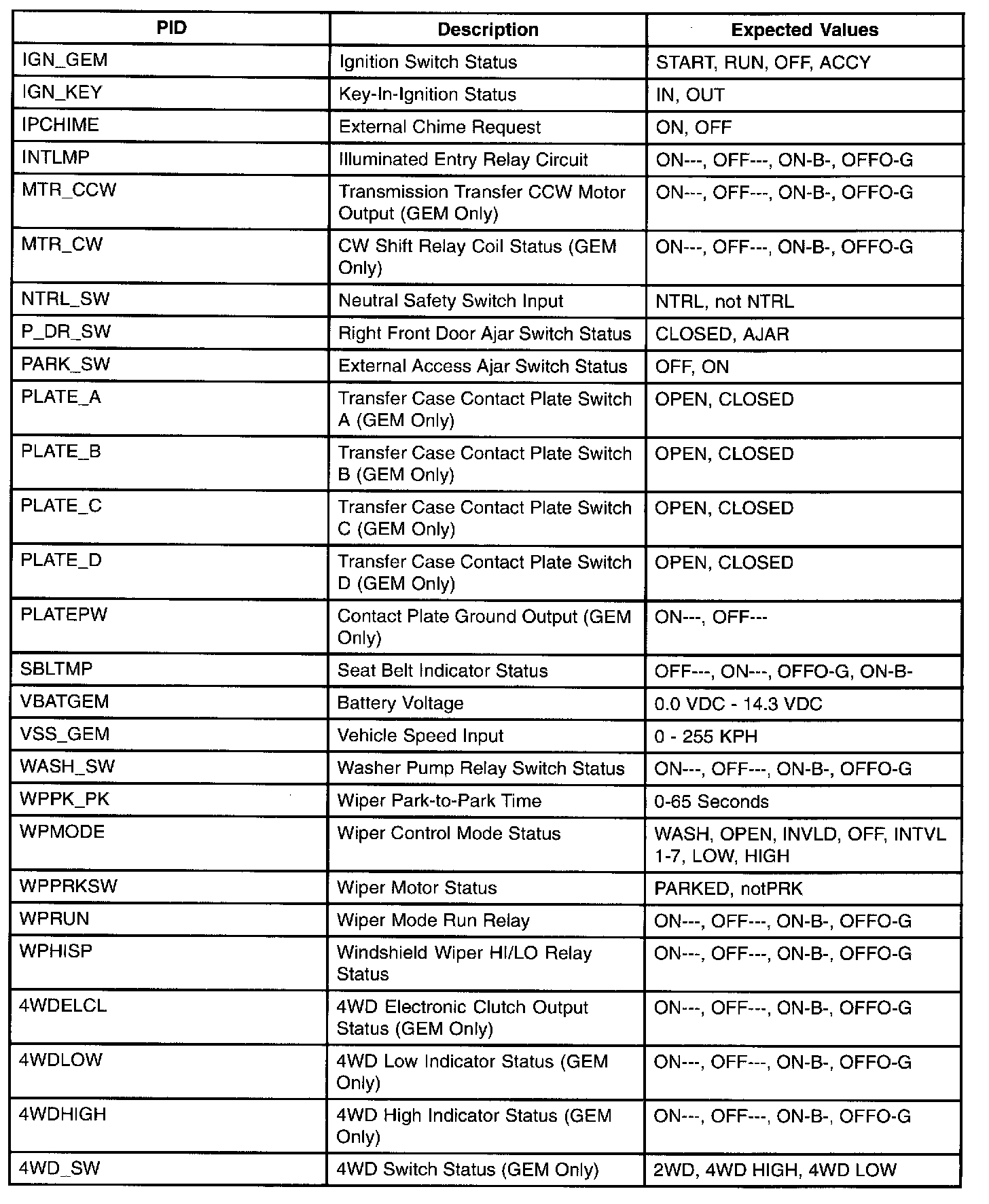

GEM Parameter Identification (PID) Index Part 2:

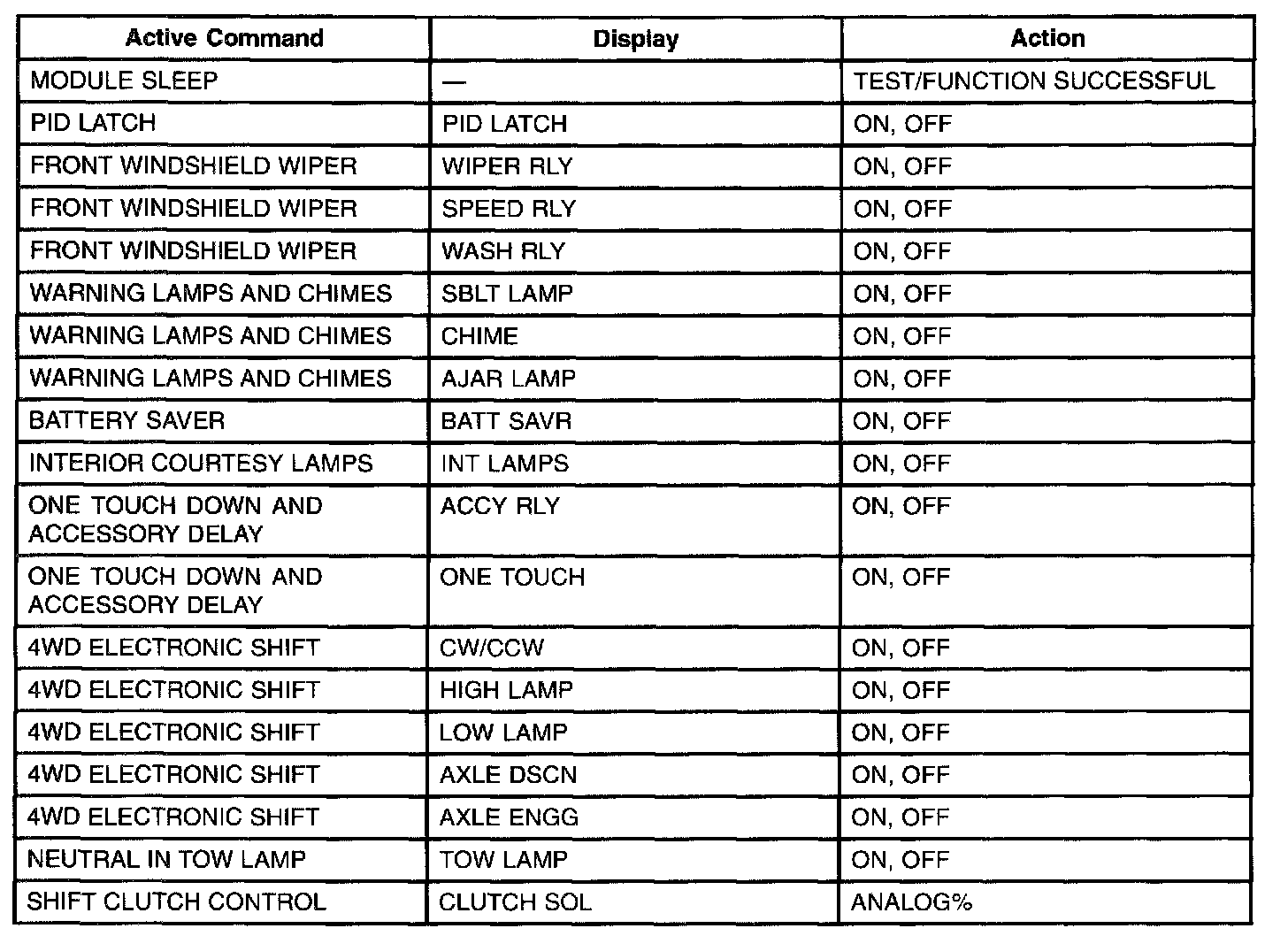

GEM Active Command Index:

GEM Wiggle Test Diagnostic Trouble Code (DTC) Index Part 1:

GEM Wiggle Test Diagnostic Trouble Code (DTC) Index Part 2:
