Intake Air Temperature (IAT) Sensor

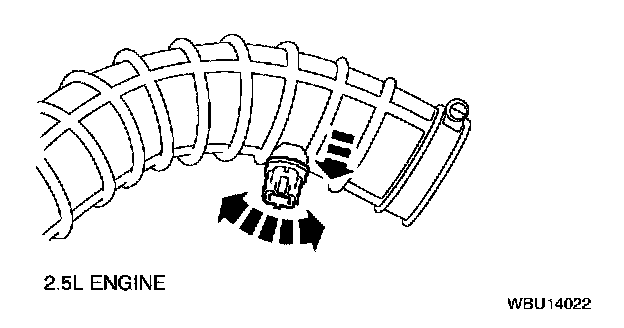

INTAKE AIR TEMPERATURE (IAT) SENSOR REMOVAL/INSTALLATION




1. Disconnect negative battery cable.
2. Disconnect IAT sensor connector.
3. Remove the IAT sensor.
4. Install in reverse order of removal.
