Crankshaft Position Sensor: Service and Repair

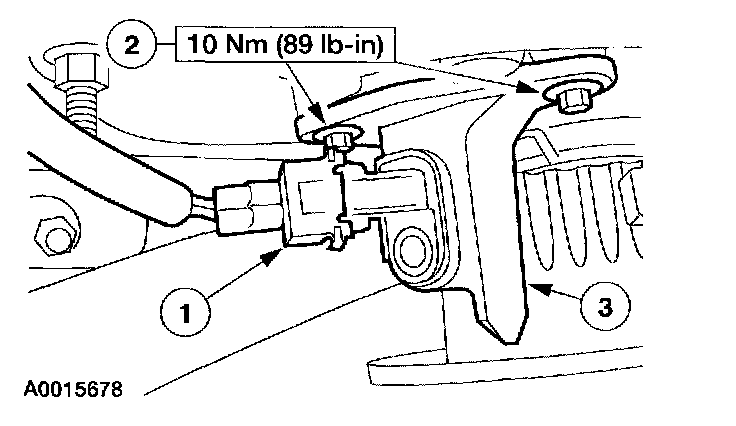

Removal and Installation 1.
Remove the crankshaft position (CKP) sensor.
1.
Disconnect the electrical connector.
2.
Remove the bolts.
3.
Remove the sensor.
NOTE: The new CKP sensor must be touching the damper. The new sensor has wear tabs that will wear off after several engine revolutions.
2.
To install, reverse the removal procedure.
