Turn Signal Flasher: Testing and Inspection

FLASHER CONTROL MODULE INSPECTION

1. Remove the bracket and pull it toward you.

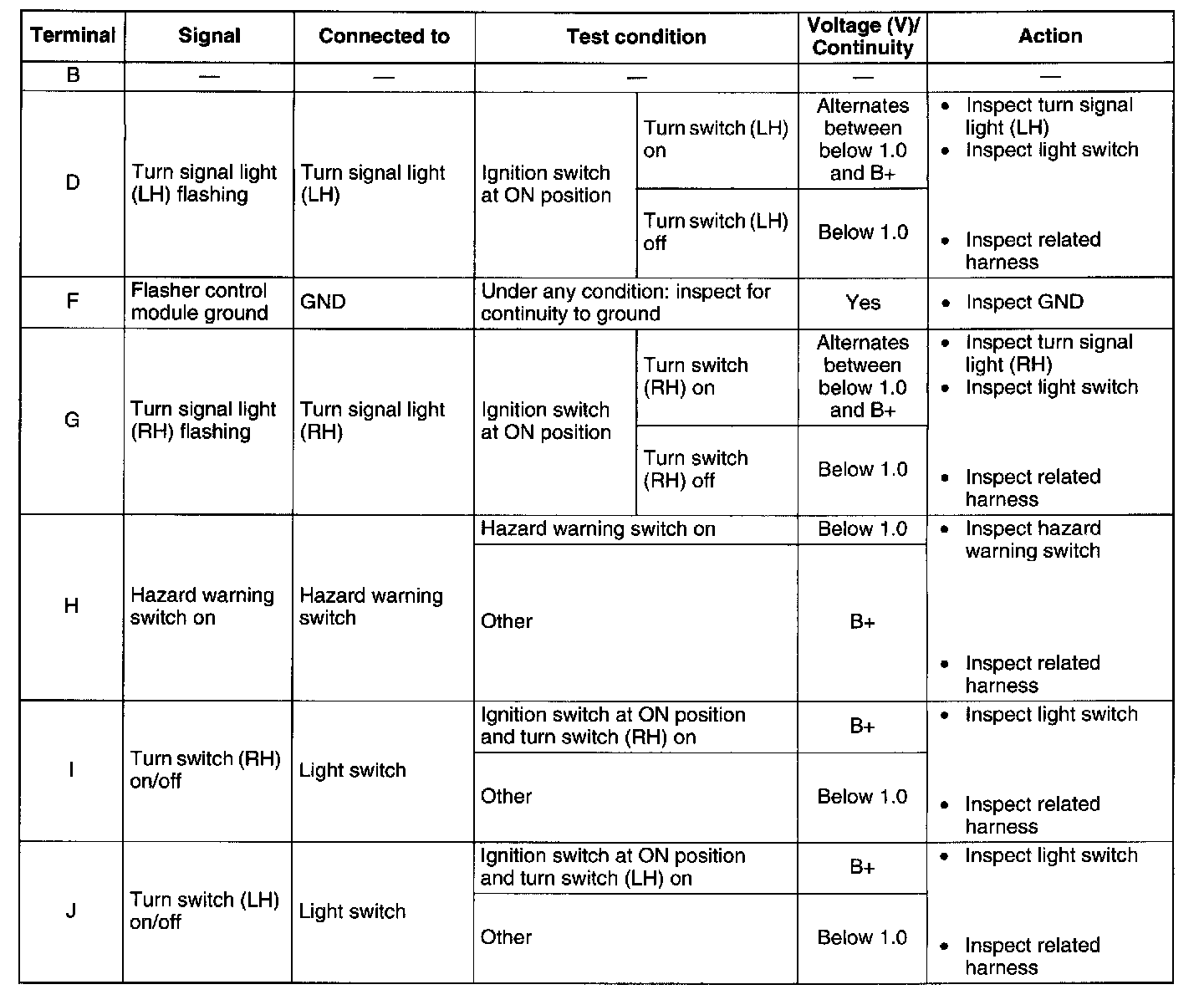

Terminal Voltage Table (Reference) Part 1:

Terminal Voltage Table (Reference) Part 1:

2. Measure the voltage at the flasher control module terminals as indicated.
3. Disconnect the flasher control module connector before inspecting for continuity at terminal F.
- If not as specified, inspect the parts listed under "Action."
- If the parts and wiring harnesses are okay but the system still does not work properly, replace the flasher control module.
