Power Mirror Switch: Service and Repair

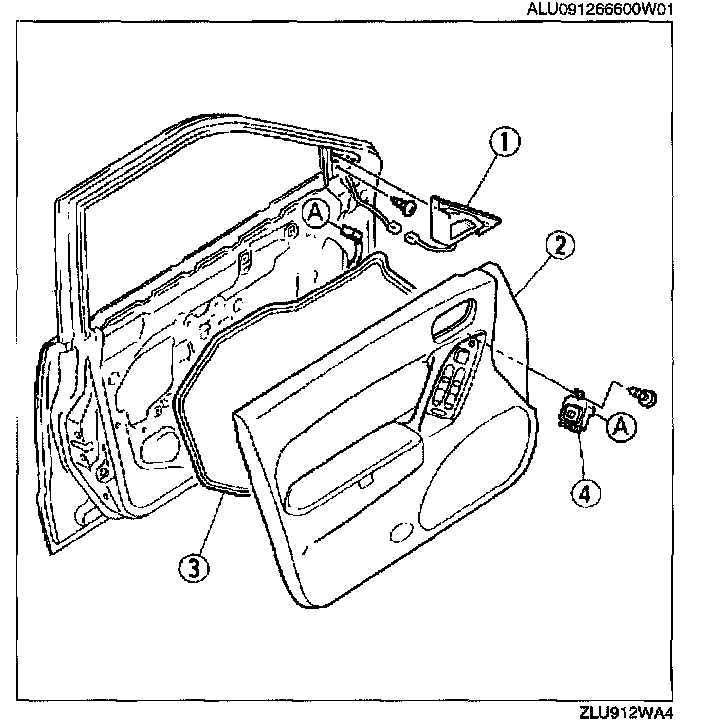

POWER OUTSIDE MIRROR SWITCH REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Remove in the order as indicated below.
1.
Inner garnish
2.
Front door trim
3.
Door screen
4.
Power outside mirror switch
3.
Install in the reverse order of removal.
Door Screen Removal Note 1.
Remove the door screen carefully so that it can be reused.
