Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection
INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION 1.
Remove the IAT sensor.
ECT Sensor Signal Characteristic:
2.

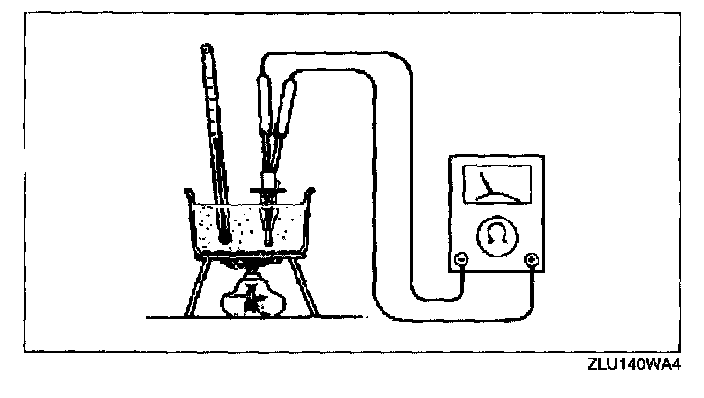

Measure the resistance of the sensor using an ohmmeter.
-

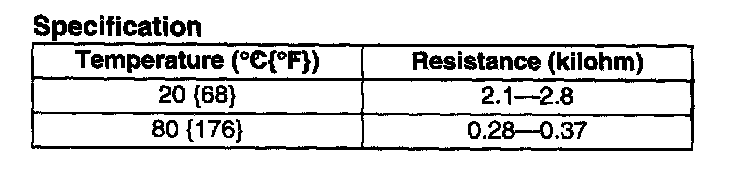

If not as specified, replace the IAT sensor.

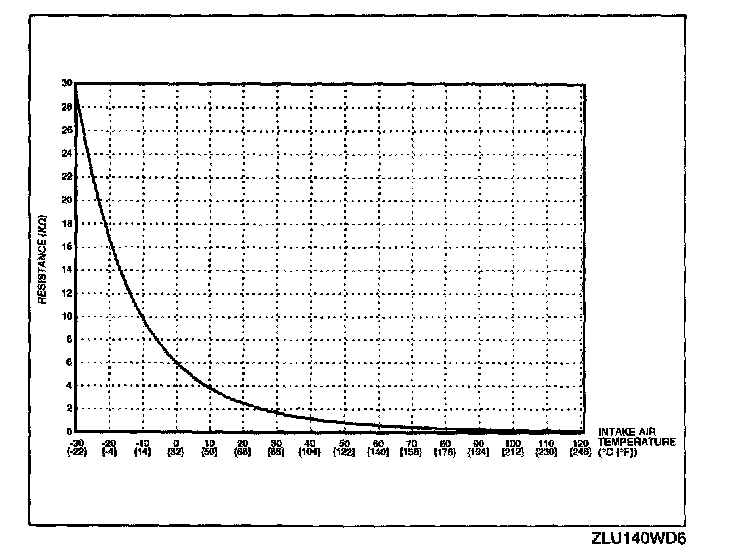

IAT sensor signal characteristic (Reference):
