Component Locations

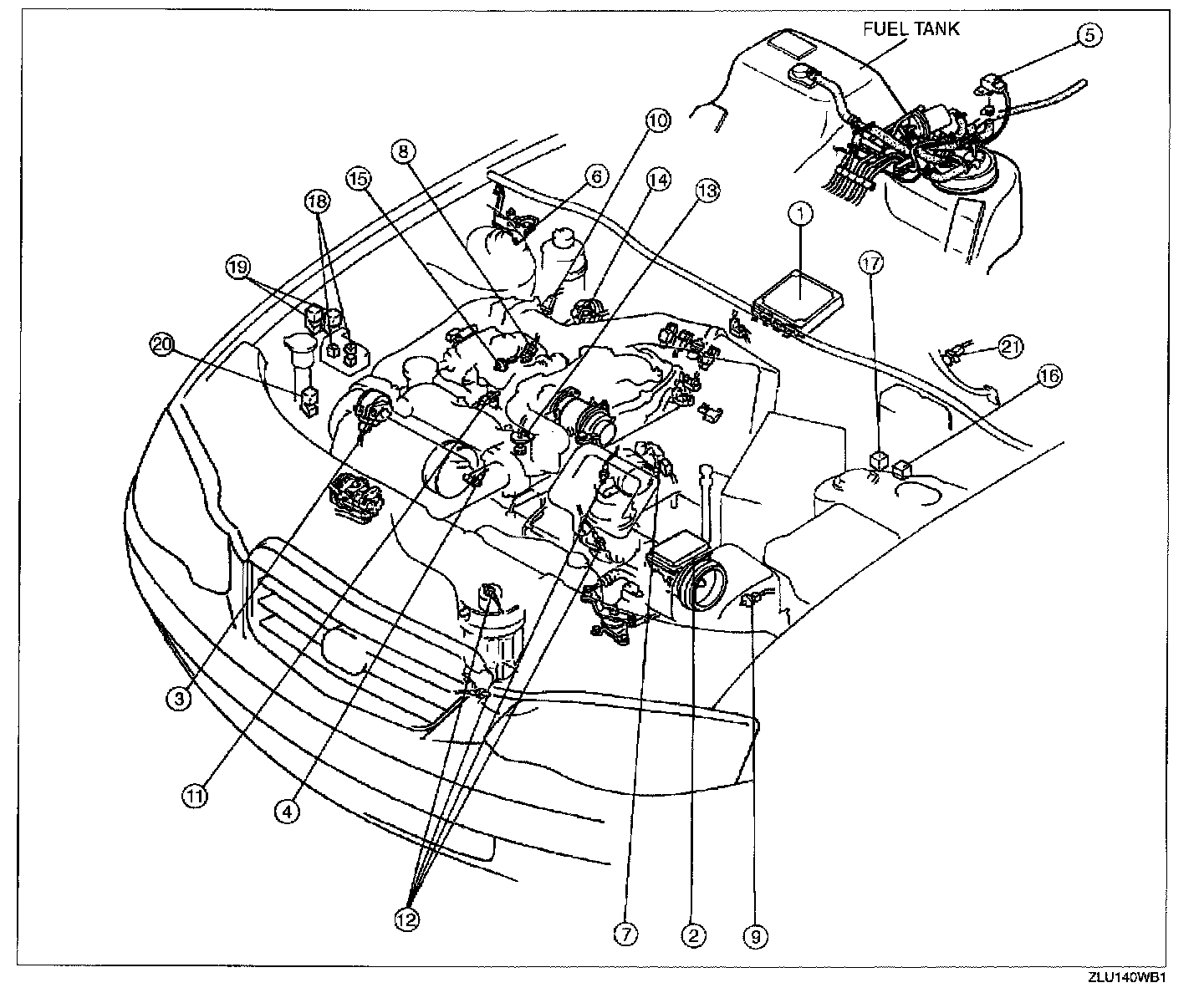

Control System Component Location Index:

1. PCM
2. MAF sensor
3. CMP sensor
4. CKP sensor
5. Fuel tank pressure sensor
6. MAP sensor
7. TP sensor
8. ECT sensor
9. IAT sensor (Air cleaner)
10. IAT sensor (Dynamic chamber)
11. IAT sensor L/C)
12. HO2S (front, rear)
13. Knock sensor
14. EGR valve position sensor
15. PSP switch
16. Main relay
17. Fuel pump relay
18. Cooling fan relay
19. Condenser fan relay
20. A/C relay
21. Brake switch
