IGT Control Signal

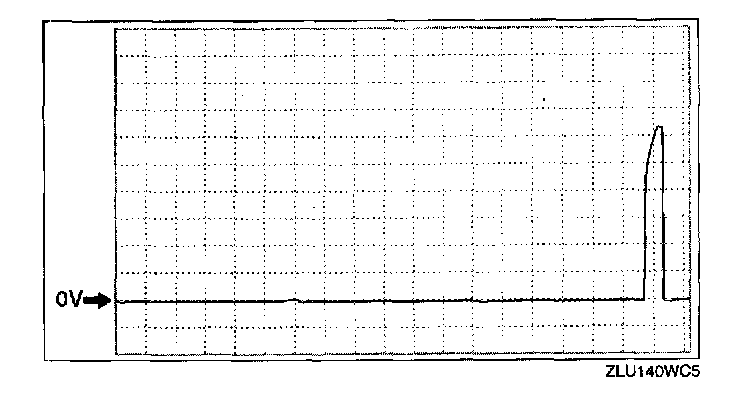

INSPECTION USING AN OSCILLOSCOPE (REFERENCE)IGT Control Signal -
PCM terminal
-
No.1: 4S(+) - 4AF(-)
-
No.2: 4W(+) - 4AF(-)
-
No.3: 4AA(+) - 4AF(-)
-
No.4: 4AE(+) - 4AF(-)
-
No.5: 4A1(+) - 4AF(-)
-
No.6: 4AM(+) - 4AF(-)
-
Oscilloscope setting:
0.5 V/DIV (Y),
5 ms/DIV (X), DC range
-
Vehicle condition: idle after warm up
