Engine General Specifications
General engine specificationsValve clearance ref to Valve Clearance Valve Clearance
Engine torque specifications
Camshaft Cap bolts 11.3 - 14.2 Nm {100 - 125 in-lbf}
Cylinder head bolts
Stage 1 (2 or 3 steps in sequence) 23.1 - 25.9 Nm {17.0 - 19.1 ft-lbf}
Stage 2 (In sequence) 85 - 95 °
Stage 3 (In sequence) 85 - 95 °
Camshaft pulley boly 123 - 140 Nm
Cylinder head cover bolts 6.87 - 9.80 Nm
Engine tightening sequences - KJ

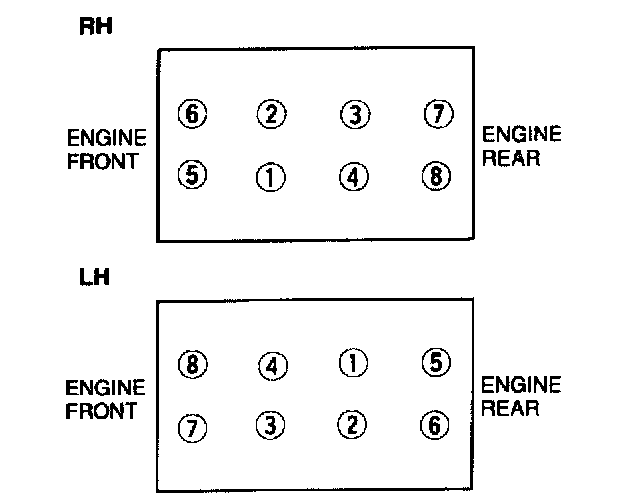

Cylinder head bolts

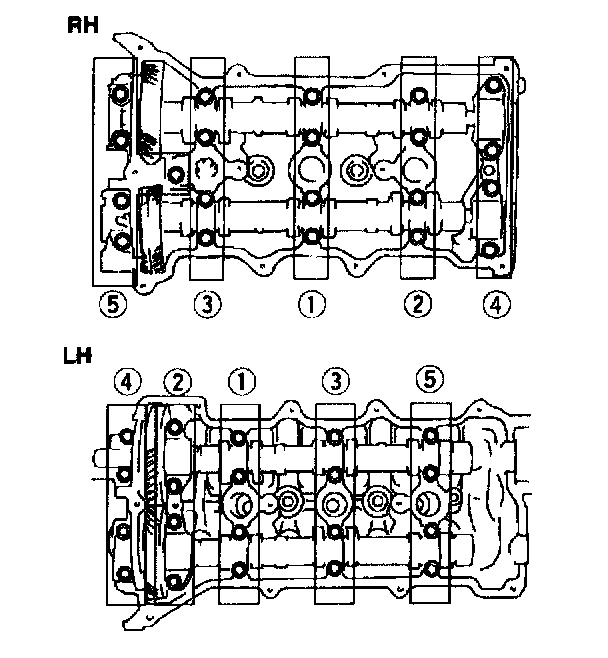

Camshaft cap bolts
Cylinder head cover

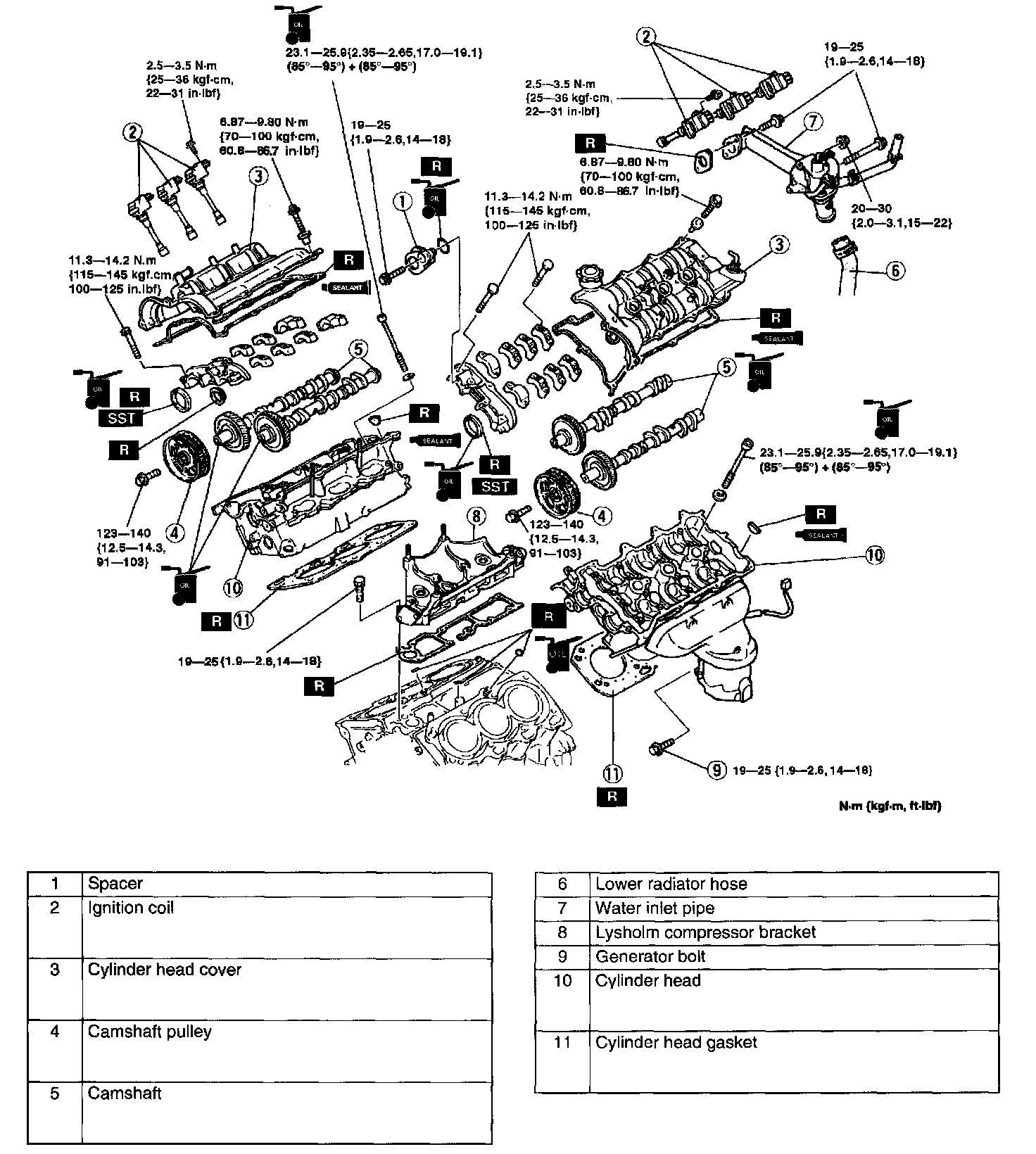

Engine tightening torque exploded views - KJ
Cylinder head gasket replacement
