4: PATS Received Invalid Format of Key-Code From Ignition Key

Step 1:

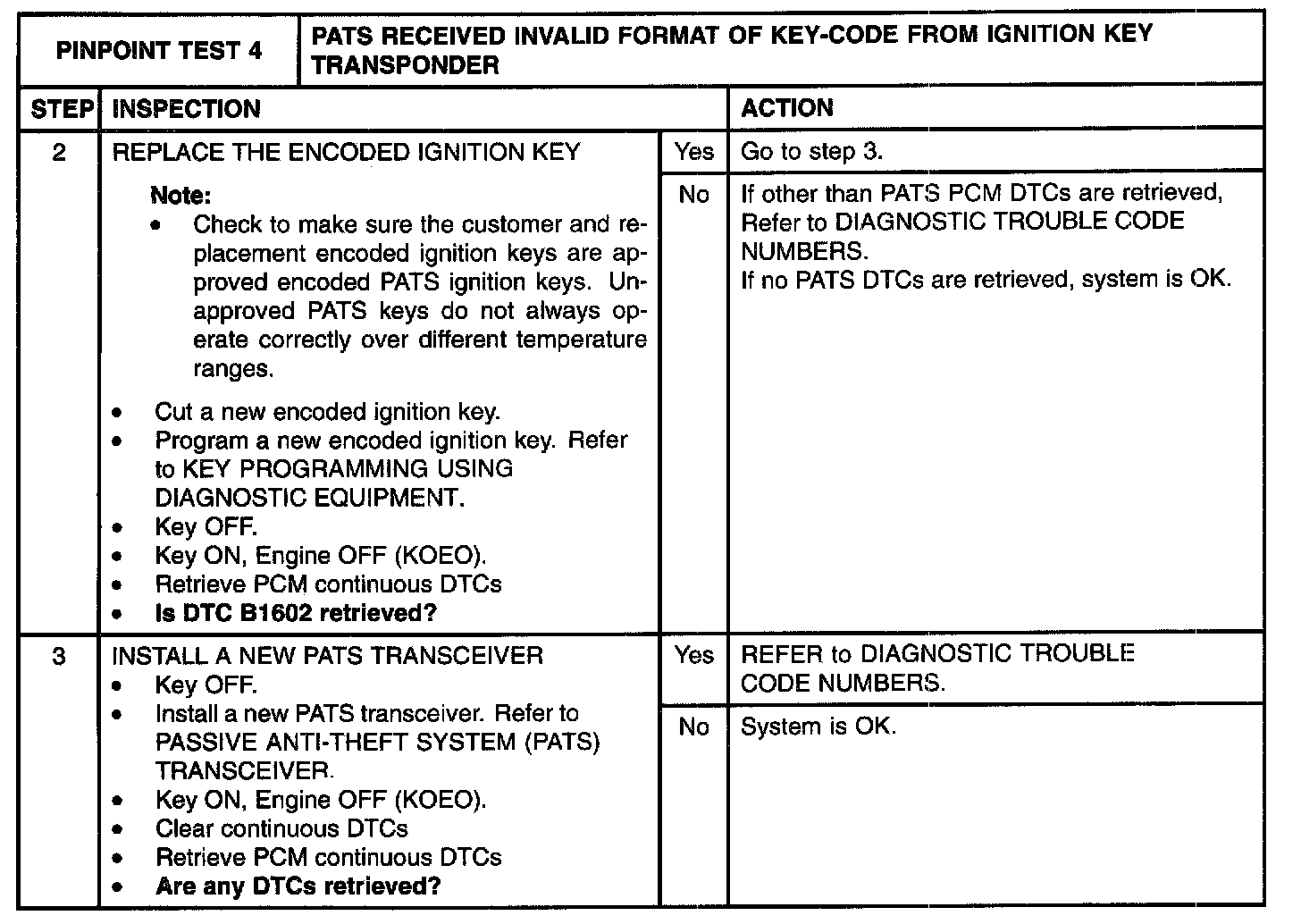

Step 2 - 3:

PINPOINT TEST 4: PATS RECEIVED INVALID FORMAT OF KEY-CODE FROM IGNITION KEY TRANSPONDER

NOTE: Large metallic objects, electronic devices on the key chain that can be used to purchase gasoline or similar items, or a second key on the same key ring as the passive anti-theft system (PATS) ignition key may cause vehicle starting concerns and record DTCs under certain conditions. If a fault cannot be identified, examine the customers key ring for such objects or devices. If present, inform the customer that they need to keep these objects from touching the PATS ignition key while starting the engine. These objects and devices cannot damage the PATS ignition key, but can cause a momentary problem if they are too close to the key during engine start. If a problem occurs, turn ignition OFF and restart the engine with all other objects on the key ring held away from the ignition key. Check to make sure the encoded ignition key used by the customer is an approved Mazda encoded ignition key.
