Heater Hose: Service and Repair
HEATER HOSE - 2.OL ZETECRemoval and Installation 1.
Drain the engine coolant. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING.
2.

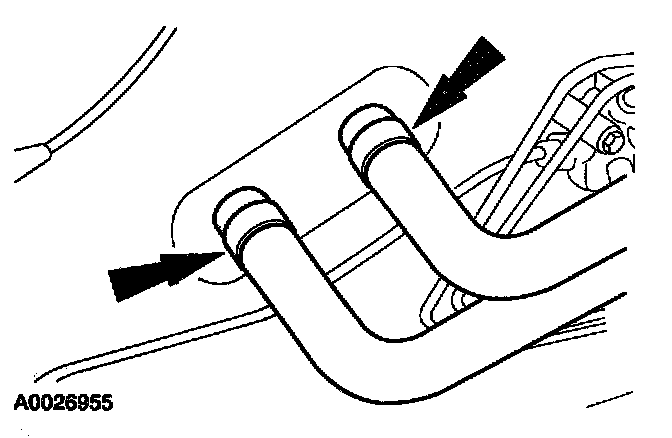

Disconnect the
heater hoses from the heater core.
3.

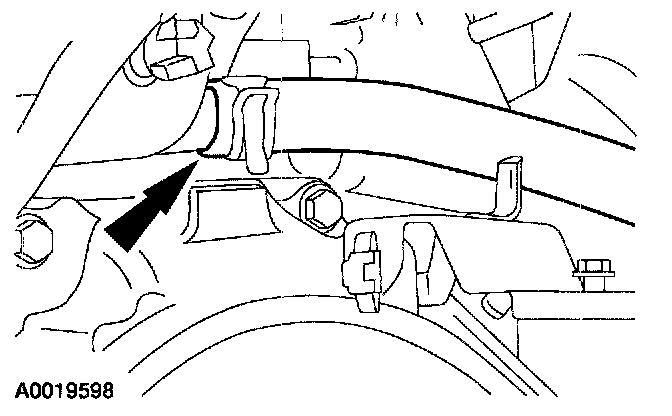

Disconnect the
heater hose from the hose connection.
4.
Remove the RH front wheel. For additional information, refer to WHEEL AND TIRE.
