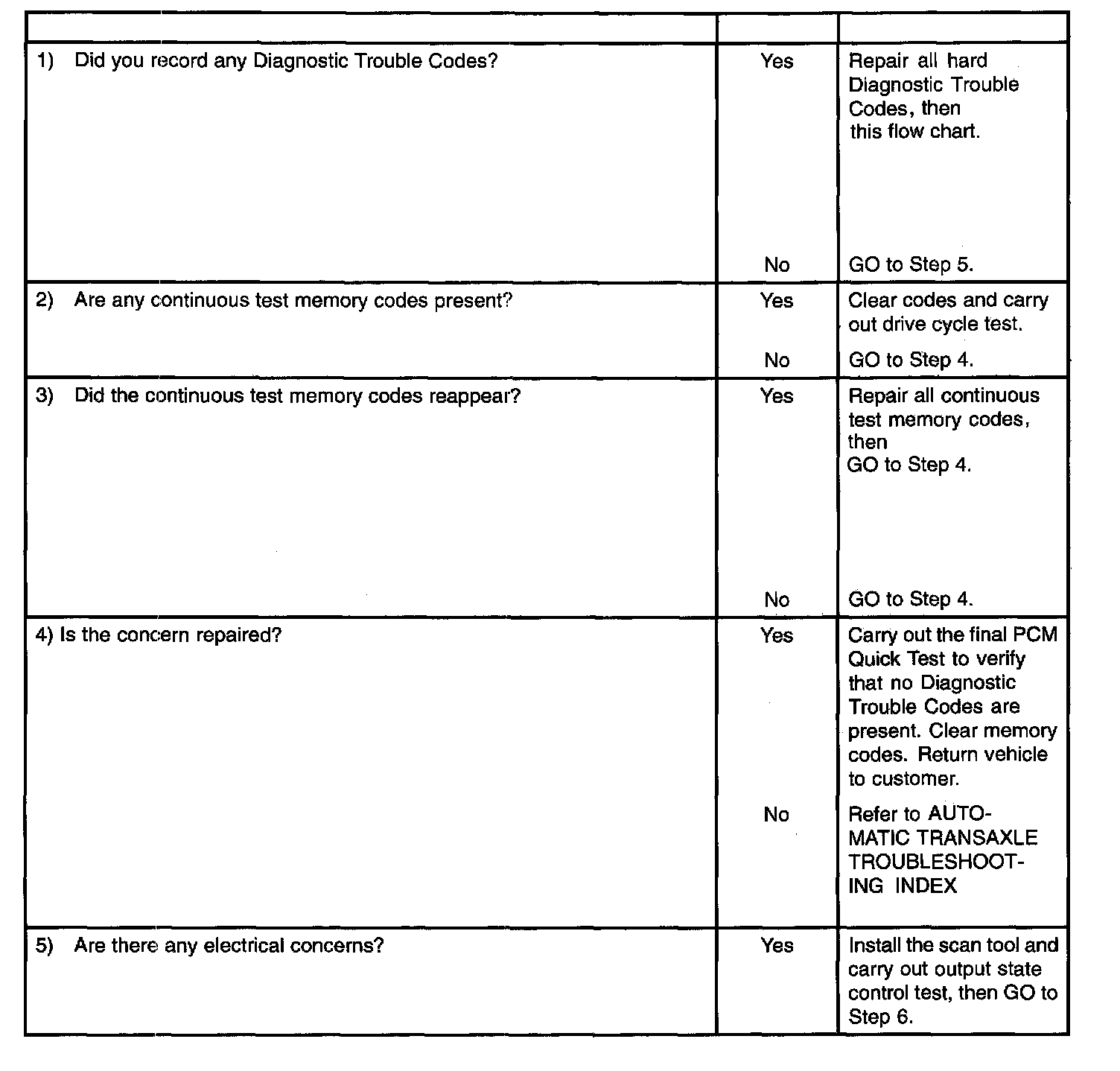

Diagnostic Flow Chart
DIAGNOSTIC: FLOW CHART -
Know and understand the customer concerns.
-
Check the fluid level and condition.
-
Verify the concern by operating the vehicle.
-
Check for non-factory installed items and verify correct installation.
-
Check the shift linkage adjustments.
-
Check TSBs and MAZDA TIPS messages for vehicle concerns.
-
Carry out quick test both KOER and KOEO.
-
Record all codes.

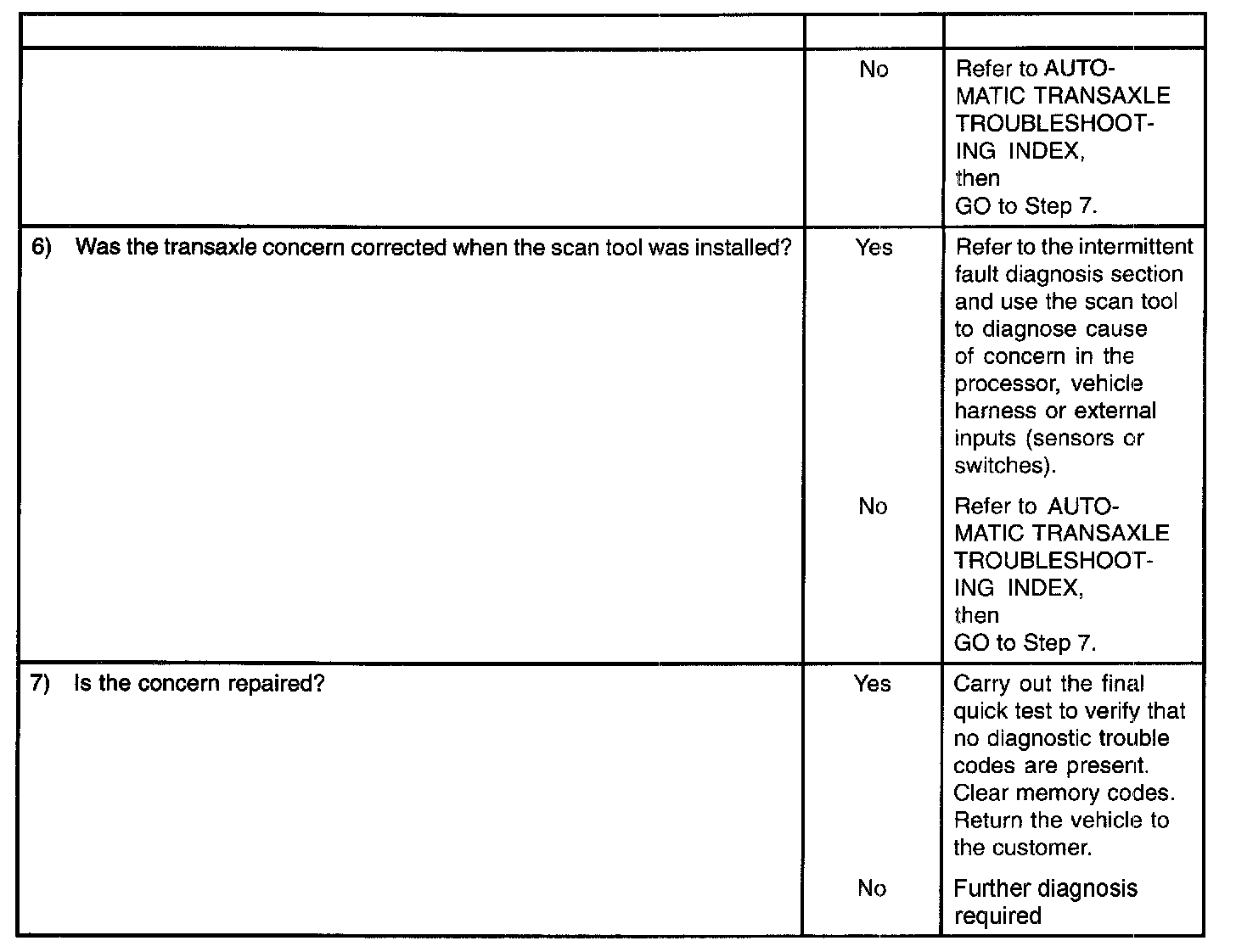

Diagnostic Flow Chart
