Combination Switch Removal/Installation
COMBINATION SWITCH REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Remove the driver-side air bag module.
3.
Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)
4.
Remove the column cover.
5.
Remove the clock spring.
6.

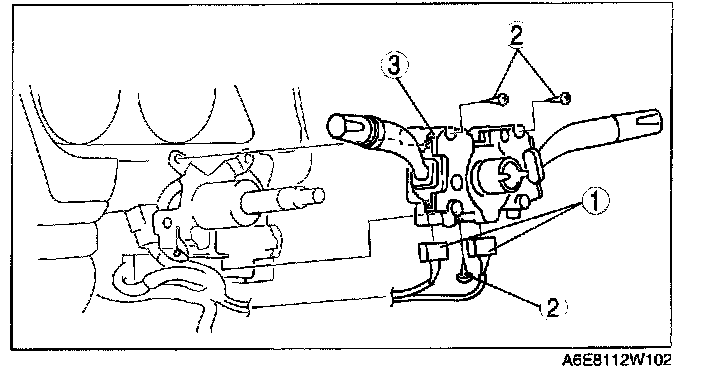

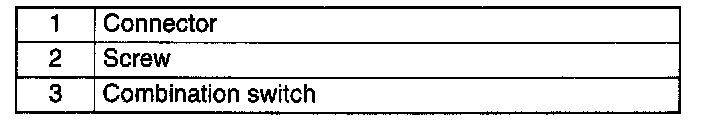

Remove in the order indicated in the table.
7.
Install in the reverse order of removal.
