Evaporative Emissions System: Service and Repair

EVAPORATIVE EMISSION (EVAP) CONTROL SYSTEM COMPONENT REMOVAL/INSTALLATION

1. Raise the rear of the vehicle and support it with safety stands.

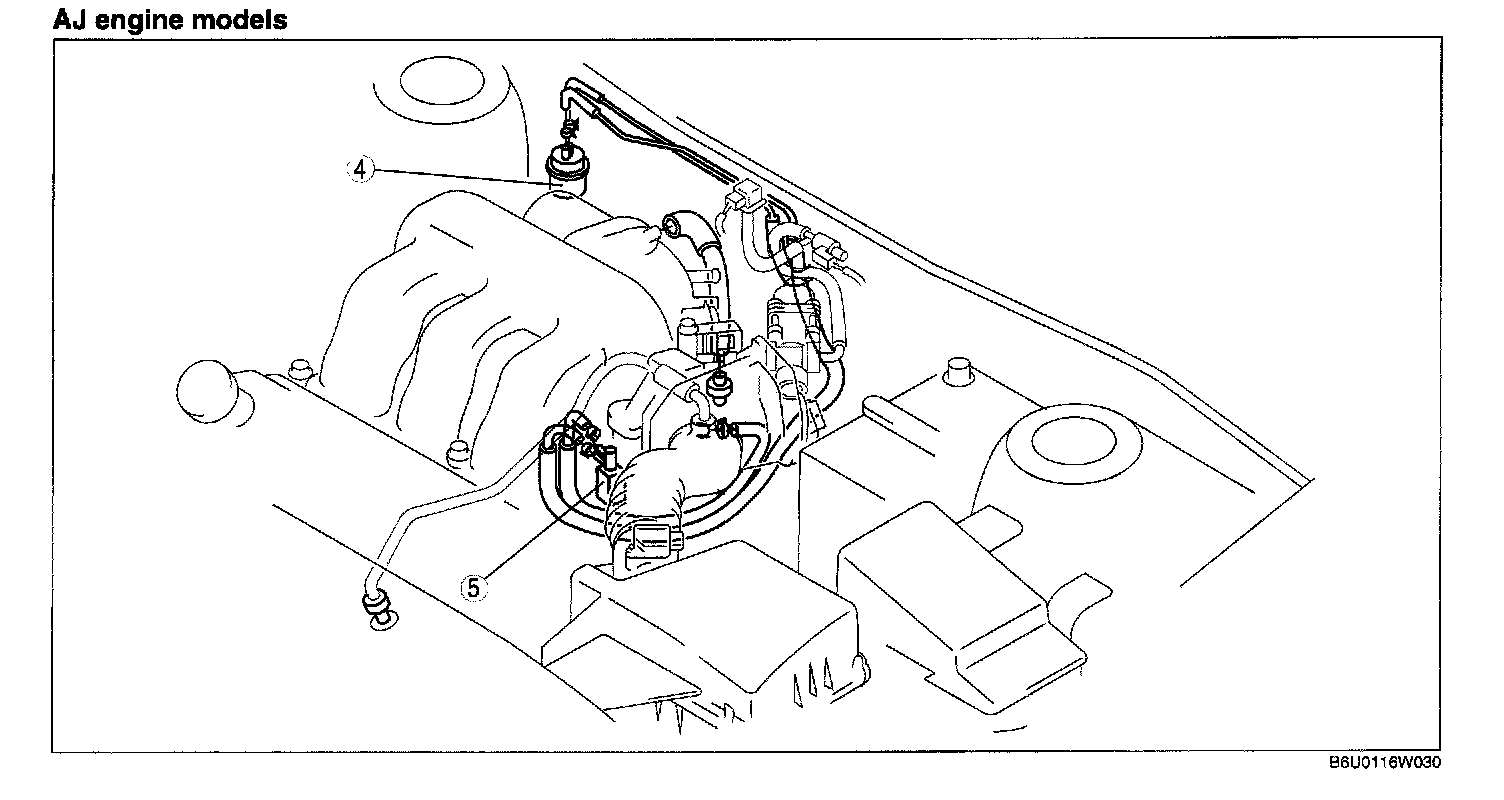

Engine Room Side:

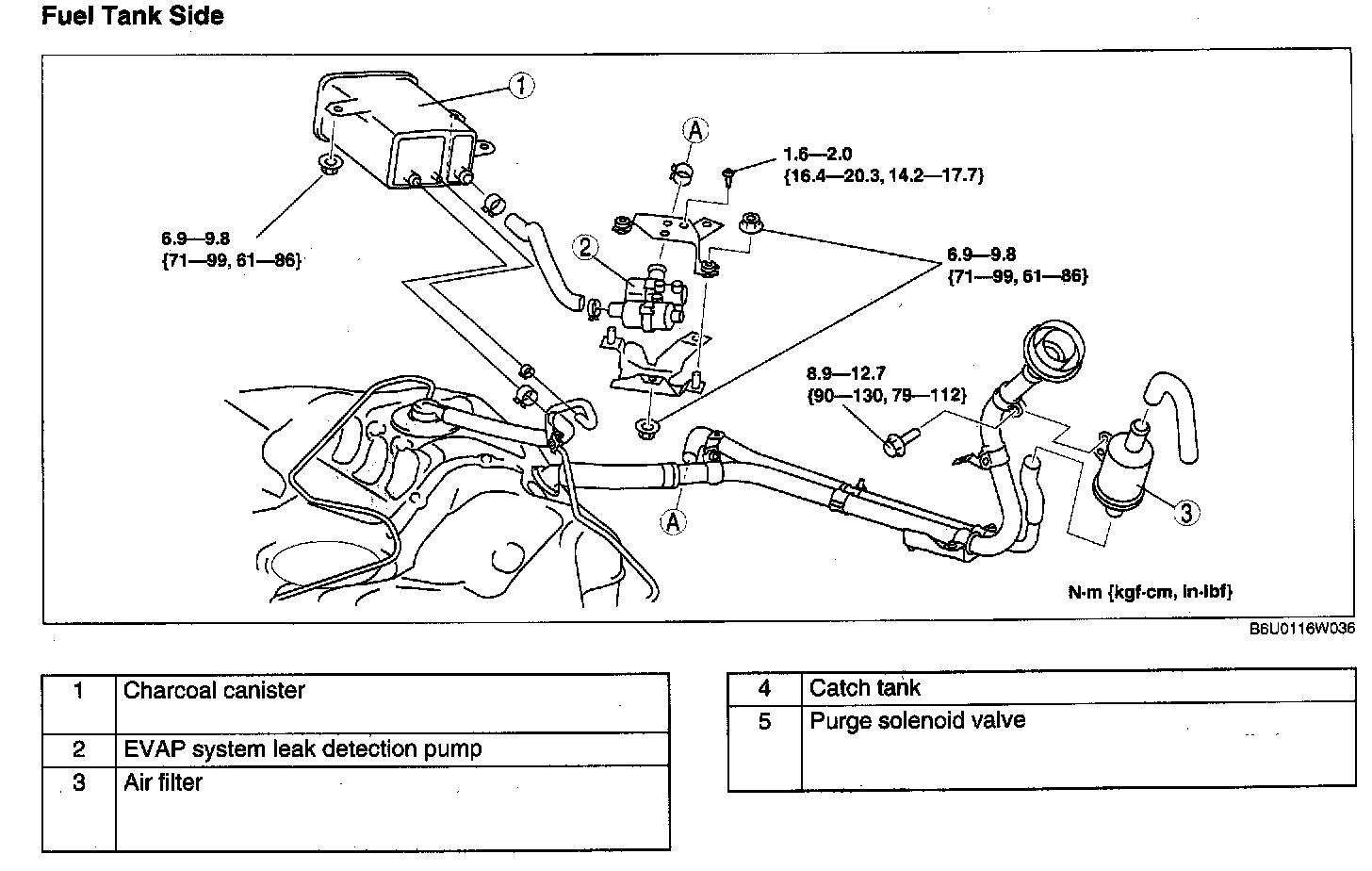

Fuel Tank Side:




2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

Charcoal Canister Removal Note:

1. Remove the fuel tank before removing the charcoal canister.

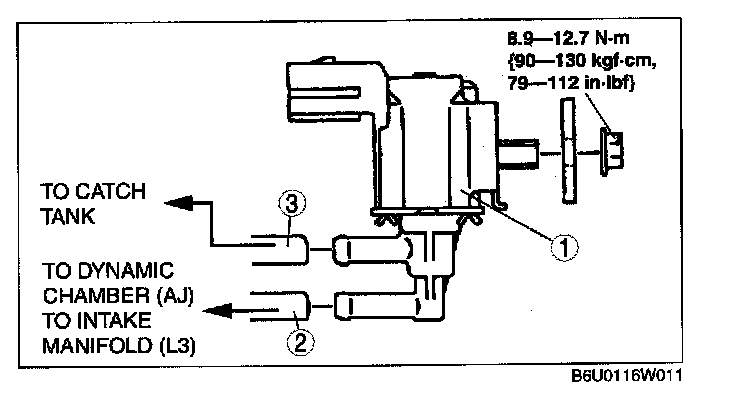

Purge Solenoid Valve Installation Note:

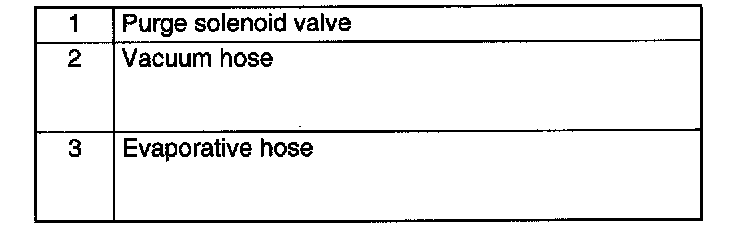

1. Install in the order indicated in the table.

Hose (purge solenoid valve) installation Note:

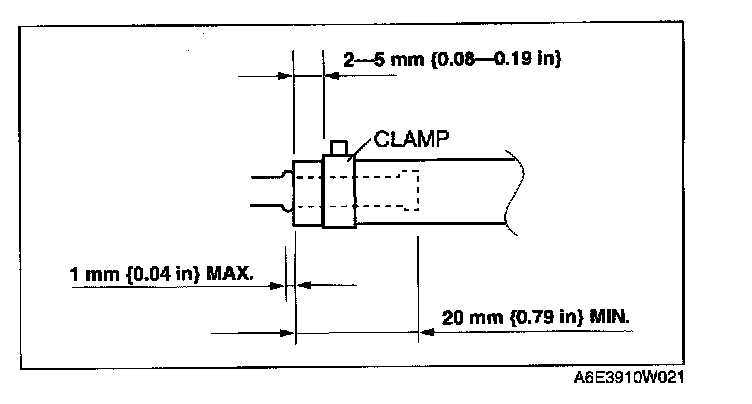

1. Fit the vacuum hose (purge solenoid valve) onto the respective fittings, and install clamps as shown.
