Windshield Washer Hose: Service and Repair

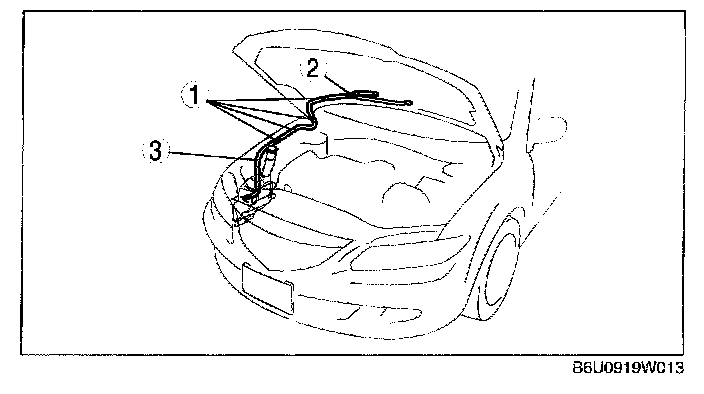

WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION 1.
Remove the bonnet insulator.
2.
Partially peel off the right side mud guard.
3.
Remove in the order indicated in the table.
4.
Install in the reverse order of removal.

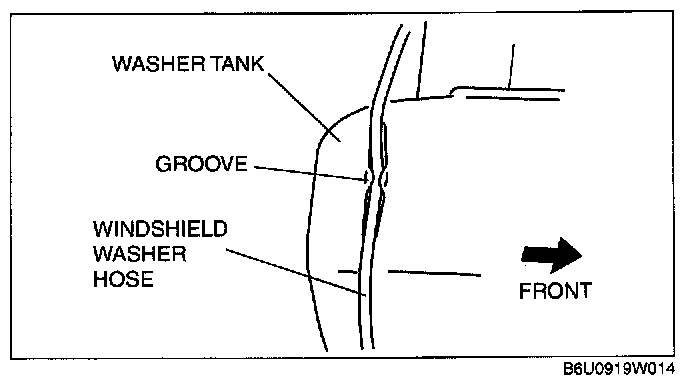

Windshield Washer Hose Installation Note 1.
Install the
windshield washer hose by inserting it in the washer tank groove.
