Brake Fluid Pressure Sensor/Switch: Service and Repair

BRAKE PRESSURE SWITCH REMOVAL/INSTALLATION

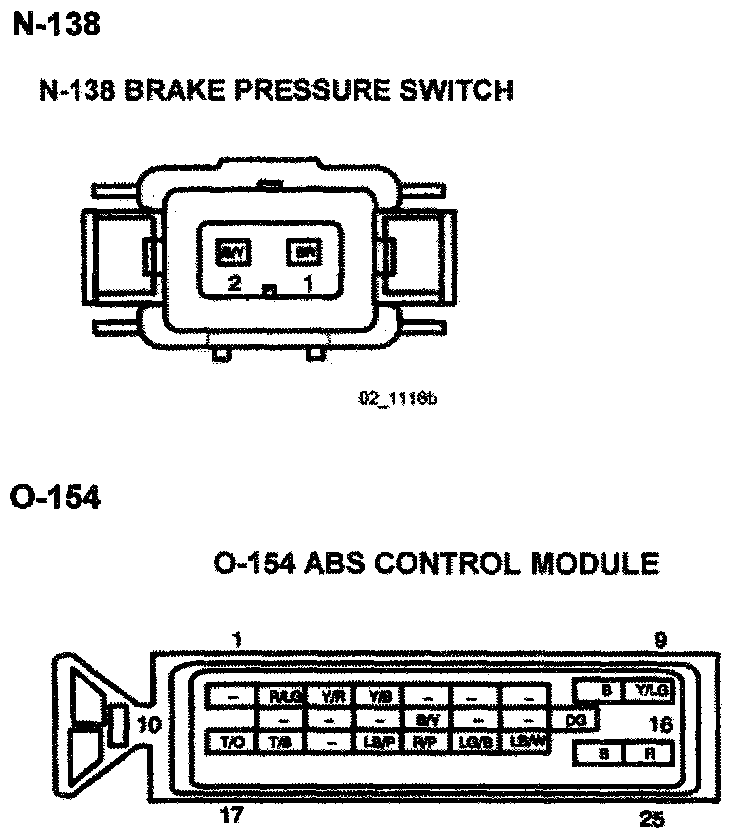

1. Disconnect the Brake Pressure Switch electrical connector N-138

2. Remove the Brake Pressure Switch

3. Fill the new Brake Pressure Switch with High Performance DOT 3 Brake fluid

4. Install the Brake Pressure Switch into the Brake Master Cylinder

5. Torque the Brake Pressure Switch to 17 Nm (13 lb-ft)

6. Connect the Brake Pressure Switch electrical connector N-138

7. Bleed the brake system .
