Procedure 1 - For Vehicles With Non-Leaking Switches

PROCEDURE 1 - For vehicles with non-leaking switches

UNIVERSAL FUSED JUMPER HARNESS INSTALLATION





1. Connect the universal fused jumper harness to the CCDS and the vehicle harness.

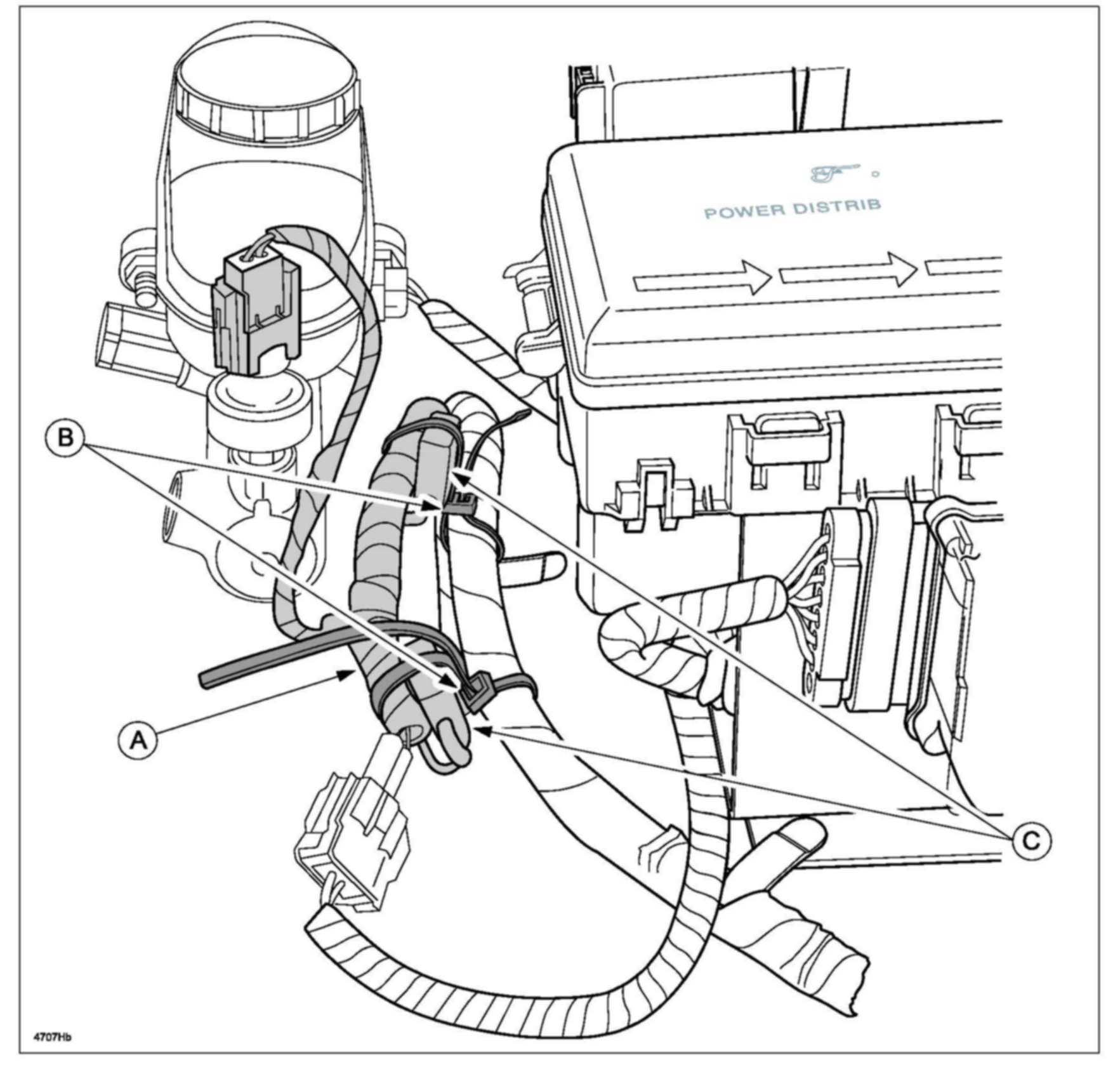

2. Position the harness (A) alongside an existing harness, located below or next to the master cylinder so that the fuse holders (C) are higher than the rest of the jumper harness. This will cause any water that enters the engine compartment and gets on the jumper harness to run downhill away from the fuse holder.

3. Secure the jumper to the existing harness with tie straps (B), making sure the fuse holder is positioned vertically with the cap facing upward. Wrap the tie straps underneath, then over the top of the existing harness and verify proper fuse holder orientation.

4. Proceed to "E. CAMPAIGN LABEL INSTALLATION"
