Engine Control Module

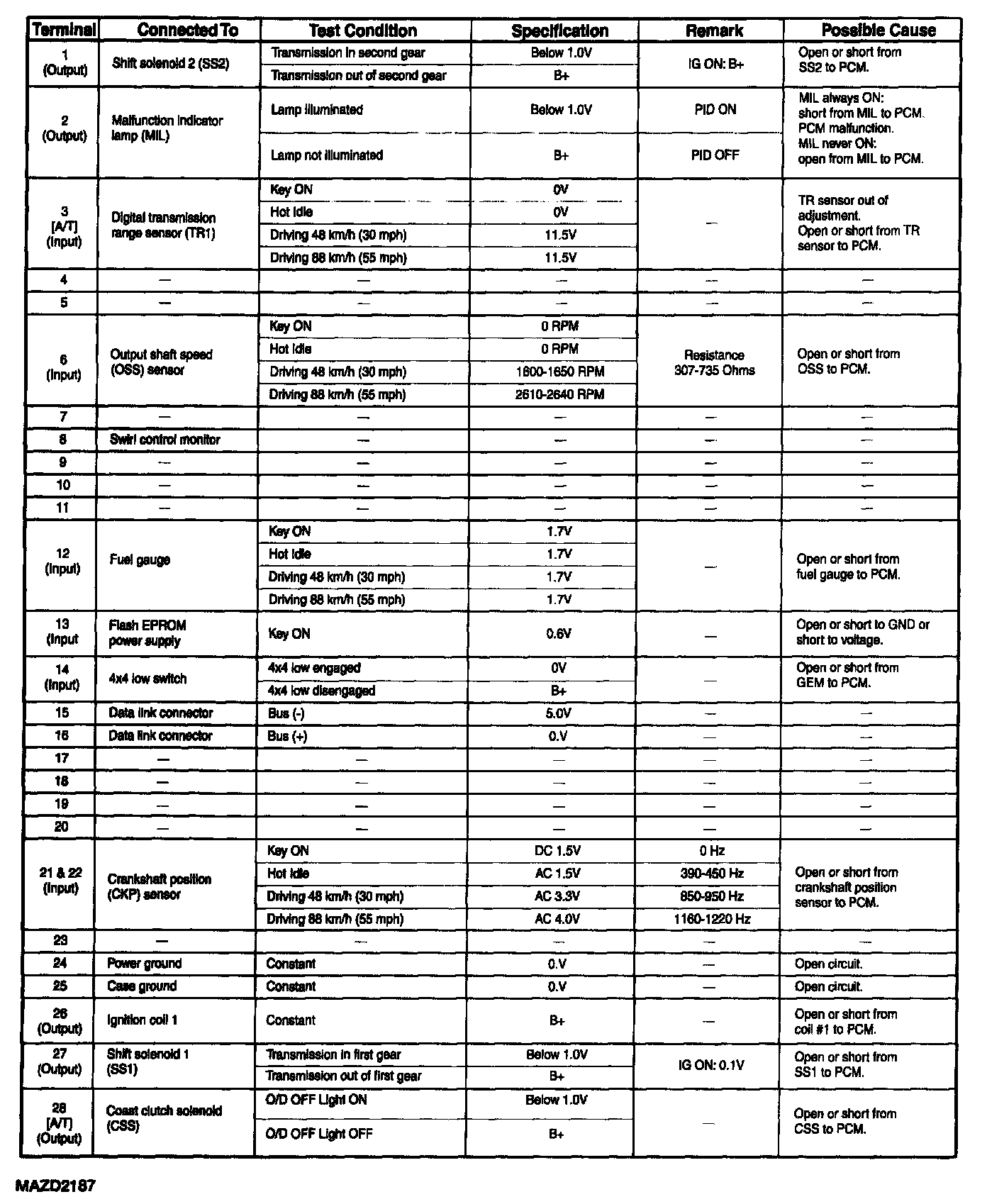

Terminal 1 - 28:

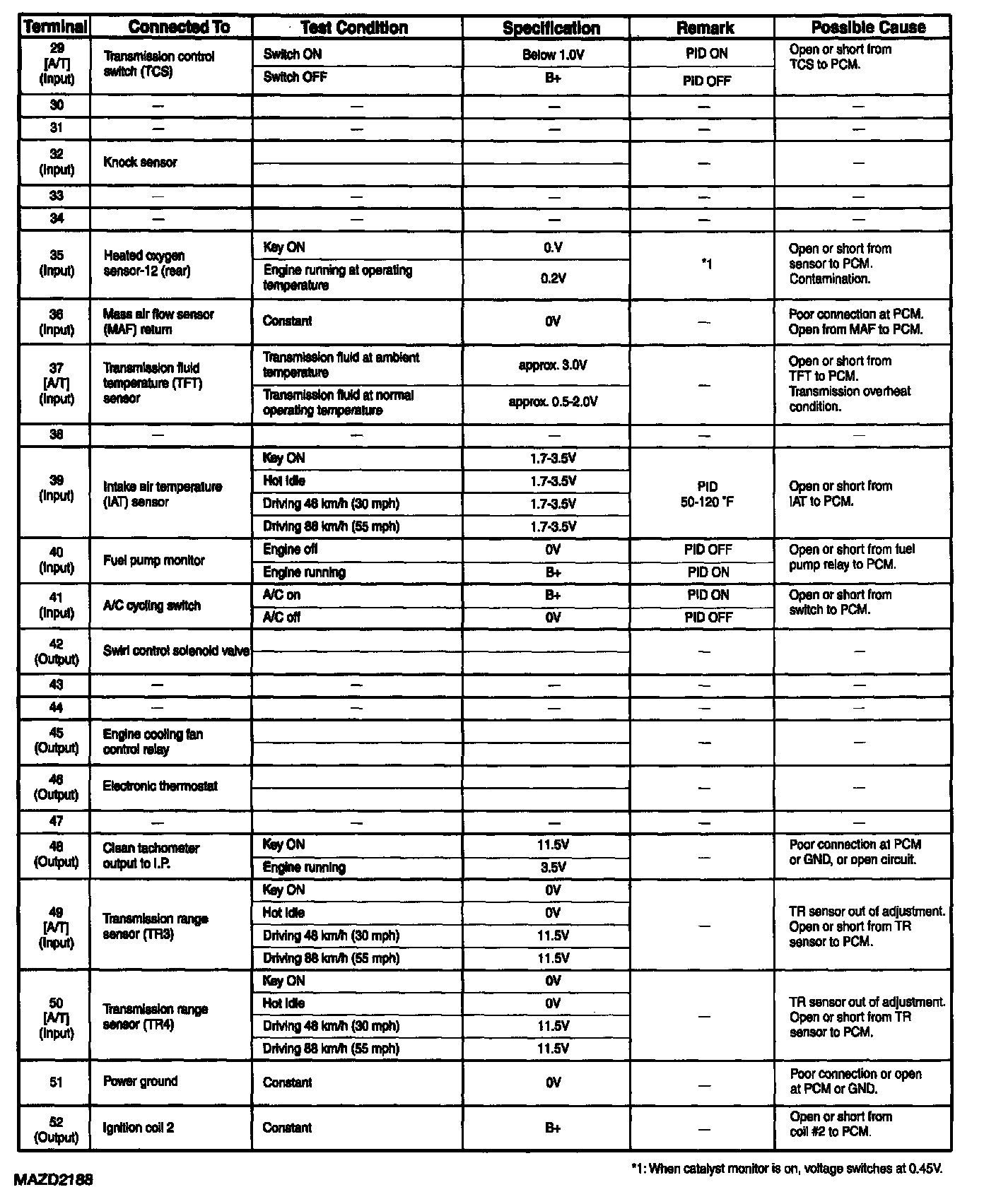

Terminal 29 - 52:

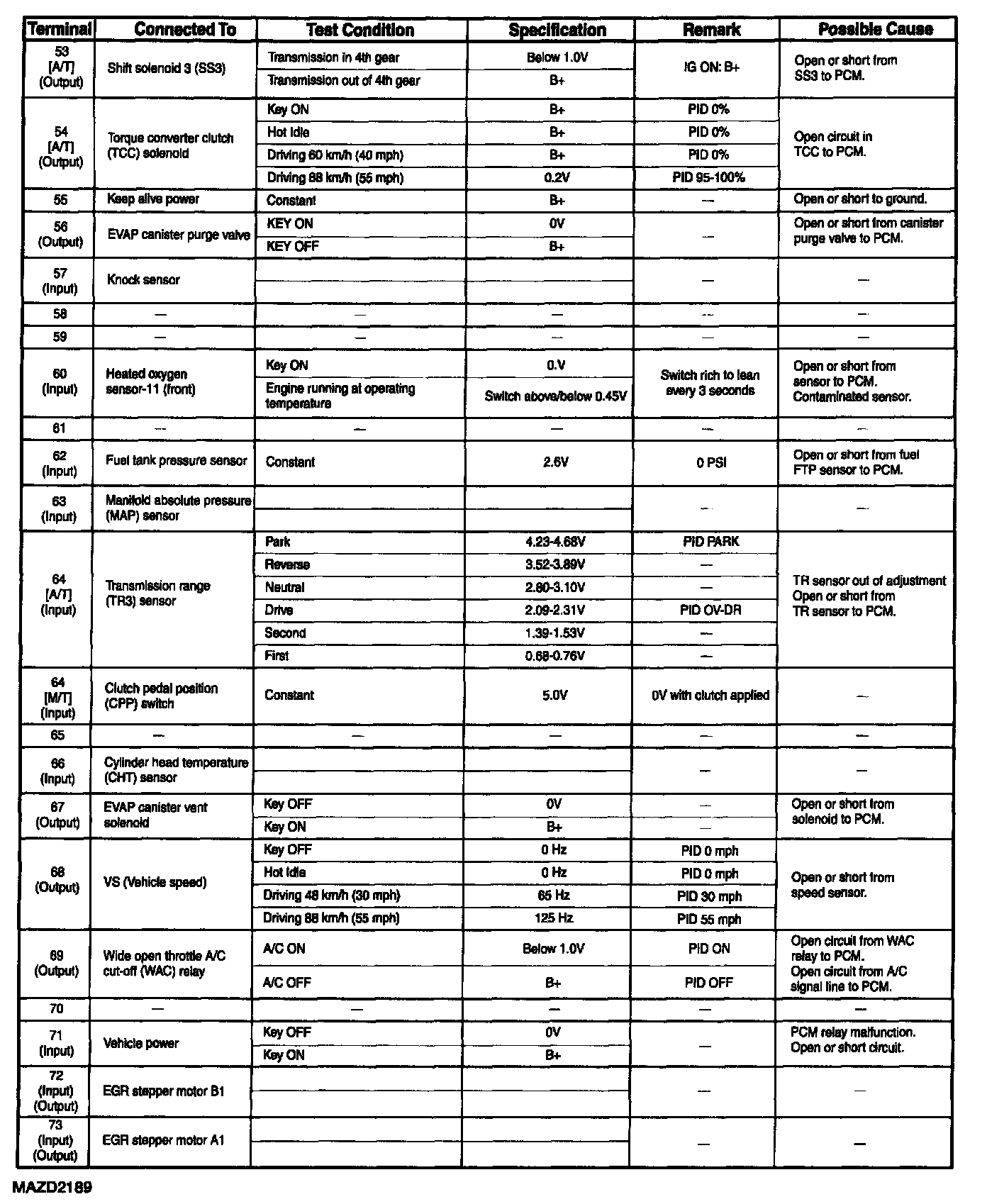

Terminal 53 - 73:

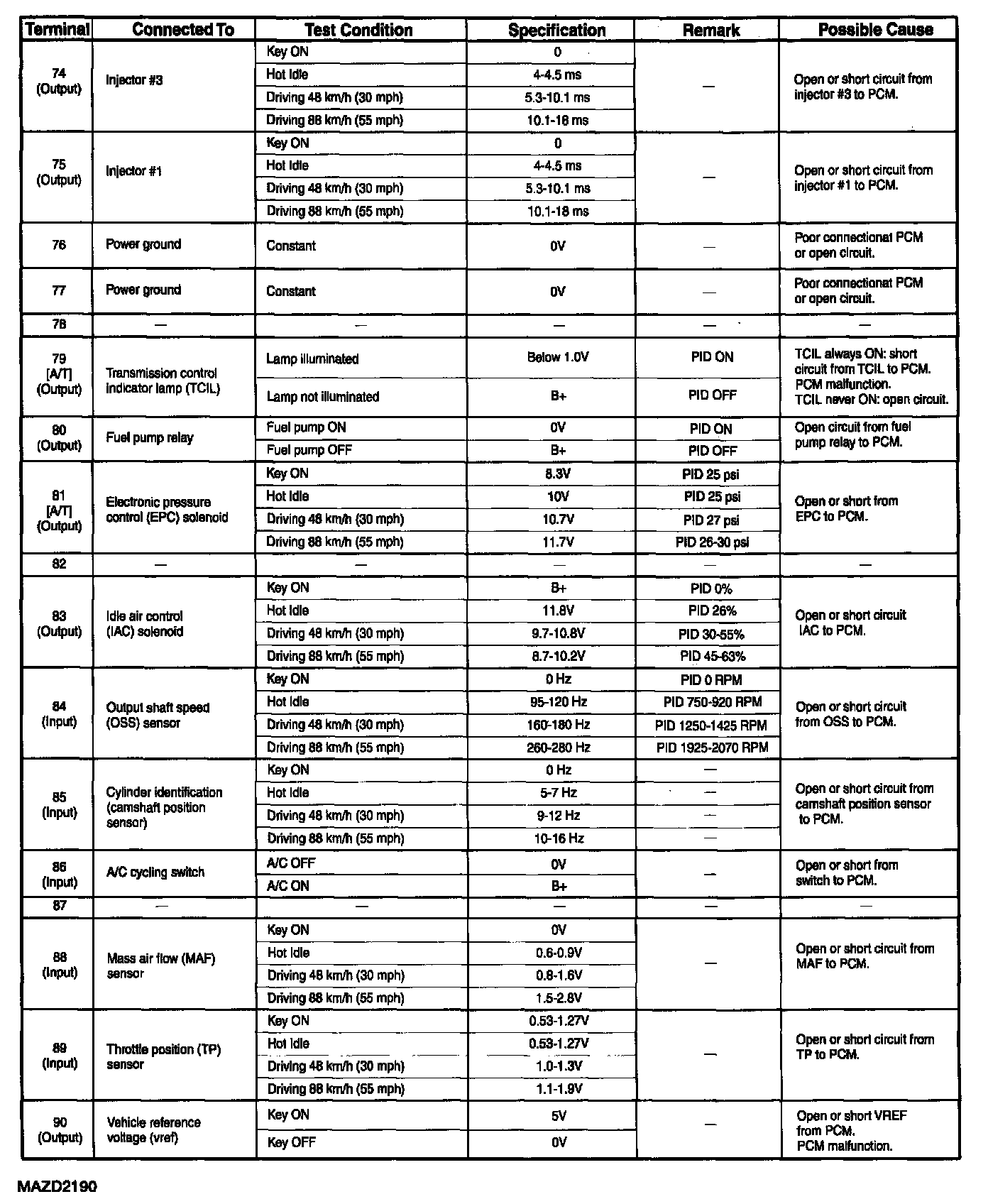

Terminal 74 - 90:

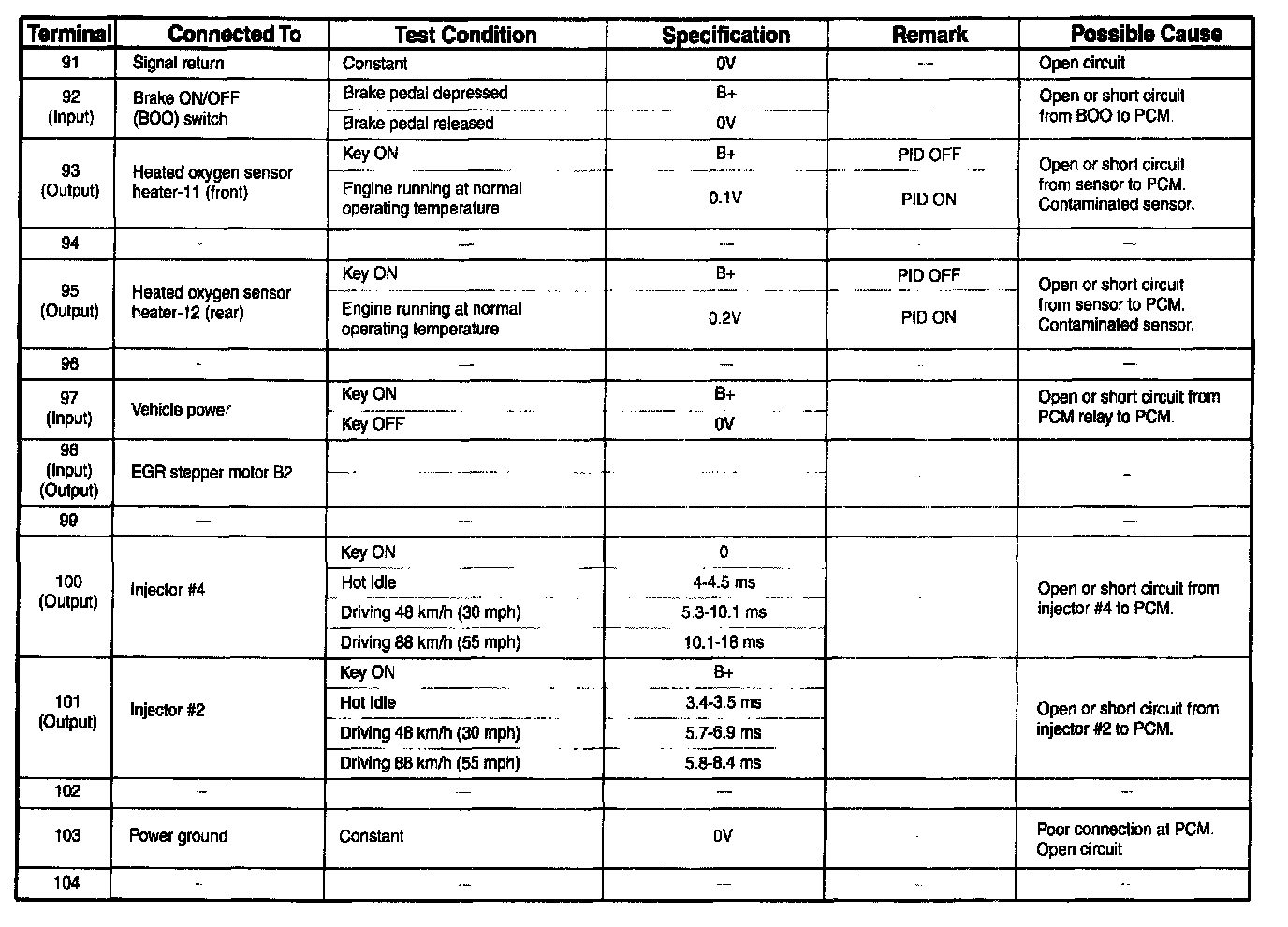

Terminal 91 - 104:
2.3L Terminal Voltage (Reference)NOTE: All values shown may vary 20% depending on operating conditions and other factors. RPM values are axle and tire dependent.
