System Specifications

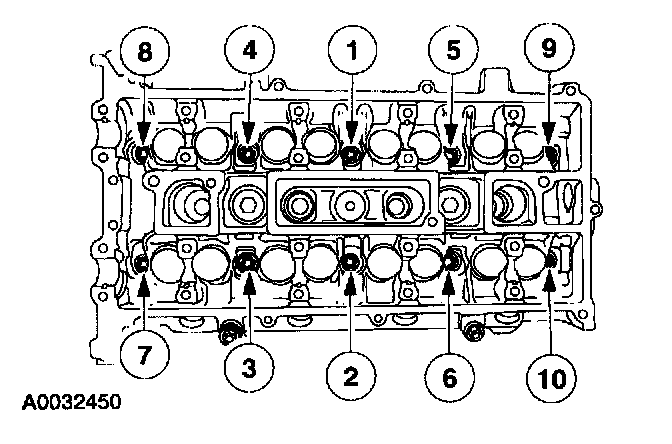

Note: Torque to yeild Head Bolts, must replace with new bolts. Cylinder head
Stage 1
5 Nm (0.5 kgf-cm, 44 inch lbs.)
Stage 2
15 Nm (1.5 kgf-cm, 11 ft. lbs.)
Stage 3
45 Nm (4.5 kgf-cm, 33 ft. lbs.)
Stage 4
additional 90 degrees (1/4 turn)
Stage 5
additional 90 degrees (1/4 turn)
