FRONT BUMPER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the radiator grille.
3. Remove the front combination light.
4. Disconnect the front fog light connector.

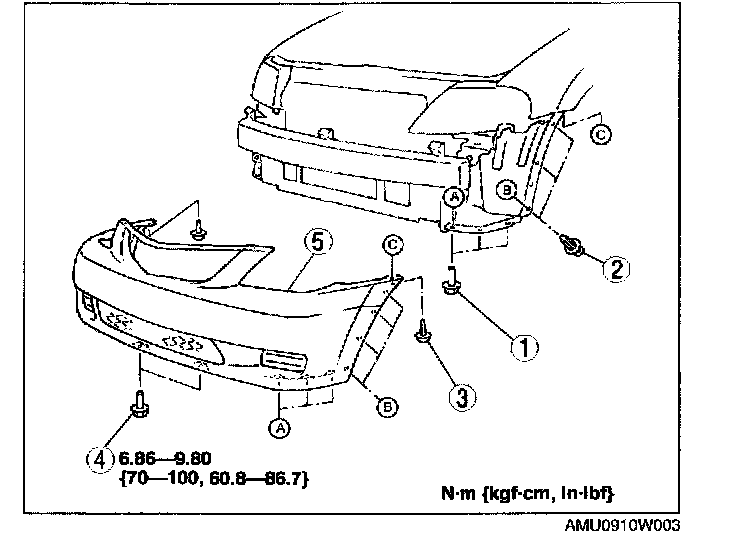

5. Remove in the order indicated below.
1. Bolt A
2. Fastener
3. Screw
4. Bolt B
5. Front bumper
(See Front Bumper Removal Note.)

6. Install in the reverse order of removal.

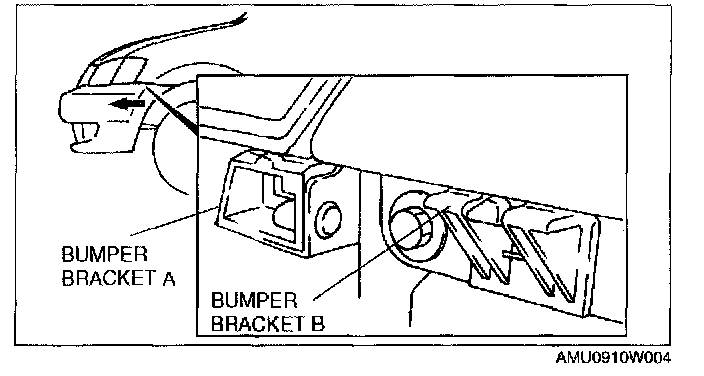

Front Bumper Removal Note




1. Pull the front bumper forward to disengage the front bumper from the bumper brackets.

FRONT BUMPER DISASSEMBLY/ASSEMBLY

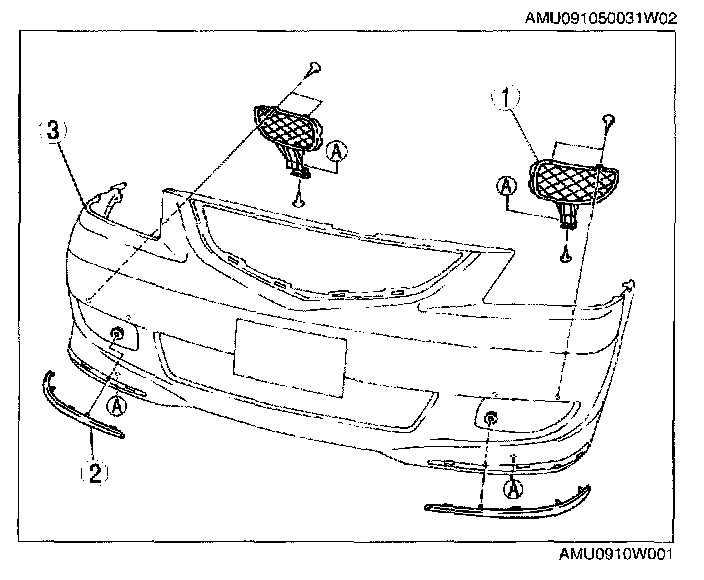

1. Disassemble in the order indicated below.
1. Front tog light hole cover
2. Front bumper protector
3. Front bumper fascia

2. Assemble in the reverse order of disassembly.
