Cabin Air Filter / Purifier: Service and Repair

AIR FILTER REMOVAL/INSTALLATION

CAUTION: The air filter is made of static electric fibers. If the filter is removed and exposed to air for a long time, dirt and dust will collect on the fibers, rendering the filter unusable. After removing the air filter, store it in a plastic bag.

1. Remove the glove compartment.

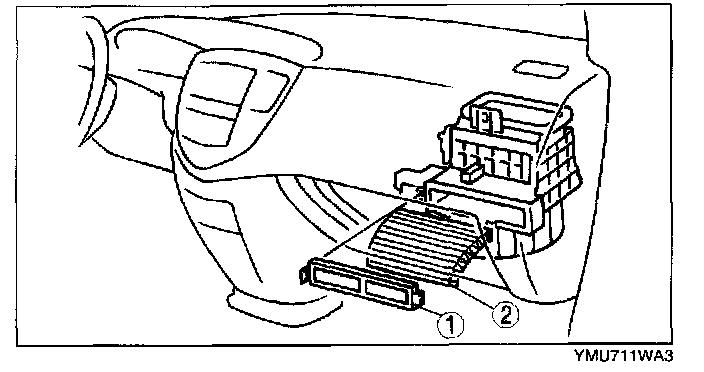

2. Remove in the order indicated below.
1. Cover
2. Air filter

3. Install in the reverse order of removal.
