Powerflow
Outline ^
In the powertrain system, the hydraulic pressure transported by the control valve operates the clutch and brake, and the planetary gear changes the gear ratio according to the driving conditions.

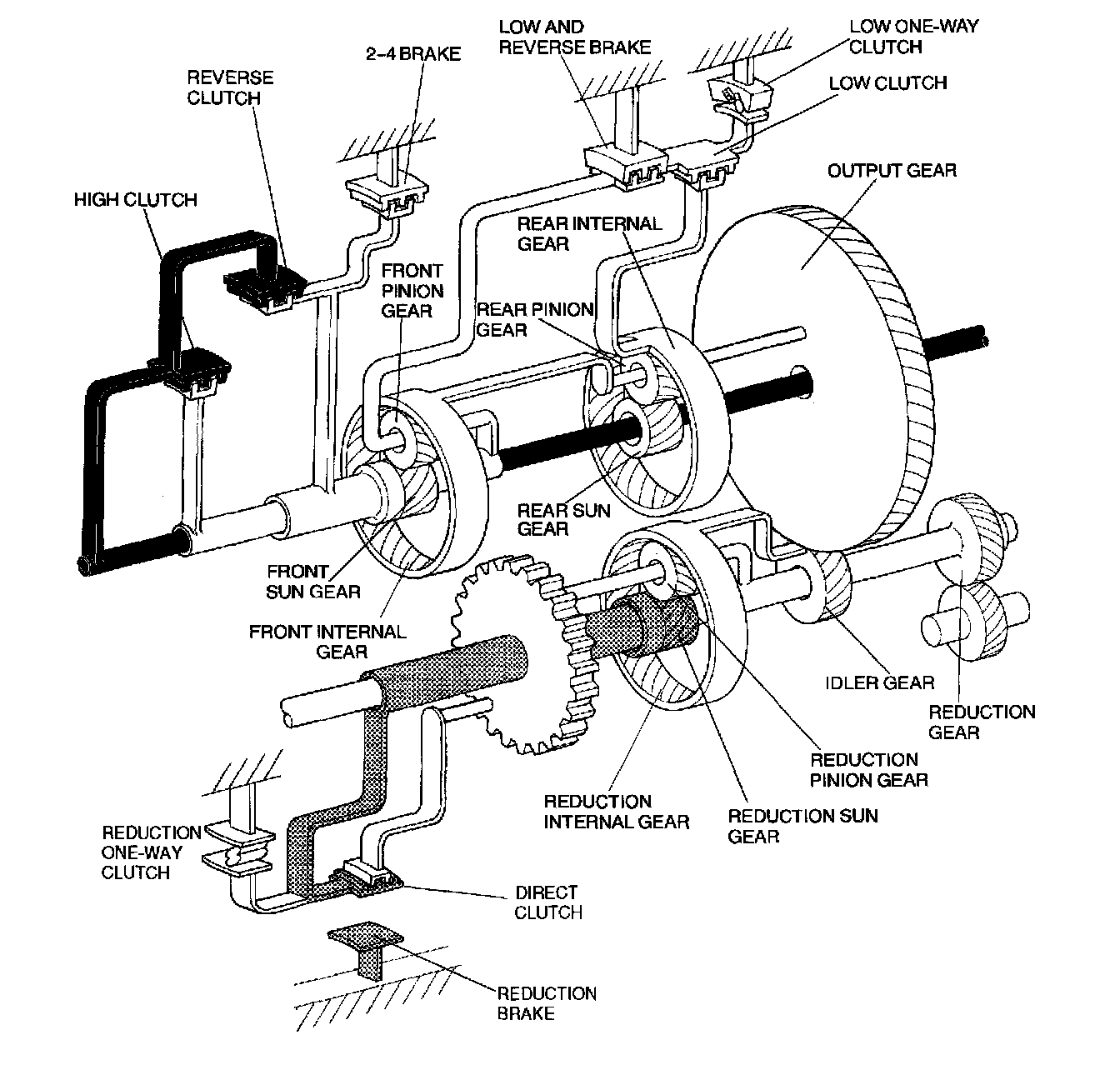

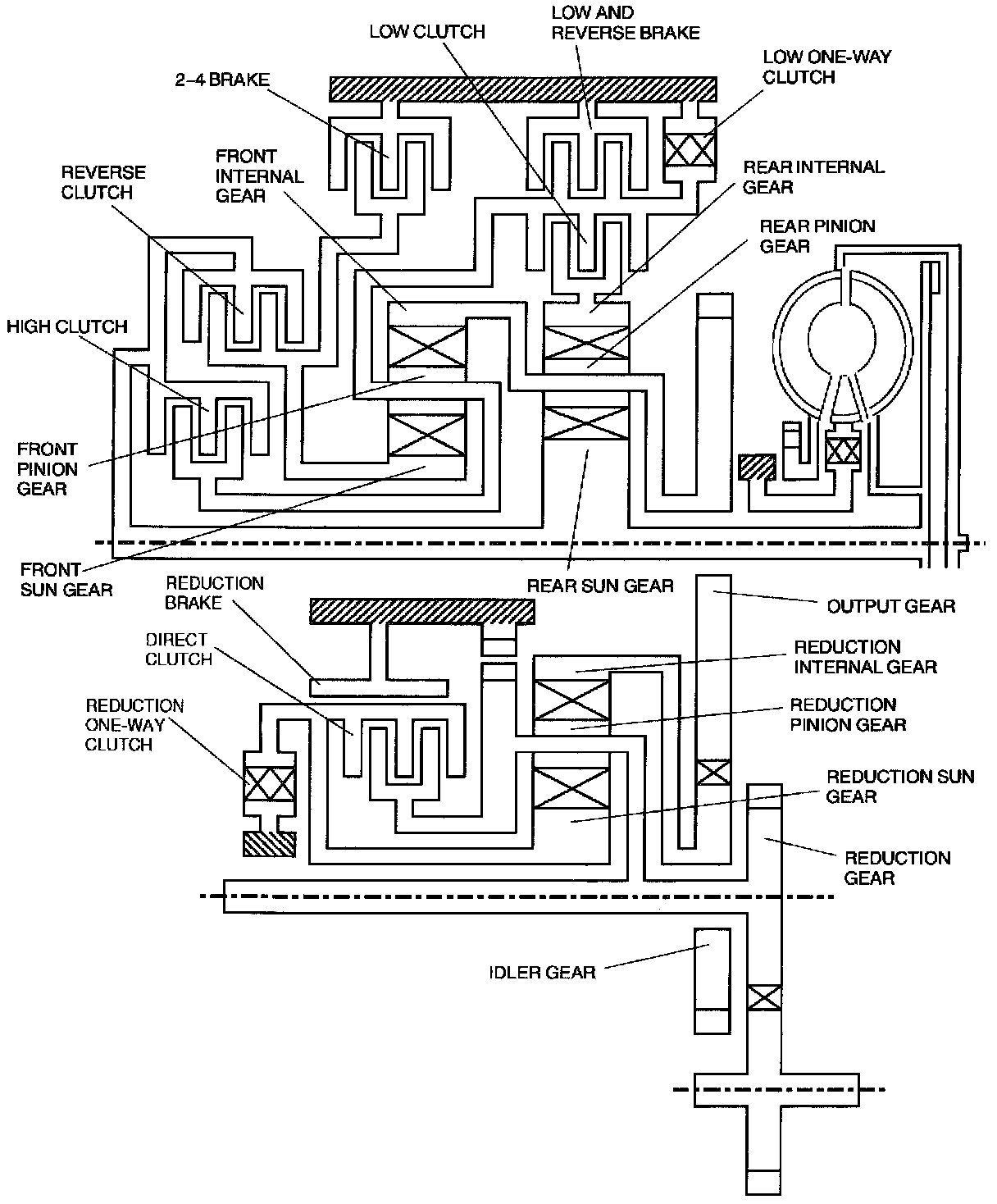

Structure ^
The powertrain system consists of seven sets of clutches, brake, brake
band, two sets of one-way clutches, and simple type planetary gears.
