Shift Solenoid: Service and Repair

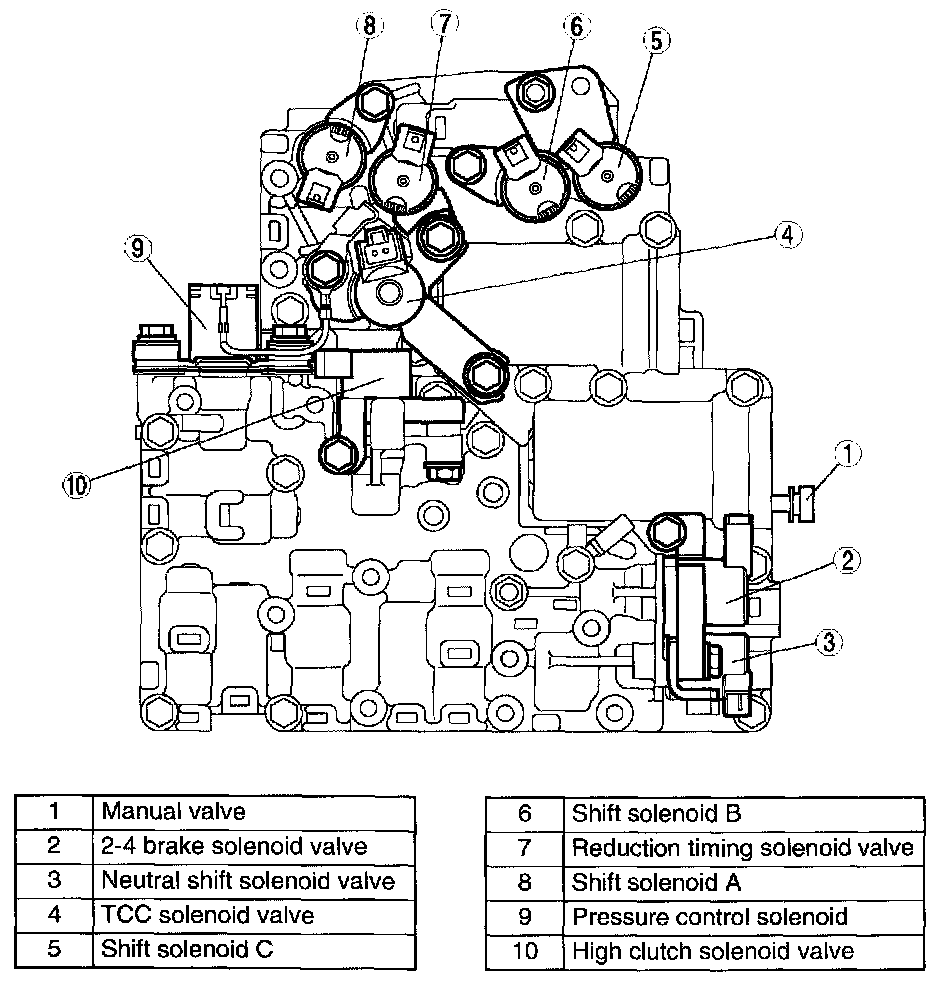

SOLENOID VALVE REMOVAL/INSTALLATION
1. Remove the control valve body.





2. Remove the solenoid valves and manual valve.
3. Apply ATF to a new O-ring and install it on the solenoid valve.
4. Install the solenoid valve and manual valve in the control valve body.
Tightening torque 8.34 - 10.30 Nm {85 - 105 kgf-cm, 74 - 91 inch lbs.}
5. Install the control valve body.
6. Add the ATF while the engine is idling, and inspect the ATF level and leakage.
7. Carry out the time lag test and line pressure test.
8. Carry out the road test.
