Line Pressure Test

Note:
^ Line pressure cannot be measured on the JA5A-EL automatic transaxle. Measure the low clutch pressure in place of D, 3, and 2 range line pressures. Measure the reverse clutch pressure in place of R position line pressure.

1. Engine idling.
1. Perform mechanical system test preparation.

Warning:
^ Removing the plug when the ATF is hot can be dangerous. Hot ATF can come out of the opening and badly burn you. Before removing the square-head plug, allow the ATF to cool.





D, 3, 2 Line Pressure Port





Reverse Line Pressure Port

2. Remove the plug and O-ring shown in the figure.

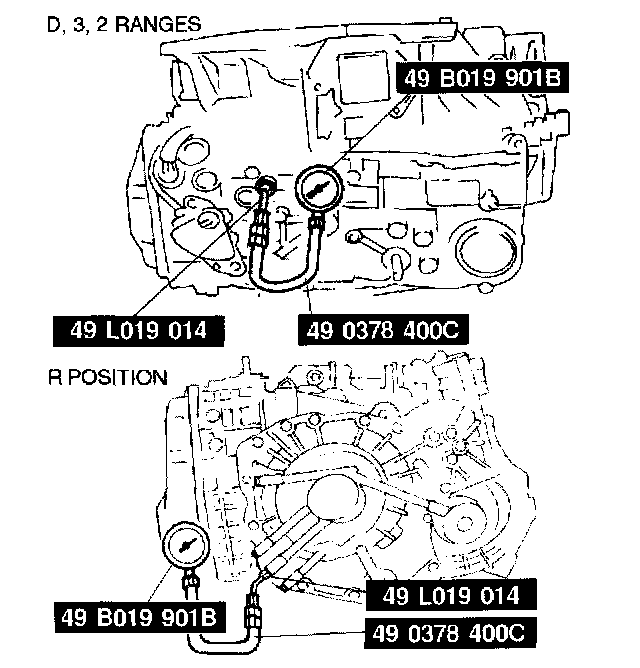

3. Connect the SSTs (49 L019 014, 49 B019 901 B. and 49 0378 400C) to the low clutch pressure inspection port (D, 3, and 2 range line pressures) or reverse clutch pressure inspection port (R position line pressure).
4. Start the engine and warm it up until the ATF reaches 60 - 70°C {140 - 158°F}.
5. Shift the selector lever to D range.





6. Read the line pressure at idle for the remaining ranges in the same manner.
^ 3 range
^ 2 range
^ R range
ATF temperature 60 - 70°C {140 - 158°F}
Turn off all electrical loads
7. Turn the engine off.
2. Engine stall speed.

Caution:
^ Perform the line pressure test at engine idling prior to performing the test at engine stall. If line pressure is low at idle, do not perform the test at engine stall or further transaxle damage will occur.

1. Replace the SST (49 B019 901 B) with the gauge of the SST (49 0378 400C).
2. Start the engine.

Caution:
^ Do not maintain WOT in any gear range for more than 5 seconds or transaxle damage will occur.

3. Firmly depress the brake pedal with the left foot, and then gradually depress the accelerator pedal to the floor (WOT) with the right.
4. When the engine speed no longer increases, quickly read the line pressure and release the accelerator pedal.
5. Shift the selector lever to N position and let the engine idle for 1 minute or more to cool the ATF.





6. Read the line pressure at the engine stall speed for the remaining ranges in the same manner.
^ 3 range
^ 2 range
^ R range
ATF temperature 60 - 70°C {140 - 158°F}
Turn off all electrical loads
7. Shift the selector lever to P position.
8. Turn off the engine.
9. Remove the SSTs and install a new square head plug and O-ring in the line pressure inspection port.
Tightening torque 4.91 - 9.80 Nm {50 - 100 kgf-cm, 43.4-86.7 inch lbs.}

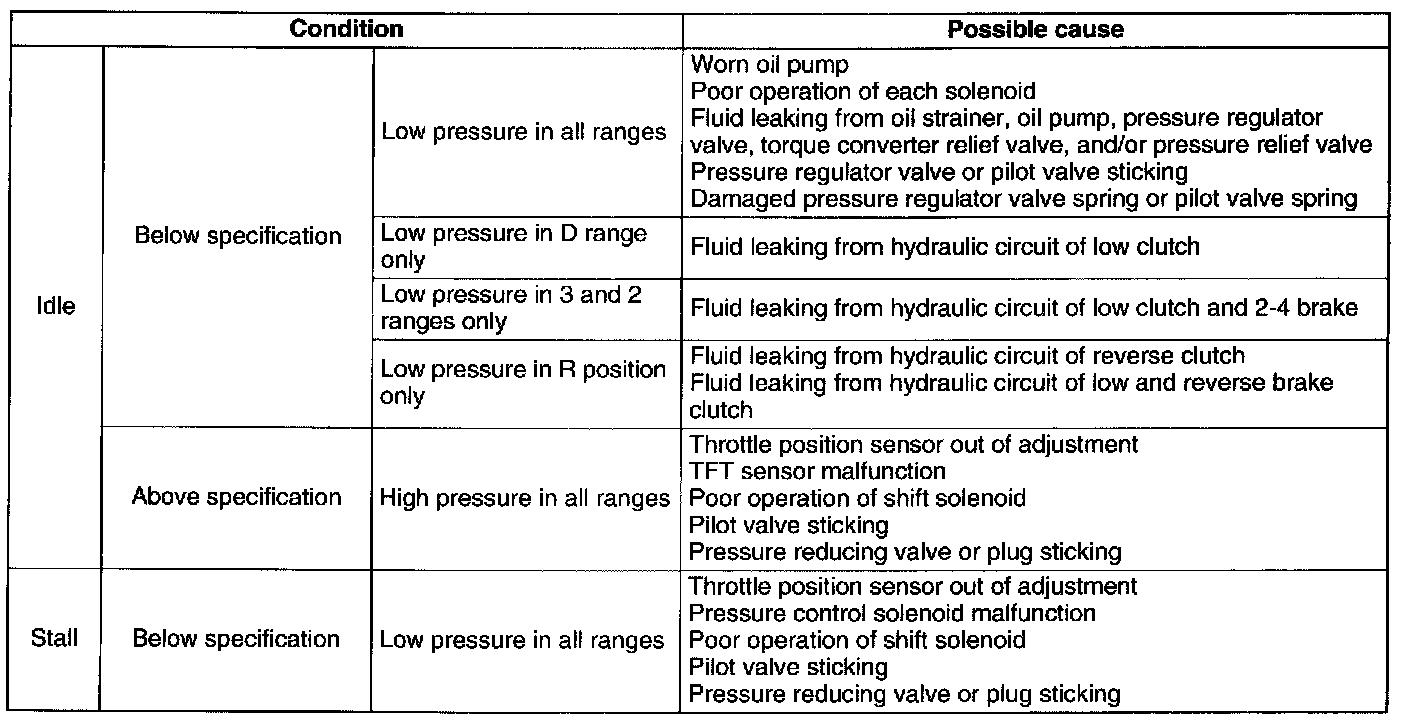

Evaluation of line pressure test chart
