Ignition System: Testing and Inspection
Step 1 - 5:
1.
Disconnect the negative battery cable.
2.
Disconnect the
FP RLY connector.
3.
Verify that each high-tension lead and connector is connected properly.
4.

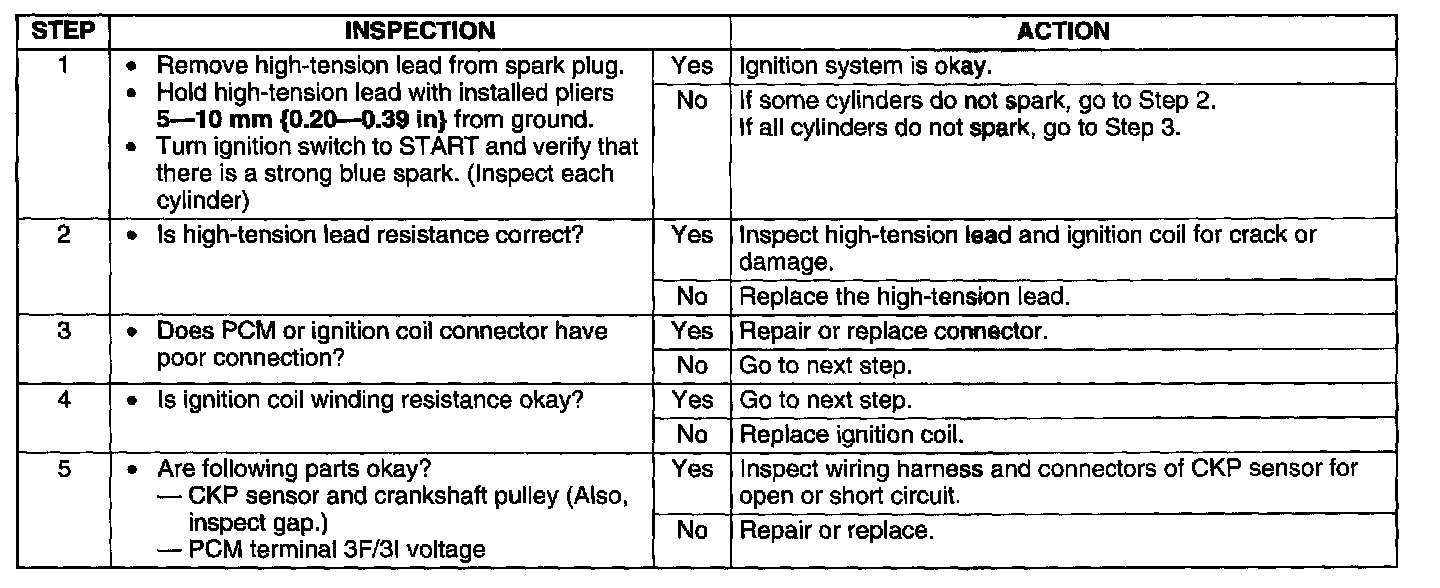

Inspect the
ignition system in the procedure.
WARNING: HIGH VOLTAGE IN THE IGNITION SYSTEM CAN CAUSE STRONG ELECTRICAL SHOCK WHICH CAN RESULT IN SERIOUS INJURY. AVOID DIRECT CONTACT TO THE VEHICLE BODY DURING THE SPARK TEST.
