Output Speed Sensor Inspection

OUTPUT SPEED SENSOR INSPECTION
1. Disconnect the output speed sensor connector.
2. Remove the output speed sensor.

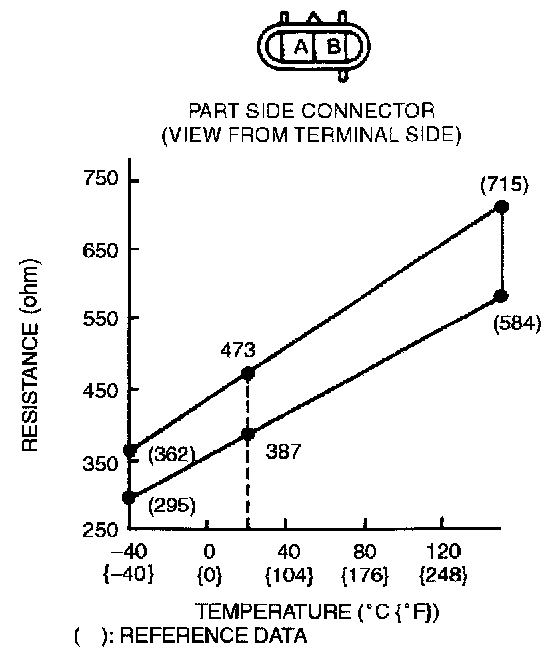

Note: Resistance value of the output speed sensor varies with temperature. Normal resistance value occurs when the temperature is 20°C (68°F), but it may be abnormal at high temperatures. Therefore, do not determine the resistance value only at 20°C (68°F).





3. Measure the resistance between the terminals of the output speed sensor.
- If not correct, replace the output speed sensor.
Resistance 387 - 473 ohms (20°C (68°F))
4. Install the output speed sensor.
Tightening torque 5.0 - 6.8 Nm (50 - 70 kgf-cm, 44 - 60 inch lbs.)
5. Connect the output speed sensor connector.
6. Connect the negative battery cable.
