Front Door Window Glass: Service and Repair
DOOR GLASS AND GUIDE REMOVAL/INSTALLATION 1.
Lower or raise the front door glass so that the distance from the top of the front door glass at the molding is
225 mm {8.86 in}.
2.
Disconnect the negative battery cable.
3.
Remove the door screen. (See DISASSEMBLY/ASSEMBLY.)
4.

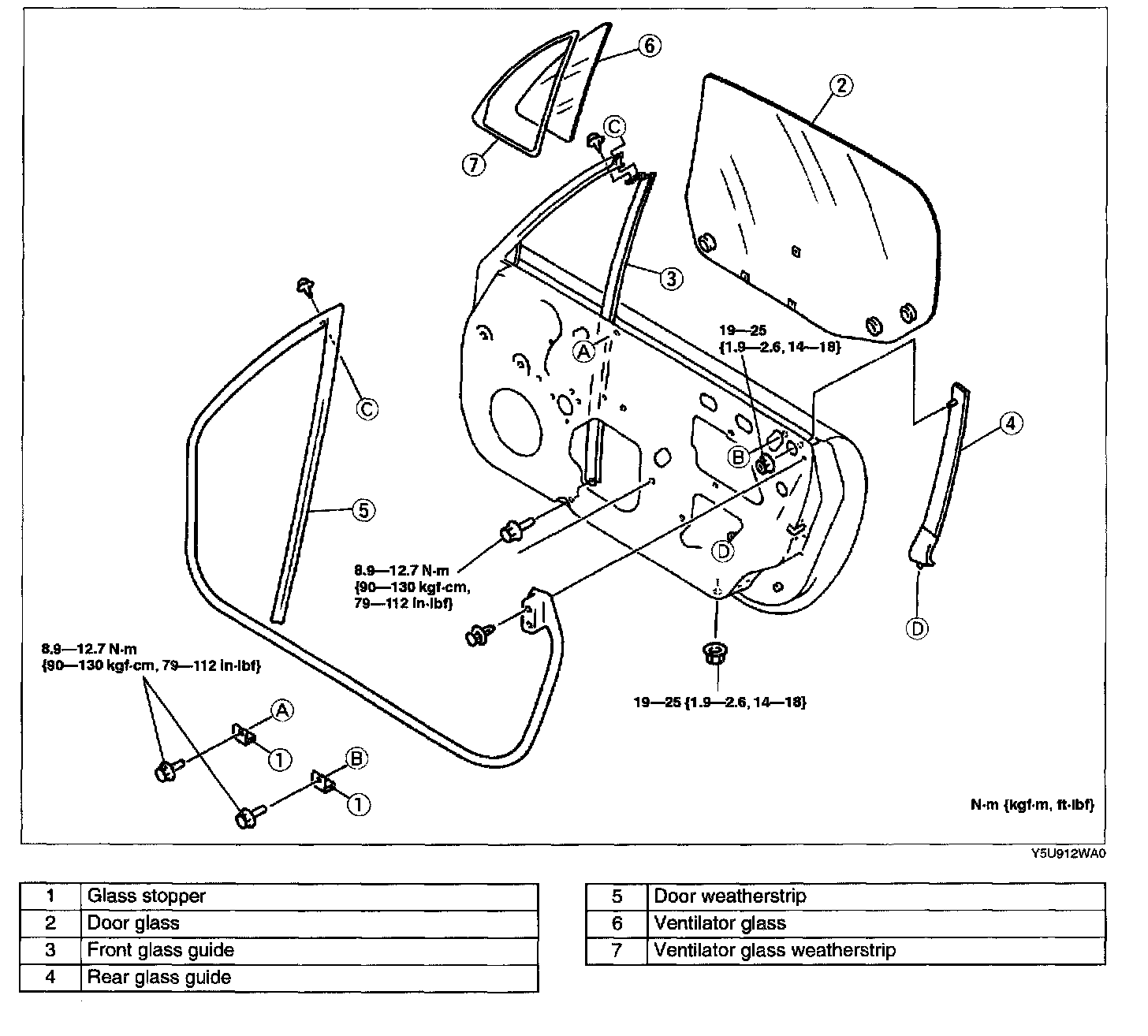

Remove in the order indicated in the table.
5.
Install in the reverse order of removal.
6.
Adjust the door glass.
