Pinpoint Test 3

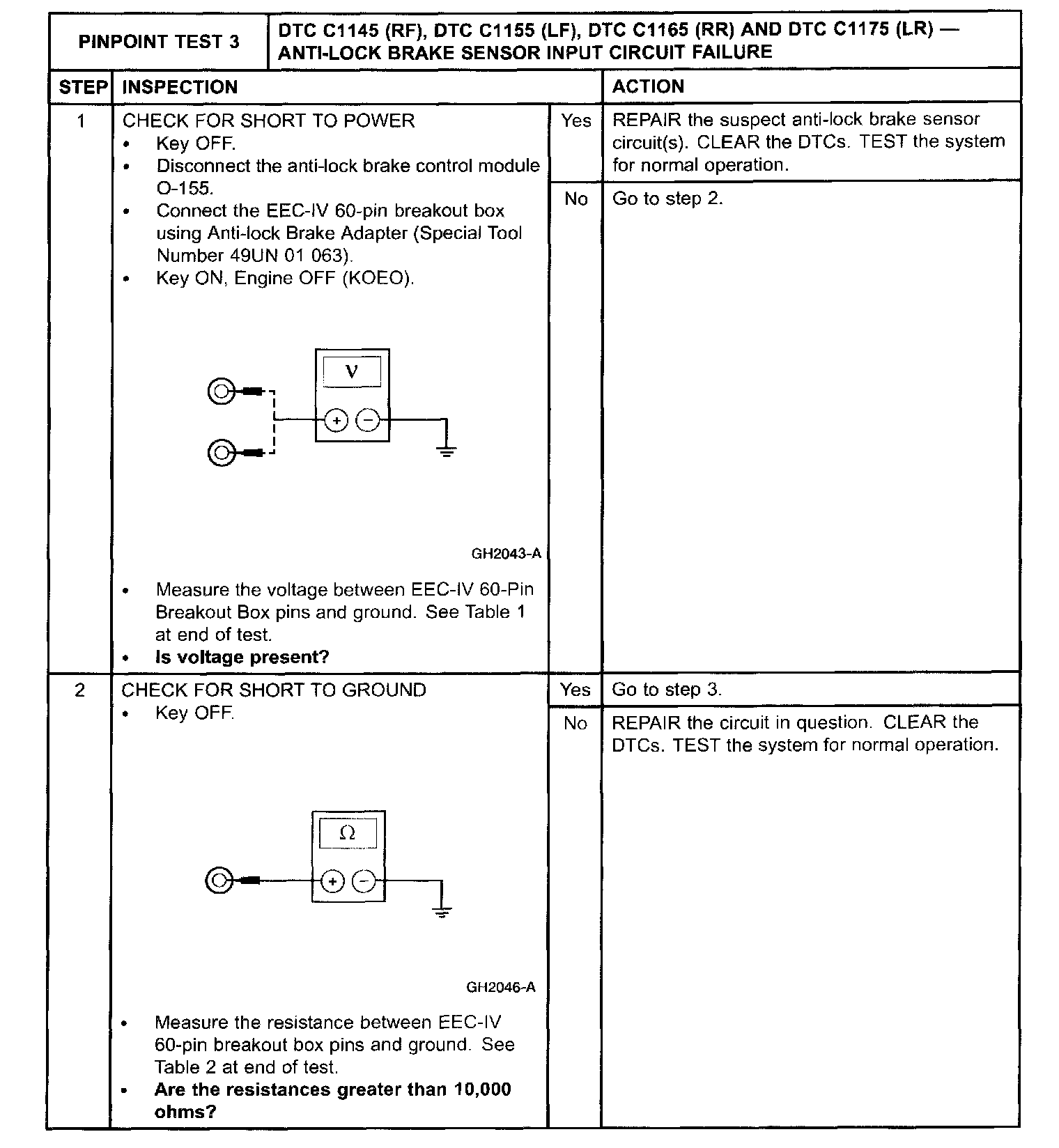

Test 1 Of 2:

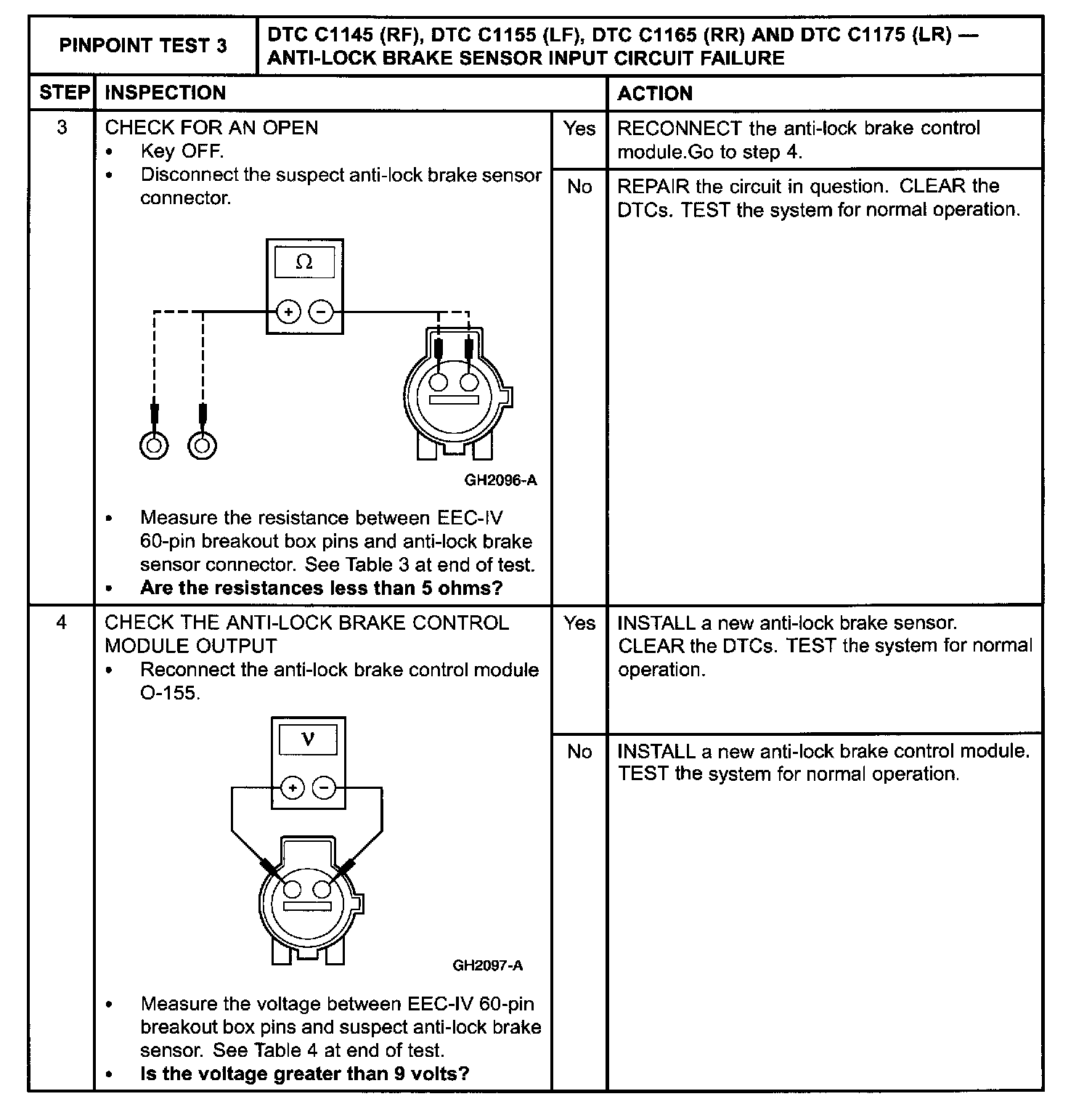

Test 2 Of 2:





PINPOINT TEST 3: DTC C1145 (RF), DTC C1155 (LF), DTC C1165 (RR) AND DTC C1175 (LR) - ANTI LOCK BRAKE SENSOR INPUT CIRCUIT FAILURE





Table 1





Table 2





Table 3





Table 4
