Pinpoint Test 4
PINPOINT TEST 4: DTCS C1233, C1234, C1235 AND C1236-ANTI-LOCK BRAKE SENSOR OUTPUT FAILURETest 1 Of 3:

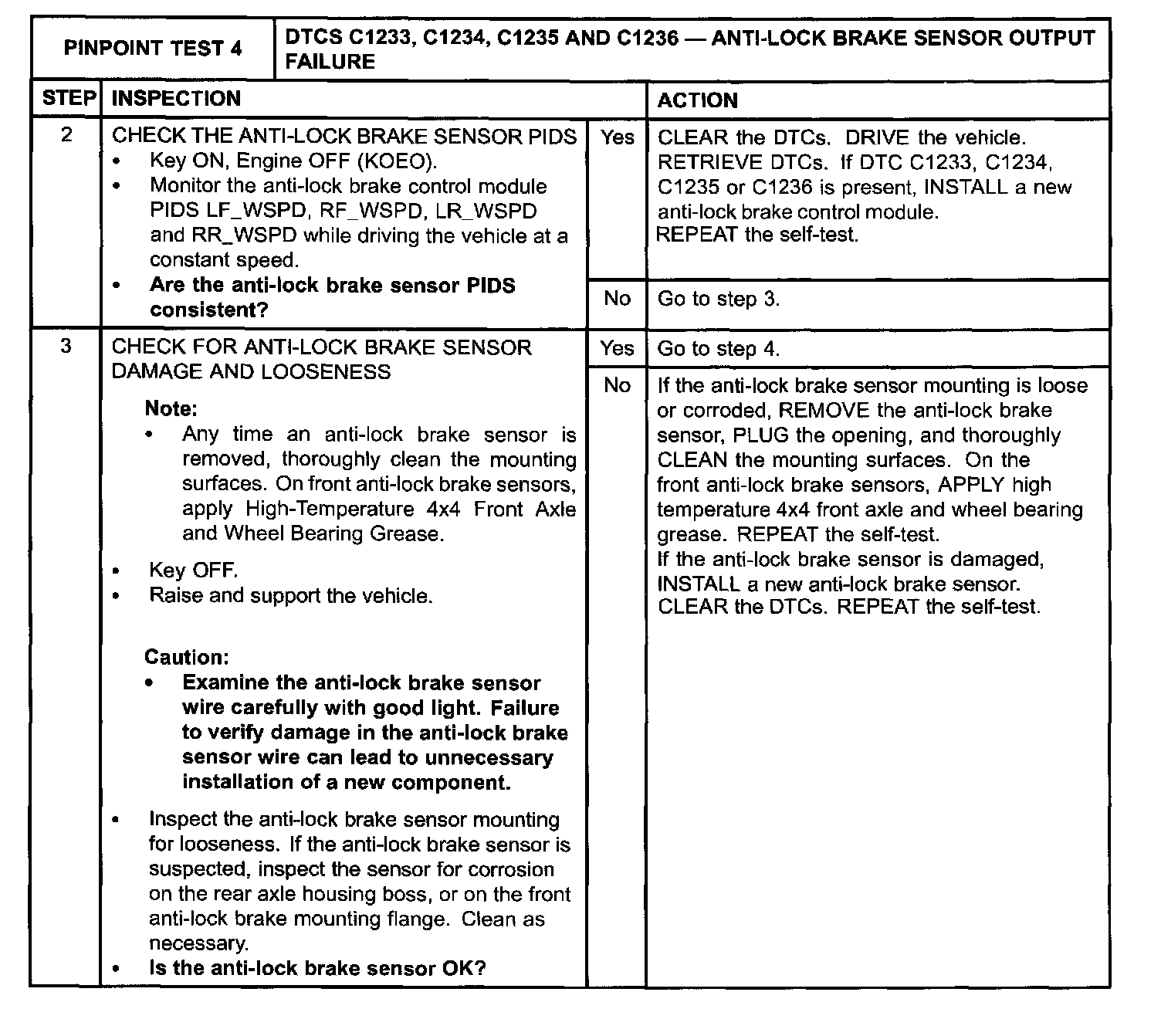

Test 2 Of 3:

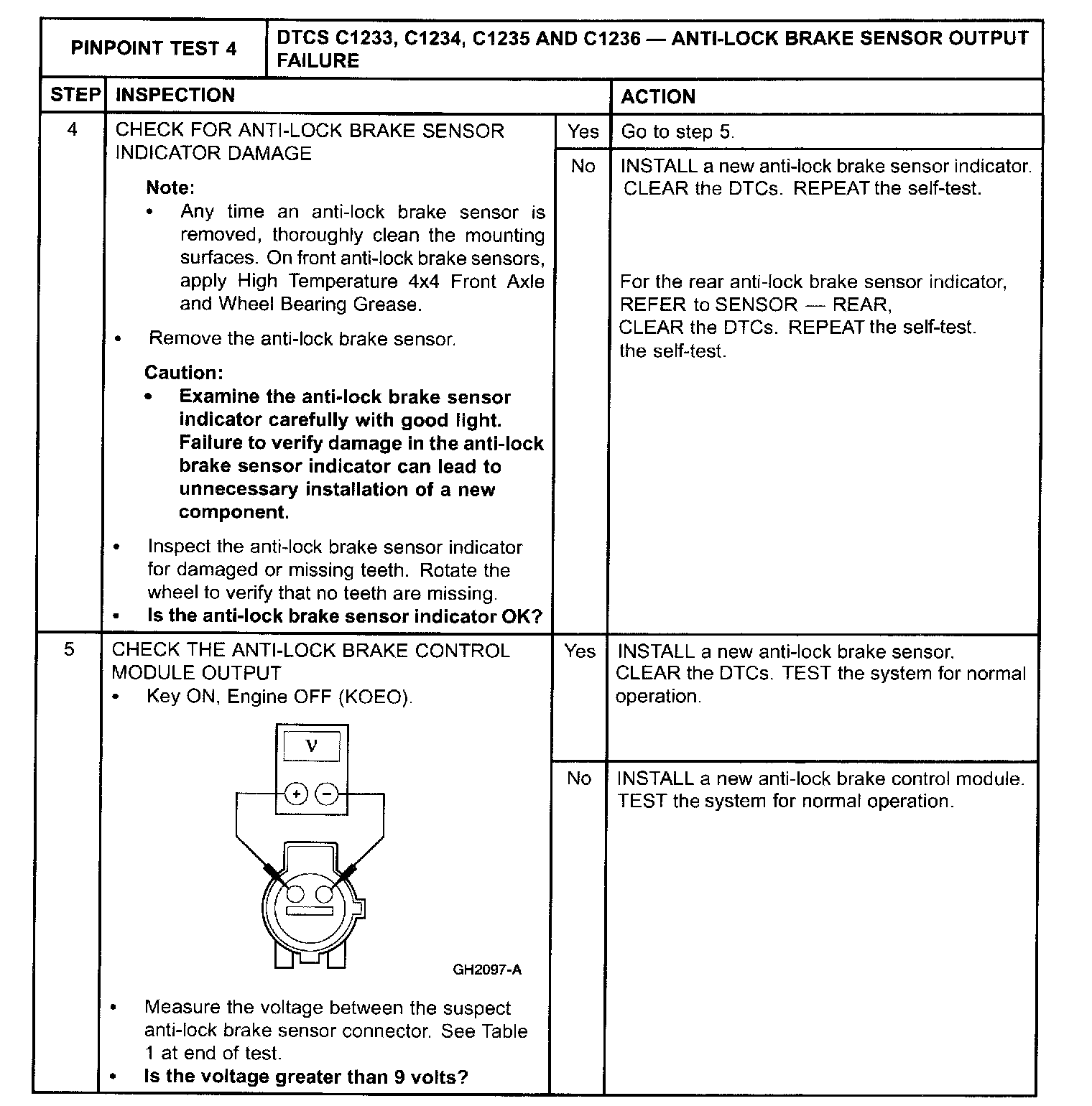

Test 3 Of 3:
Note: ^
Any time an anti-lock brake sensor is removed, thoroughly clean the mounting surfaces. On front anti-lock brake sensors, apply High-Temperature 4x4 Front Axle and Wheel Bearing Grease.
Table 1
