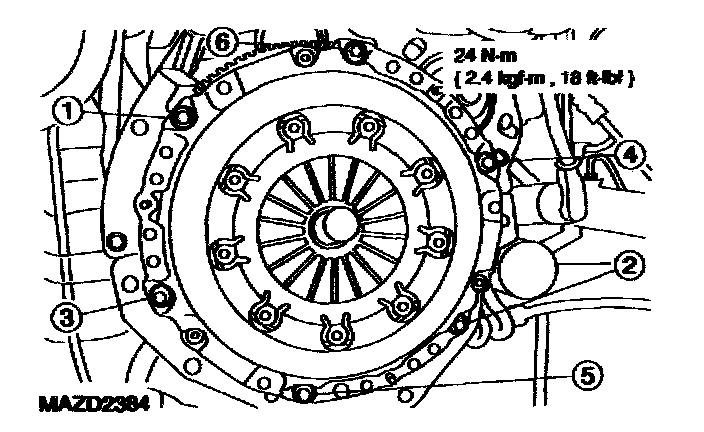

Pressure Plate
General Specifications Pressure plate diaphragm spring fingers
Maximum depth mm (in)
0.5 (0.020)
Maximum clearance mm (in)
0.5 (0.020)
Clutch pedal disengagement height mm (in)
59 (2.3)
Clutch pedal free play mm (in)
506-15.0 (0.22-0.59)
Clutch pedal height mm (in)
212-217 (8.35-8.54)
Pressure plate bolts
