Control Valve Body Outline

CONTROL VALVE BODY OUTLINE

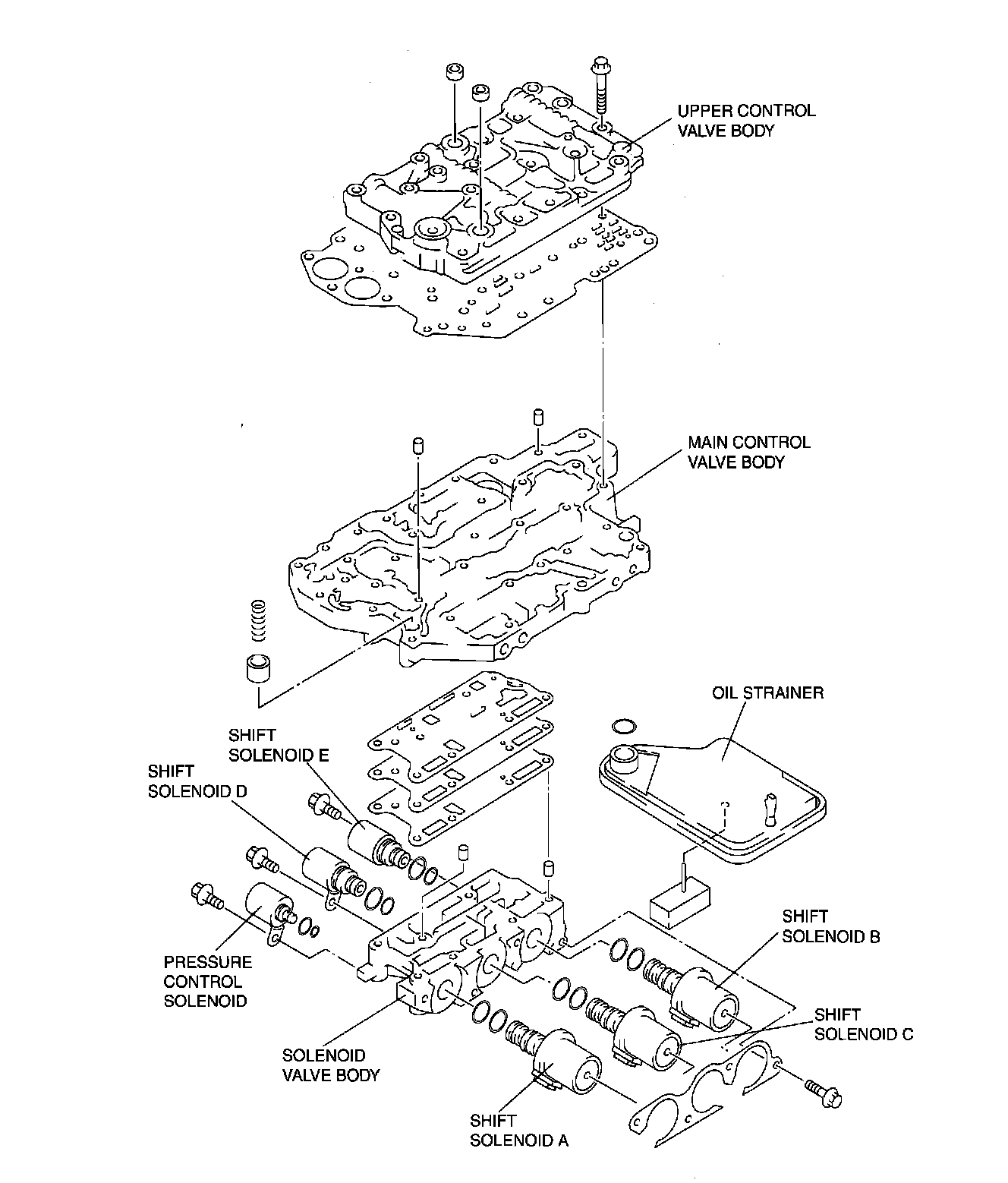

^ The control valve body is composed of three bodies: the upper control valve body, premain control valve body, and the solenoid control valve body.
^ Because the clutch engagement pressure is controlled electronically, the hydraulic circuits are simplified, the valve types are reduced, and the control valve body is miniaturized.
^ The nonwoven fabric oil strainer is installed in the control valve body to prevent contamination.
